| Place of Origin: | Jiangsu China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO CE SGS Or Other |
| Model Number: | DLC-050 |
| Minimum Order Quantity: | 1set |
| Price: | USD10500-45000 Per set |
| Packaging Details: | Wooden box, steel bracket, standard container |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50set per month |
| Material: | Carbon Steel SUS304 SUS316 | Voltage: | 380V 3 Phase 50hz Or According To Your Requirements |
|---|---|---|---|
| Capacity: | 2-200m3/hr | Purpose: | Wastewater Treatment Equipment To Remove TSS, Grease, Phosphorus And Nitrogen |
| MOQ: | 1set, Accept Customized | Brand: | DAGYEE |
| Certification: | ISO CE SGS Or Other | Project Operation Experience: | More Than 200 Sets |
| Highlight: | 200m3/H inclined plate clarifier,inclined plate clarifier,lamella gravity settler |
||

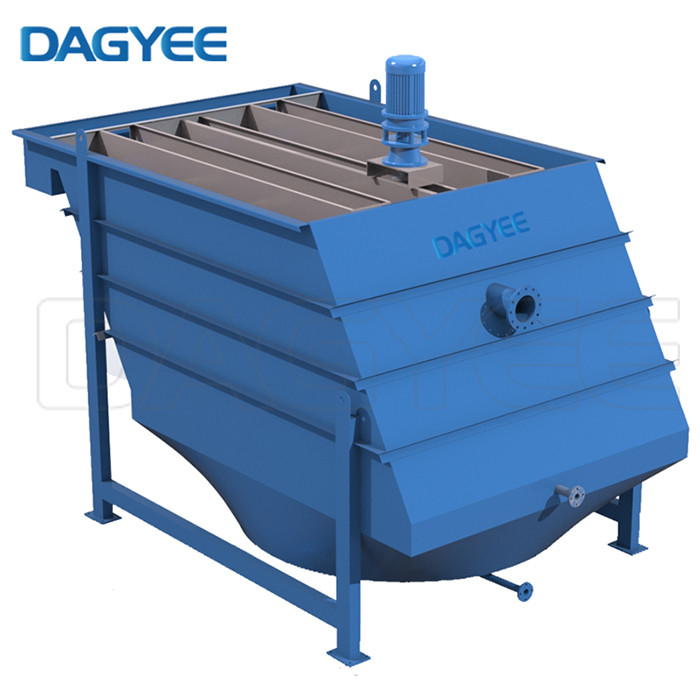

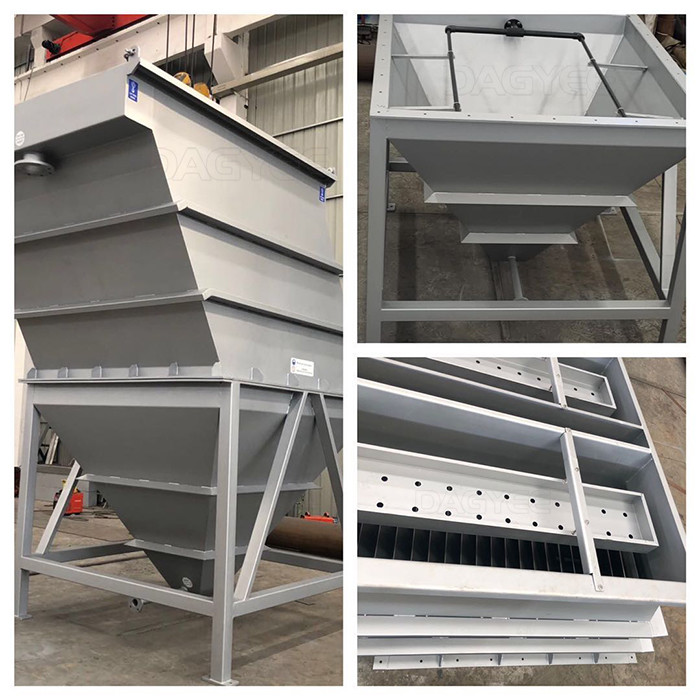

Dagyee Lamella clarifier is an efficient combined sedimentation tank, According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.
| DCL Model |
Capacities (m3/h) |
Piping Connections() | Physical Dimensions(m) | |||||
| Inlet(a) | Effluent(b) | Sludge(c) | Backwash(d) | L | W | H | ||
| DCL- | 5 | 80 | 80 | 50 | 50 | 2.55 | 1.6 | 2.9 |
| DCL- | 10 | 100 | 100 | 50 | 50 | 3.35 | 1.82 | 3 |
| DCL- | 15 | 100 | 100 | 50 | 50 | 3.35 | 2.02 | 3 |
| DCL- | 20 | 100 | 100 | 50 | 50 | 3.35 | 2.02 | 3 |
| DCL- | 30 | 150 | 150 | 50 | 50 | 4.2 | 2.22 | 3 |
| DCL- | 40 | 150 | 150 | 50 | 50 | 4 | 2.8 | 3 |
| DCL- | 50 | 200 | 200 | 50 | 50 | 4.65 | 2.82 | 3 |
| DCL- | 60 | 200 | 200 | 50 | 50 | 4.7 | 3 | 3 |
| DCL- | 70 | 250 | 200 | 50 | 50 | 6.4 | 2.6 | 3 |
| DCL- | 80 | 250 | 200 | 50 | 50 | 6.8 | 2.82 | 3 |
| DCL- | 100 | 250 | 250 | 50 | 50 | 7.05 | 3.02 | 3 |
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper. The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused.
