| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO CE SGS |
| Model Number: | DL-302 |
| Minimum Order Quantity: | 1set |
| Price: | USD4500-10500 Per set |
| Packaging Details: | Wooden box, steel frame ,Standard container |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets |
| Material: | SUS304,SUS316, Stainless Steel | Capacity: | 3-300KG/Hr |
|---|---|---|---|
| Service Life: | >10year | After-sales Service Provided:: | Video Technical Support, Field Installation |
| Highlight: | 300KG/H sludge dehydrator,3KG/H sludge dehydrator,300KG/H Screw Press Dehydrator |
||

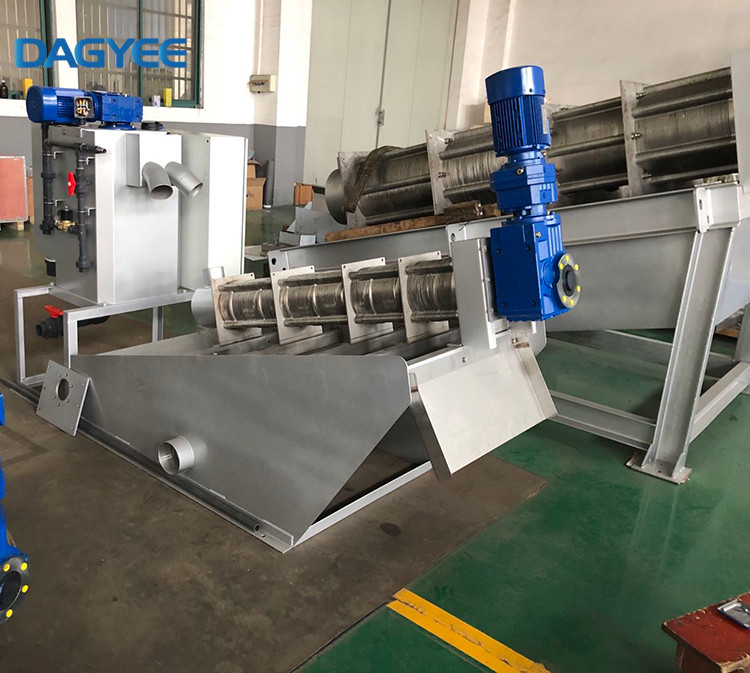

Dewatering screw press separate liquids from solids. It is a slow-moving device that can dewater sludge by gravity. Screw presses are used for materials that are difficult to dewater, including materials that are stacked together. Screw presses use a filtration system to separate liquids from solid materials. The liquid is collected as it flows through a screen or filter and can be reused.
DAGYEE SCREW PRESS provides unique, cost effective solution for dewatering of Industrial and Municipal Process Equipment Packages.
The device is designed to dewater the Primary Sludge and ƒor Secondary Sludge dewater sludge from a dry content of 0.8−4% to 15−20%.

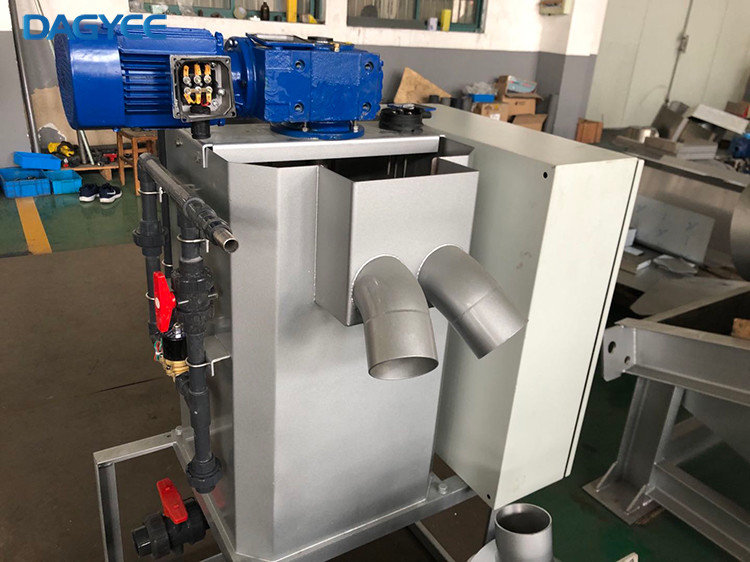

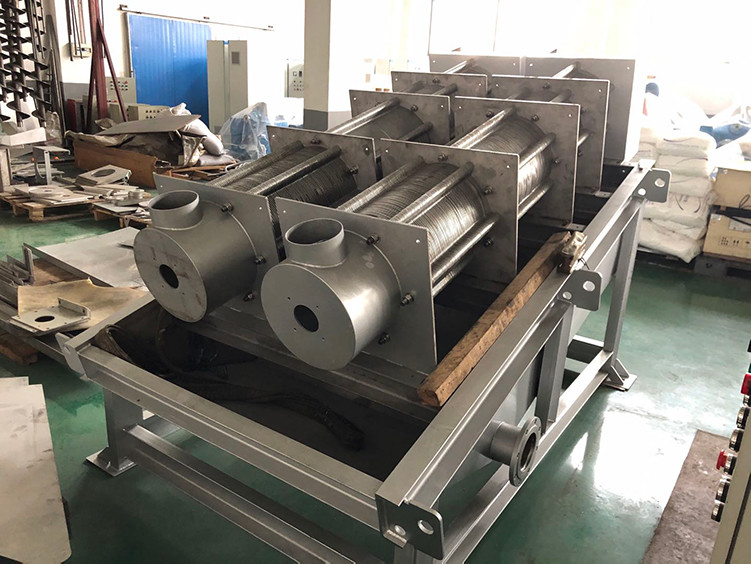

Sludge feeder via pump or inlet hopper into polymer addition is required for flocculation of the sludge and for best capture rate. And then via cylindrical microns wedge wire drum. A controlled variable speed shafted auger transports the solids towards the drum discharge. The auger shaft is tapered with a smaller diameter on the inlet side and a larger diameter on the discharge side.
Consequently, the space between the shaft and drum reduces as the solids reach the discharge side. The counter pressure of the
cone maximizes the dewatering effect.
Automatic operation
High quality and Reliability
Continuous functioning
Quick and easy installation
Low energy consumption
Innovative washing System
Dewatering and discharge in one equipment
Manufactured in Stainless Steel AISI 304 and 316(L)
Easy removable covers for hygienic inspection
Low and easy maintenance
