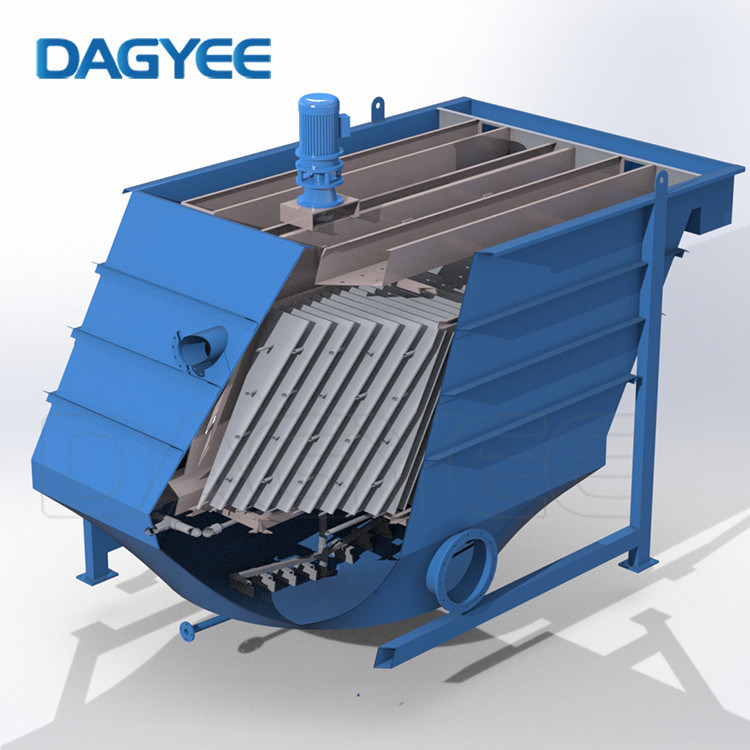

5m3/H Lamella Clarifier

DCL-020 Loading Rates Are 5 To 15m3/H Separation Of Precipitation Lamella Clarifier

What Is Lamella Clarifier

Dagyee loading rates are 5 to 15m3/h separation of precipitation lamella clarifier is an efficient combined sedimentation tank, According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.

Lamella Clarifier Equipment Specifications

Range Of Applications

• Mining
• Metal finishing
• Treat groundwater
• Industrial process water
• Backwash from sand filters
• Pre-treatment ahead of membrane filters
• Municipal wastewater
• TSS-solids particulate removal
• Dissolved solids and metals precipitation
• Leachate clarification
• Cooling tower water clarification
• Surface/raw water treatment
• Water recycling/reuse

Advantages Of Lamella Clarifier

• Smaller footprint
• large effective settling area
• Improved overflow rates 2 to 4 times
• Can be used for a long time
• Normal use without clogging, Even clogging is provided with backwash device
• Less possibility for injury

Available Designs Of Lamella Clarifier

• Inclined plates spacing of 80-100 mm
• Inclined plate length 1–2 m
• Plate pitches between 50° and 60°
• allow for self-cleaning, pitches require backwash
• Typical loading rates are 5 to 15m/h.
• Set up scraper for easy drainage

Dagyee Lamella Clarifier Focus On More Details
