| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-015 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Condition: | New | Brand Name: | Dagyee |
|---|---|---|---|
| Material: | Steel Bracket, Q235B 304 316 | Weight: | 2200 |
| Capacity: | 15m3/h | Color: | Customizable |
| Warranty: | 1 Year | Type: | Automatic |
| Highlight: | 15m3/h dissolved air flotation unit,Dagyee dissolved air flotation unit,15m3/h DAF clarifier |
||

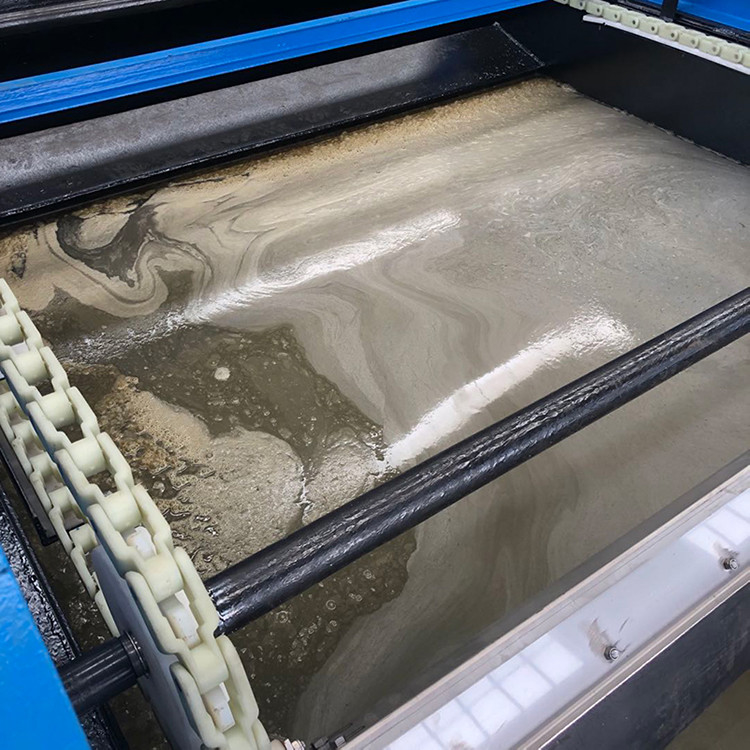

Oil Water Separator Wastewater Plant Treatment DAF Dissolved Air Flotation is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.

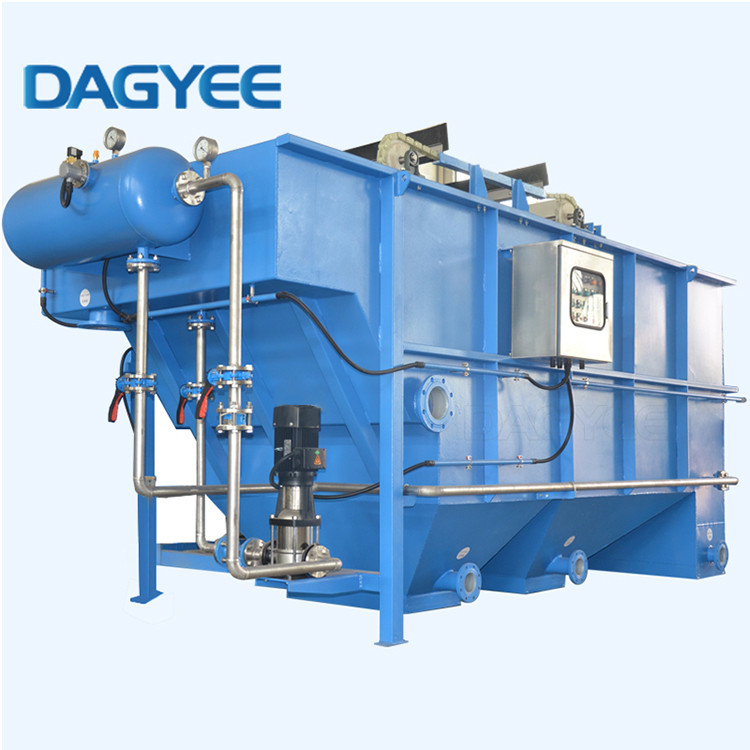

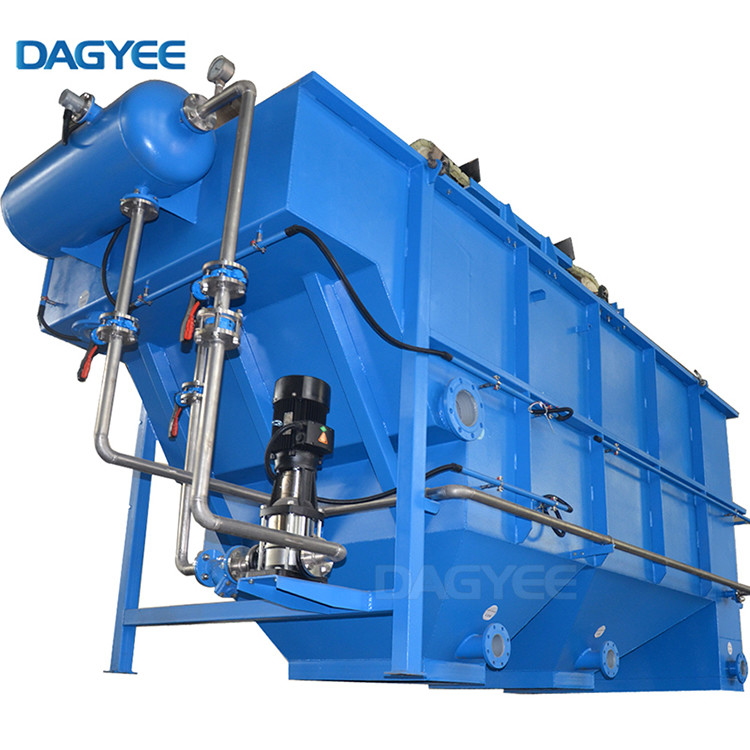

15m3/hr Dissolved Air Flotation Specification
| Parameter | Units | DAF 015 |
| DAF Flow Rate | m3/hr | 15 |
| Total Inlet Solids | mg/L | 500-6500 |
| FOG Removal | % | 80~97 (Application Dependent) |
| TSS Removal | % | 60~99 (Application Dependent) |
| COD Removal | % | 20~80 (Application Dependent) |
| BOD Removal | % | 20~80 (Application Dependent) |
| Power Consumption | kW | 3.15 |
| Footprint | m | 5.6*2.9 |
| Inlet | in | 5 |
| outlet | in | 4 |
| Sludge outlet | in | 6 |
| Vent | in | 4 |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
| Skimmer Mounted Plant | ✓ | |
| Feed Pump | ✓ | |
| Micro bubble generator | ✓ | |
| Recycle clean water system | ✓ | |
| Maintenance platform, ladder | ✓ | |
| Pre-Treatment | o | |
| Control System | ✓ | |
| Control System with PLC | o | |
| Air Compressor | ✓ | |
| Treated Water Recycling for Saturator | o | |
| Coagulation, flocculation reaction device | o | |
| Chemical powder dissolving dosing device | o | |
