| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DCL-010 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Material: | SS316 | Weight: | 1800 |
|---|---|---|---|
| Size: | 3.35*1.82*3 | Power: | 0.55 |
| Capacity:: | 10M3/hr | Application: | Wastewater Treatment |
| Type: | Automatic | Function: | Efficient Sedimentation Tank |
| Highlight: | SS316 Lamella Clarifier,10m3/h Lamella Clarifier,SS316 plate settler clarifier |
||

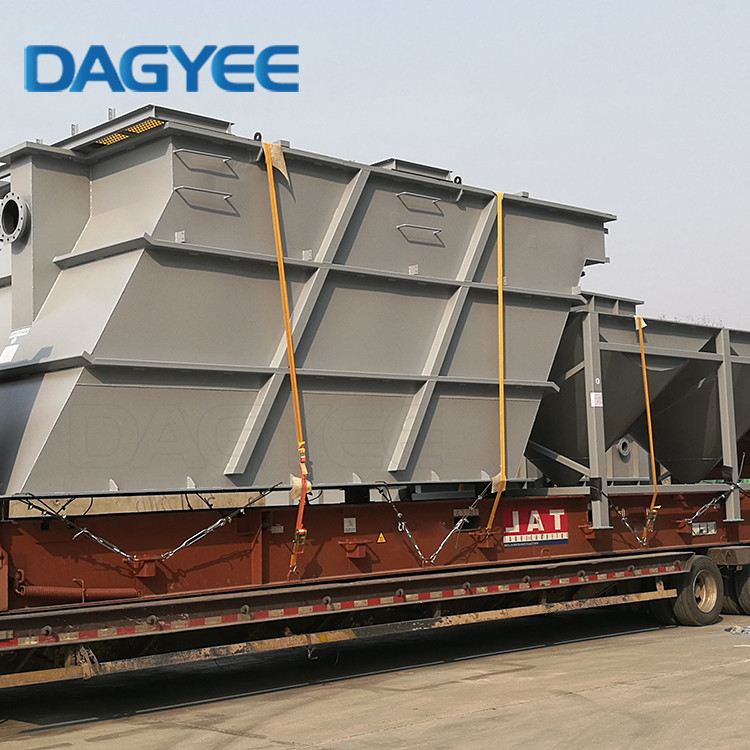

DCL-010 SS316 Automatic Processing Flash Mixed Polymer Flocculant Lamella
What Is Lamella Clarifier
The liquid flows upward through the unit, causing it to settle on the inclined parallel plate. The solid settles on the plate and slides into the funnel at the bottom of the device.
Thin-plate flat clarifiers are available in various independent sizes, as well as plate packaging components that can be installed in new or existing concrete tanks.
Lamella Clarifier is fitted with a plate pack to maximise the effective settling area of the unit and a conical sludge hopper in a small footprint. Lamella clarifiers are ideal for applications where the solid loading is variable and solid sizing is fine. Lamella Clarifiers are considered to be one of the best options for pre-treatment ahead of more sophisticated treatment technologies because of their ability to remove a significant solids loading. The MAK Water Lamella Clarifier can be integrated into a treatment process or as a stand-alone unit. Typical applications are for separation of grit or metal removal or any other application where the solids have a specific gravity >1.0.
10M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-010 |
| Flow Rate | m3/h | 0-10 |
| Effective Settling Area | m2 | 10 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 3.35*1.82*3 |
| Inlet | Inch | 4 |
| Effluent | Inch | 4 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 1800 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Range Of Applications
Features Of Lamella Clarifier
Available Designs Of Lamella Clarifier
Dagyee Lamella Clarifier Focus On More Details
