| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-060 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Product Name: | Lamella Clarifier | Material: | Standard Container |
|---|---|---|---|
| Weight: | 2500-15000 | Condition: | New |
| Power: | 0.55KW | Application: | Wastewater Treatment |
| Type: | Automatic | Function: | Efficient Sedimentation Tank |
| Highlight: | PP PVC Lamella Clarifier,60m3/h Lamella Clarifier,0.55KW lamella plate clarifier |
||

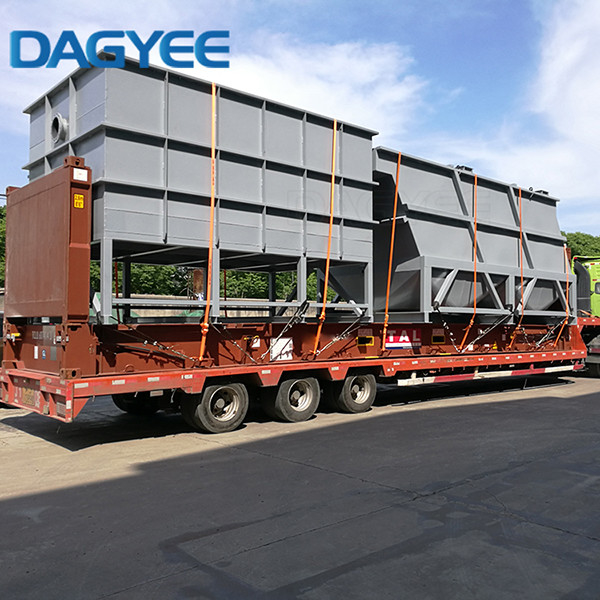

DCL-060 Wooden Package Pp Pvc Lamella Plate Clarifier Gravity Settling High Separation Efficiency
The size of the gravity settler mentioned in the introduction is determined according to two parameters, namely the upflow rate of the liquid and the settling area. Therefore, under the same conditions, the effective area of the clarifier and the flake settler are the same. In the clarifier, the settling area is the surface of the water tank, and in the flake settler, the settling area is the total area of the inclined plate projected on the horizontal surface.
60M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-060 |
| Flow Rate | m3/h | 0-60 |
| Effective Settling Area | m2 | 60 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 4.7*3*3 |
| Inlet | Inch | 8 |
| Effluent | Inch | 8 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 4800 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
The Description Of Lamella Plate Clarifier
Inclined plate sediment water purifier is format by install 60° dip angle inclined tube above the sludge suspended layer, to make the suspended solids or floc alum flower by dosing flocculant accumulate into thin sludge later in inclined tube downside superficial area, slide back to sludge suspended layer rely on gravity, then settling in sludge collecting hopper, discharge into sludge tank by sludge pipe for separate treatment or comprehensive utilization. The supernatant fluid gradually rise to water collecting pipe discharge or reuse.
Range Of Applications
Features Of Lamella Clarifier
Dagyee Lamella Clarifier Focus On More Details
