| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DCL-005 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Material: | Standard Container | Weight: | 1500 |
|---|---|---|---|
| Size: | 2.55*1.6*2.9 | Power: | 0.55 |
| Usage: | Automatic Operation | Padding: | PP/PVC/FRP |
| Type: | Lamella Sheet | Color: | Customerized |
| Highlight: | 5m3/H Small Lamella Clarifier,Small Lamella Clarifier,5m3/H Inclined Plate |
||

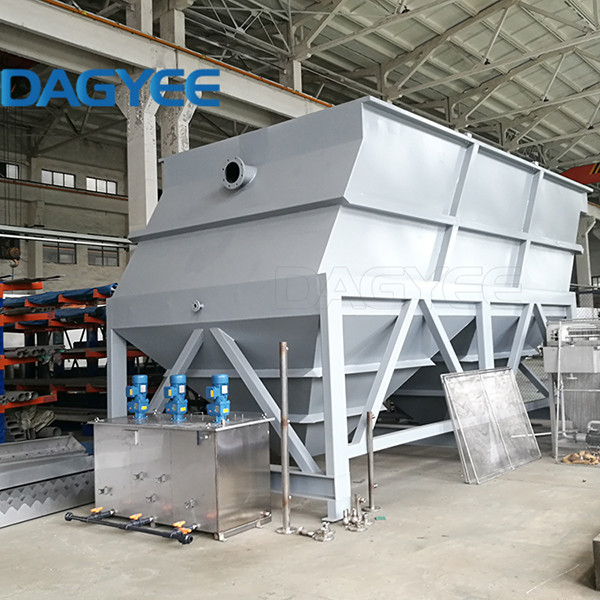

DCL-005 Flocculator Coagulator Standard seaworthy package Automatic Lamella Clarifier
Gravity Settler is a pre-assembled, modular, high rate inclined plate settler that uses a counter-current flow principle for effective solids removal. The inclined plate concept provides an effective settling area that is equal to the field of each plate as projected onto a horizontal surface. Using the standard 2″ plate spacing and 55°-60°, up to 10 ft² of projected area become available for each square foot of land area.
5M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-005 |
| Flow Rate | m3/h | 0-5 |
| Effective Settling Area | m2 | 5 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 2.55*1.6*2.9 |
| Inlet | Inch | 3 |
| Effluent | Inch | 3 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 1500 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
