| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-5-30'' |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Product Name: | Cartridge Water Filter Housing |
|---|---|---|---|
| Raw Material: | Stainless Steel Boards | Filtration Accuracy: | 0.1-200UM |
| Type: | With A Clamp | Usage: | Water Purification Plant |
| Keywords: | RO Water Filtration | Applicable Field: | Beveragepharmaceutical |
| Highlight: | 0.1um cartridge water filter housing,200um cartridge water filter housing,0.1um stainless steel filter housing |
||

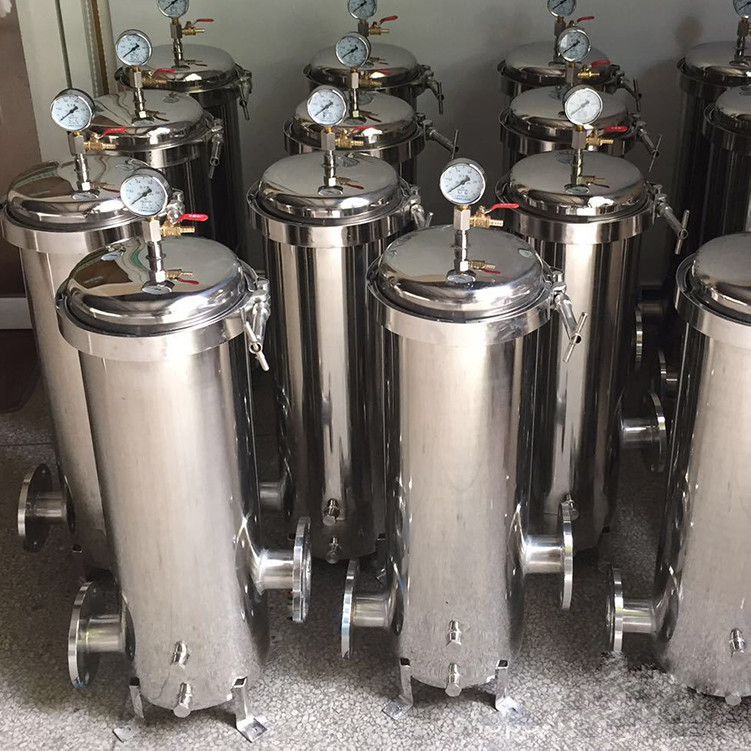

Dagyee DYG-5-30'' Small And Accurate Precision 5 Cartridges Filter Housings 30'' With Clamp
DAGYEE Cartridge Housing
Multi-barrel stainless steel liquid filter housing is a high-quality solution for high-volume filtration. Our multi-cartridge housing can accommodate 5 to 22 standard 30-inch and 40-inch filter elements, and the liquid filtration flow rate is up to 65 m3/hr.
Commercial and industrial filter housing liquid containers are ideal for chemical systems, commercial RO and membrane water treatment systems for pre-filtration, high-purity water, post-filtration, food and beverage, industrial facilities, etc.
We always have a large stock of stainless steel liquid housings for commercial and industrial use. Most of the models shown are available from stock immediately.
5 Cartridges Filter Housings 30'' With Clamp Specification
| Model | DYG-5-30'' |
| Material | SUS304, SUS316 |
| Applicable Filter Cartridges | Industrial PP;String Wound;304;316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | With a clamp /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219mm*1100mm |
| Max. Flow Rate (m3 /h) | 7.5 |
| Max. Operating Conditions (bar/°C) | 6/150 |
| Inlet/Outlet (BSP female) | 1 1/2'' |
| Length of Filter Cartridge | 30'' |
| No. of Filter Cartridges | 5 |
| Max. Cartridge Outside Diameter (mm) | Ø65 |
DAGYEE Cartridge Housing Feature
DAGYEE Cartridge Housing Application
