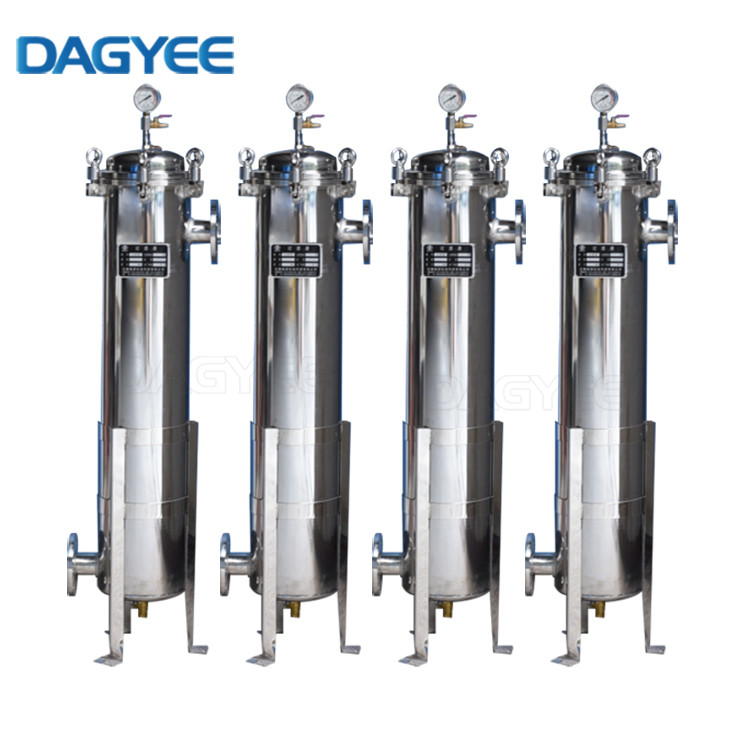

GMP High Precision 0.1um SS Bag Filter Housing

DYG-1-1S High Precision And Safety Stainless Steel Single Bag Filter Housings

DAGYEE Cartridge Housing

Cartridge filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it’s used in the acid and other special occasions,it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.

Stainless Steel Single Bag Filter Housings Specification

DAGYEE Cartridge Housing Feature

• Adopt to mechanical polishing,material liquid touch area Ra<0.4um,absolute health level of polishing , can select all series electrolytic polishing.
• It can increase the vent hole and dreain hole diameter Effectively , and can connect 8mm pipe.
• Drain valve independent from the exhaust valve thread joint sets and pagoda,operating is more convenient.
• Adopt to hing segmented clamp ,20% higher than an ordinary card hoop pressure,maximum pressure up to 1.0Mpa.
• Supporting feet adopt to strengthening threaded,not easy sliding teeth;Install a adjustable nut at the bottom of the leg , filter's height can be adjustment .

DAGYEE Cartridge Housing Application

• Widely used in UF, RO, EDI security filtration and the end-filtration.
• Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
• Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.
• Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
• Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.
• Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.
• The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.
• Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.
