| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT4165 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | PP | Capacity: | 4000 |
| Usage: | Pure Water Process | Type: | Automatic |
| Application: | Wastewater Treatment | MOQ: | 1 Pcs |
| Highlight: | 4000L Chemical Dosing Equipment,3.2kw Chemical Dosing Equipment,4000L chemical dosing system water treatment plant |
||

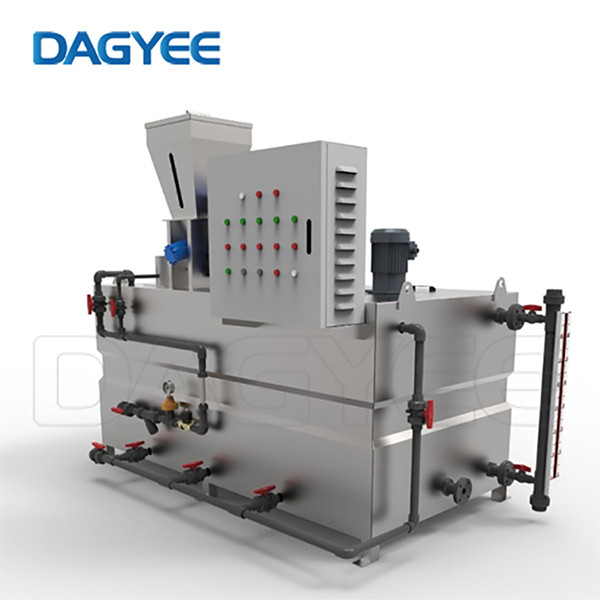

Dagyee DT4165 4000 Capacity Mixer Chamber Chemical Dosing System For Rejuvenating Mature Fields
DAGYEE all in one polymer preparation system is used for the dosing of liquid powder flocculants. It can be widely used in water treatment applications in wastewater, papermaking, chemical, petrochemical and mineral processing industries.
This device is an automatic and continuous powder dispensing and dosing system.The dry powder enters the premix and water from the screw at the bottom of the hopper for premix, and the wet material enters the mixing tank for dilution and mixing, and is prepared according to the concentration required by the user.
The preparation solution goes from the preparation tank to the curing tank and then into the storage tank. When the liquid level of the storage tank is at a high level, the preparation process will automatically stop, and when the solution drops to a low level, the batching process will automatically start.Agitator is set in both preparation tank and curing tank to ensure the dilution and curing of reagents.The prepared flow rate and concentration can be determined by adjusting the inlet flow rate and the rotating speed of the screw shaft.
| Model | DT4165 |
| Capacity(L/h) | 4000 |
| Power(kw) | 3.2 |
| Powder dosage(kg/h) | 3.5-4.5 |
| Water inlet flow(m3/h) | 2.4-12 |
| L(mm) | 2780 |
| B(mm) | 1440 |
| H(mm) | 2250 |
| L1(mm) | 2700 |
| B1(mm) | 1390 |
| Net weight(kg) | 1050 |
