| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-020 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Material: | Standard Container | Product Name: | Lamella Clarifier |
|---|---|---|---|
| Weight: | 2300 | Size: | 3.35*2.22*3 |
| Power: | 0.55KW | Usage: | Industrial Process Water |
| Color: | Customerized | Keywords: | Inclined Plate |
| Highlight: | 20m3/h lamella gravity settler,ISO9001 lamella gravity settler,20m3/h plate settlers water treatment |
||
Dagyee DCL-020 Lamella Clarifiers Water Treatment Graver Water Systems
What Is Lamella Clarifier
The liquid flows upward through the unit, causing it to settle on the inclined parallel plate. The solid settles on the plate and slides into the funnel at the bottom of the device.
Thin-plate flat clarifiers are available in various independent sizes, as well as plate packaging components that can be installed in new or existing concrete tanks.
The stand-alone unit also has a variety of configurations, allowing flocculation before the unit and condensing the sludge into one body in the sludge removal section.
Lamella Clarifier Equipment Specifications
| Parameter | Units | DCL-020 |
| Flow Rate | m3/h | 0-20 |
| Effective Settling Area | m2 | 20 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 3.35*2.22*3 |
| Inlet | Inch | 4 |
| Effluent | Inch | 4 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 2300 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Range Of Applications
Advantages Of Lamella Clarifier
Available Designs Of Lamella Clarifier

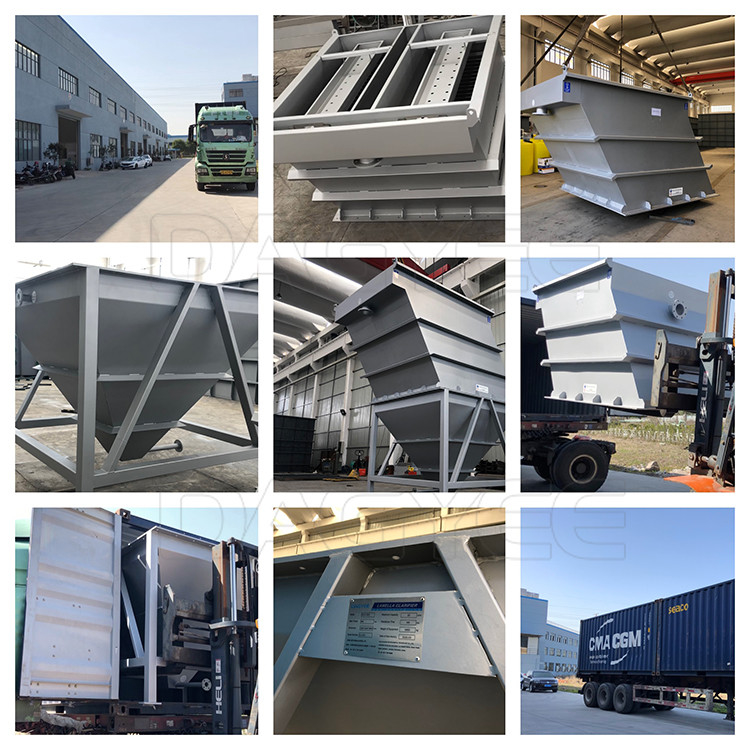

Dagyee Lamella Clarifier Focus On More Details
