| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-070 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Product Name: | Lamella Clarifier | Brand Name: | Dagyee |
|---|---|---|---|
| Weight: | 6500 | Function: | Water Purification Plant |
| Dimensions: | 6.4*2.6*3 | Application: | Waste Water Treatment |
| Capacity: | 70M3/hr | Warranty: | 1 Year |
| Highlight: | High Hydraulic Load Lamella Clarifier,Dagyee Lamella Clarifier,70m3/h lamella water treatment |
||

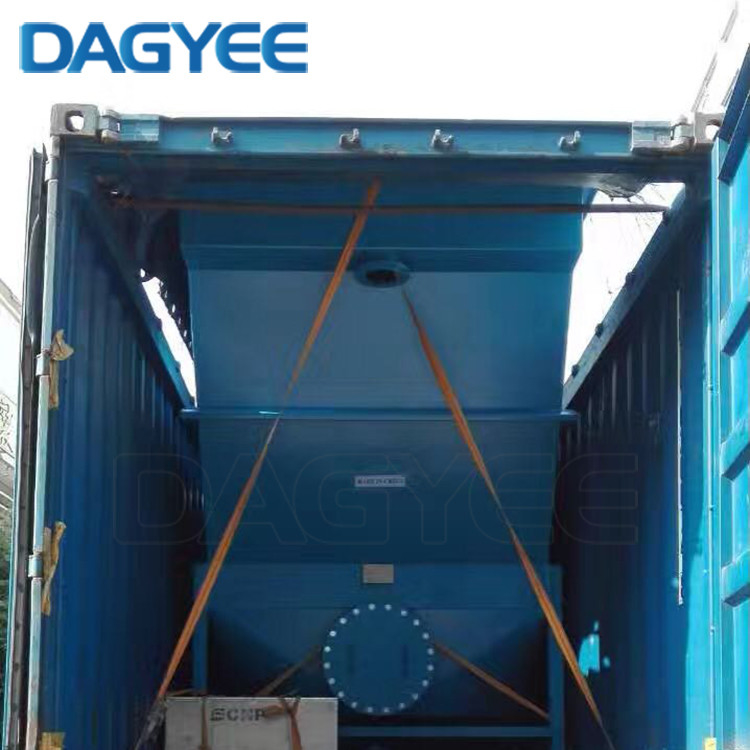

Dagyee DCL-070 Stainless Steel High Hydraulic Load With Skimmer Lamella Clarifier Water Treatment
What Is Lamella Clarifier
Wastewater flows into the Clarifier at the top of the tank. Depending to help on the type of Wastewater Application you need, Flocculant and/or coagulants are added to help settle out the solids. The wastewater is fed via baffles to the bottom of the unit. This is where the settling process begins. Water flows up through the plates while the solids settle to the bottom of the clarifier.
70M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-070 |
| Flow Rate | m3/h | 0-70 |
| Effective Settling Area | m2 | 70 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 6.4*2.6*3 |
| Inlet | Inch | 10 |
| Effluent | Inch | 8 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 6500 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Range Of Applications
Features Of Lamella Clarifier
HOW Does Lamella Clarifier Work
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper.
The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused.
Dagyee Lamella Clarifier Focus On More Details
