What Is Lamella Clarifier

Inclined Plate Lamella Clarifiers are designed to remove solids from water. They are used in a wide variety of Wastewater Treatment Applications, including Metal Finishing Wastewater Treatment. The Total Suspended Solids TSS in the wastewater will naturally settle over time due to gravity, but this process can be sped up and improved by having Inclined Plates. The inclined plates provide a large projected settling area in a compact form. This technology is greatly beneficial compared to a cone bottom tank or a circular clarifier because of the space savings, settling efficiencies, and the reduced cost of construction.

50M3/hr Lamella Clarifier Specifications

Range Of Applications

•  Primary clarification of wastewater streams
•  Backwash water recovery
•  Industrial water treatment systems
•  Potable water treatment systems
•  River water abstraction clarification
•  Wash water recovery and recirculation systems
•  Wet scrubber and slaking effluent treatment

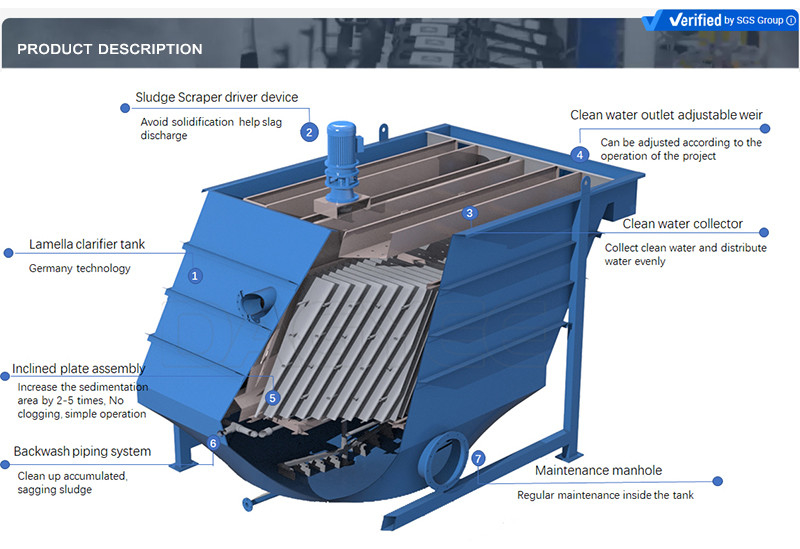

Features Of Lamella Clarifier

• Structural steel support legs
• Epoxy painted carbon steel tank
• Individually removable FRP
• plates
• Adjustable effluent weir plates
• Standard units can be
• manufactured for flows from 5
• gpm to 3000 gpm and above in
• a single above-grade tank
• One-piece prefabricated units
• are available with up to 1000 sqft
• of effective settling area
• Single tank construction with
• integral flash mix/flocculation
• compartments for smaller units
• Multiple sample connections​

Advantages

• Smaller footprint
• Large effective settling area
• Improved overflow rates 2 to 4 times
• Long time to be use
• Normal use without clogging
• Even clogging is provided with backwash device Less possibility for injury

Availbailable Designs

• Inclined plate length 1–2 m
• Plate pitches between 50° and 60°
• Allow for self-cleaning, pitches require backwash
• Loading rates are 5 to 15m/h
• Set up scraper for easy drainage.

Dagyee Lamella Clarifier Focus On More Details
