| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-1-1S |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Name: | Sanitary Filter Housing |
|---|---|---|---|
| Filtration Accuracy: | 0.1-200UM | Connection Type: | BSP Female |
| Dimensions: | 219*1300 | Surface Treatment: | Mirror Reflection |
| No. Of Filter Bag: | 1 | Warranty: | 1 Year |
| Highlight: | 36m3/H industrial bag filter housing,200um industrial bag filter housing,36m3/H single bag filter housing |
||

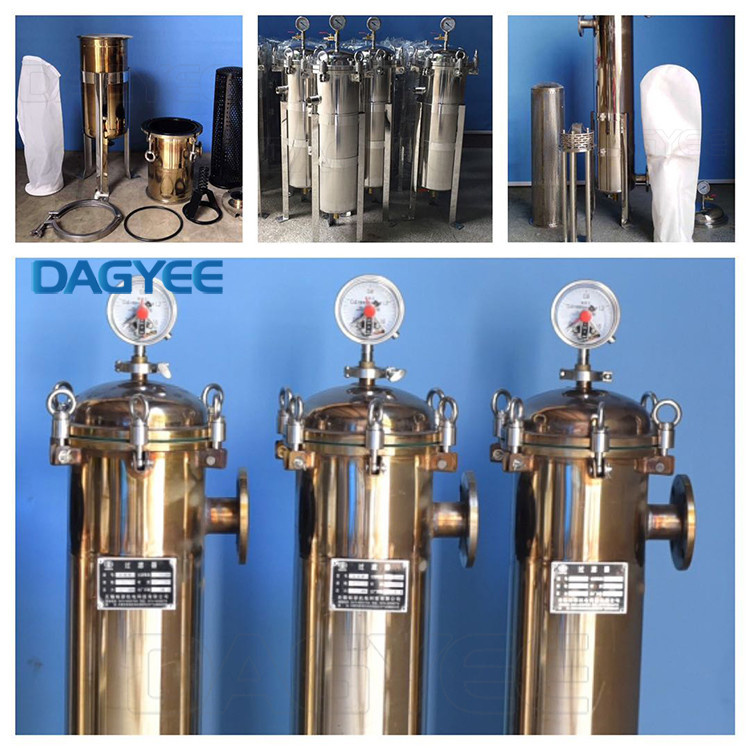

DYG-1-2S 36m3 /H Stainless Steel Multi Single Bag Filter Housings
DAGYEE Cartridge Housing
SS Filter Housing consists of SUS316L or SUS304, and take filter cartridge as its element. The SS filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology & pharmacy, beer & beverage, chemical, and water treatment etc.
Stainless Steel Single Bag Filter Housings Specification
| Model | DYG-1-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø219*1300 |
| Max. Flow Rate (m3 /h) | 36 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 2'' flange |
| Length of Filter bag(mm) | 810 |
| No. of Filter bag | 1 |
| Max. bag Outside Diameter(mm) | Ø180 |
DAGYEE Cartridge Housing Feature
DAGYEE Cartridge Housing Application
