| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | IRD6-1500 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 1000 Kg |
| Size: | 2500*1350*1700 | Power: | 0.75 |
| Core Components: | Motor | Product Keywords: | Rotary Drum Screen |
| Highlight: | SUS316 rotary drum screen filter,WWTP rotary drum screen filter,SUS316 screening drum |
||

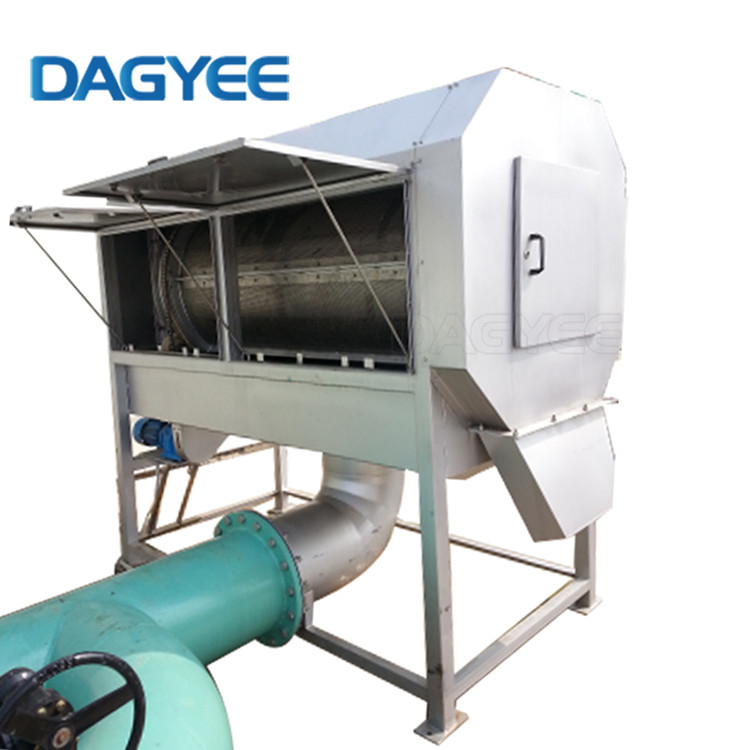

Dagyee IRD6-1500 SUS316 WWTP Metallurgical Water Filtration Micro Rotary Drum Screen Filter
What Is External Rotary Drum Screen
Rotating Drum Screen (Internally Fed Rotary Drum Screen) is a device that can continuously and effectively screen out solid suspended solids in water. Mainly used in sewage pretreatment or industrial sieving process. In some sewage treatments, the sieved sewage can remove 30% to 60% of organic or inorganic suspended solids, greatly reducing the processing load of subsequent processes.
Mechanical pretreatment is required for both municipal and industrial wastewater in order to remove coarse materials and separate floating, settling and suspended solids.
IRD6-1500 Type Rotating Drum Screen Technical Table
| DDS Model | IRD6-1500 |
| Drum size mm | Ø600x1500 |
| Dimensions L*W*H(mm) | 2500*1350*1700 |
| Power | 0.75 |
| Weight(Kg) | 1000 |
| Capacities(m3/h)1,2,3(mm) | 45/70/85 |
| Sludge height (mm) | 500 |
Technical Table Of All Models Of Rotary Drum Screen
| DDS Model |
Drum size | Physical Dimensions(mm) | Power | Weight (Kg) |
Capacities(m3/h) | Sludge height | ||||
| mm | L | W | H | KW | 1mm | 2mm | 3mm | mm | ||
| IRD6-900 | Ø600x900 | 1900 | 1350 | 1700 | 0.55 | 630 | 15 | 25 | 30 | 500 |
| IRD6-1200 | Ø600x1200 | 2200 | 1350 | 1700 | 0.55 | 820 | 30 | 50 | 60 | 500 |
| IRD6-1500 | Ø600x1500 | 2500 | 1350 | 1700 | 0.75 | 1000 | 45 | 70 | 85 | 500 |
| IRD6-1800 | Ø600x1800 | 2800 | 1350 | 1700 | 0.75 | 1160 | 60 | 100 | 120 | 500 |
| IRD6-2100 | Ø600x2100 | 3100 | 1350 | 1700 | 1.1 | 1300 | 80 | 135 | 170 | 500 |
| IRD9-1200 | Ø900x1200 | 2300 | 1600 | 2200 | 1.1 | 1200 | 40 | 70 | 85 | 600 |
| IRD9-1800 | Ø900x1800 | 2900 | 1600 | 2200 | 1.1 | 1470 | 80 | 135 | 170 | 600 |
| IRD9-2500 | Ø900x2500 | 3600 | 1600 | 2200 | 1.5 | 1800 | 120 | 200 | 250 | 600 |
| IRD9-3000 | Ø900x3000 | 4100 | 1600 | 2200 | 1.5 | 2100 | 160 | 270 | 350 | 600 |
How Does External Rotary Drum Screen Work
The discharge to be treated enters through the shaped wall located outside the screen body,evenly distributed by the overflow channel, and overflows on the rotary drum filter. Solids will remain on the rotary drum surface as the drum rotates, and the effluent entering through the screen will perform self cleaning function when it passes through the bottom of the rotary drum again. After passing through the external scraper, the solid is detached from the rotary drum.
External Rotary Drum Screen Features
