| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | IRD6-2100 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 1160 Kg |
| Size: | 3100*1350*1700 | Drum Size Mm: | 600x2100 |
| Sludge Height: | 500 | Product Keywords: | Rotary Drum Screen |
| Highlight: | 500mm Rotating Drum Screen,Metallurgical Rotating Drum Screen,500mm rotating sieve drum |
||

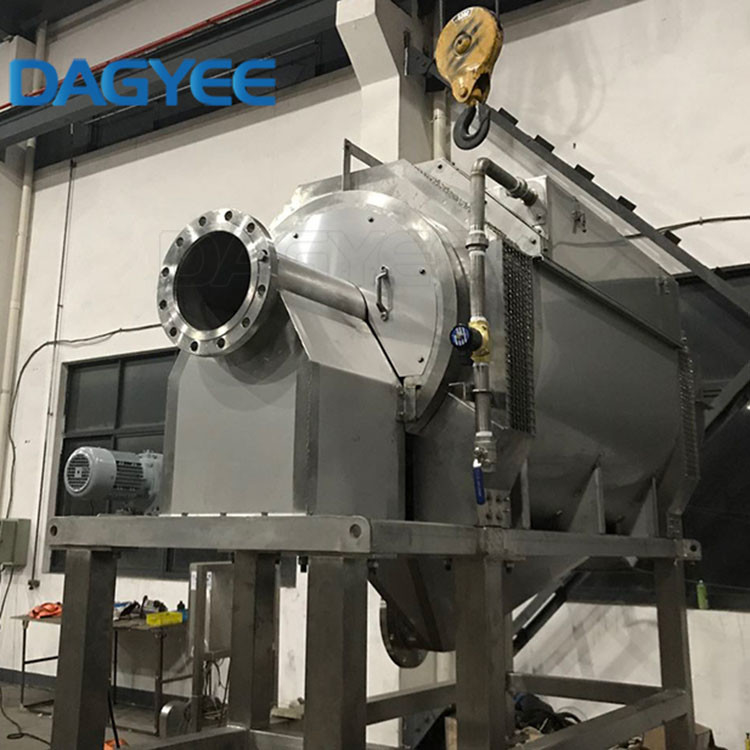

Dagyee IRD6-2100 Metallurgical Water Filtration Soil Screener Vibrating Screens Drum Screen
Dagyee drum screens are a guaranteed safe investment with absolute reliability in operation, long life and low energy consumption. The drum screen has proven itself superior to other equipment for certain applications and in addition saves the end user a great deal of money.
In many cases, wastewater quality is adequate for direct feeding into receiving water, however authorities do not permit release of visible suspended solids. Fine screening with our drum screens in the pump station can remove all visible particles and up to 50% of all settleable solids.
IRD6-2100 Type Rotating Drum Screen Technical Table
| DDS Model | IRD6-2100 |
| Drum size mm | Ø600x2100 |
| Dimensions L*W*H(mm) | 3100*1350*1700 |
| Power | 1.1 |
| Weight(Kg) | 1300 |
| Capacities(m3/h)1,2,3(mm) | 80/135/170 |
| Sludge height (mm) | 500 |
Technical Table Of All Models Of Rotary Drum Screen
| DDS Model |
Drum size | Physical Dimensions(mm) | Power | Weight (Kg) |
Capacities(m3/h) | Sludge height | ||||
| mm | L | W | H | KW | 1mm | 2mm | 3mm | mm | ||
| IRD6-900 | Ø600x900 | 1900 | 1350 | 1700 | 0.55 | 630 | 15 | 25 | 30 | 500 |
| IRD6-1200 | Ø600x1200 | 2200 | 1350 | 1700 | 0.55 | 820 | 30 | 50 | 60 | 500 |
| IRD6-1500 | Ø600x1500 | 2500 | 1350 | 1700 | 0.75 | 1000 | 45 | 70 | 85 | 500 |
| IRD6-1800 | Ø600x1800 | 2800 | 1350 | 1700 | 0.75 | 1160 | 60 | 100 | 120 | 500 |
| IRD6-2100 | Ø600x2100 | 3100 | 1350 | 1700 | 1.1 | 1300 | 80 | 135 | 170 | 500 |
| IRD9-1200 | Ø900x1200 | 2300 | 1600 | 2200 | 1.1 | 1200 | 40 | 70 | 85 | 600 |
| IRD9-1800 | Ø900x1800 | 2900 | 1600 | 2200 | 1.1 | 1470 | 80 | 135 | 170 | 600 |
| IRD9-2500 | Ø900x2500 | 3600 | 1600 | 2200 | 1.5 | 1800 | 120 | 200 | 250 | 600 |
| IRD9-3000 | Ø900x3000 | 4100 | 1600 | 2200 | 1.5 | 2100 | 160 | 270 | 350 | 600 |
Applicable scenarios of external rotating drum screen
Our drum screens offer an optimal solution for mechanical water treatment. Selection of pretreatment equipment is of decisive importance for the rest of the treatment process. Adequate fine screening is also of utmost importance for function and reliability in the following applications:
External Rotary Drum Screen Features
