| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-100 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Brand Name: | Dagyee | Product Name: | Dissolved Air Flotation |
|---|---|---|---|
| Material: | Steel Bracket | Power Consumption: | 12.9KW |
| Pretreatment: | Stainless Steel 304 Or FRP Tank | Keywords: | Dissolved Air Flotation |
| Usage: | Wastewater Pre-treatment | Function: | Removing COD BOD NH-N |

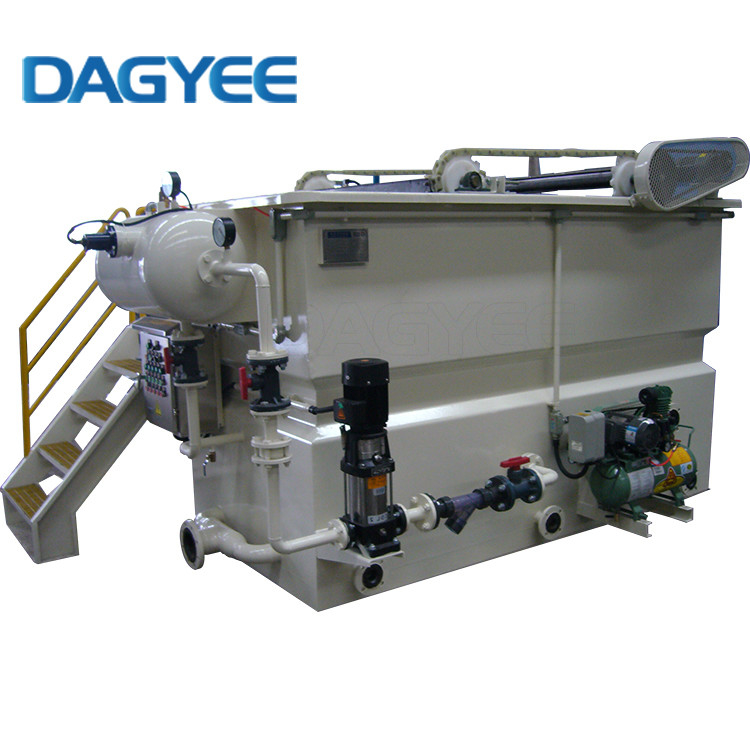

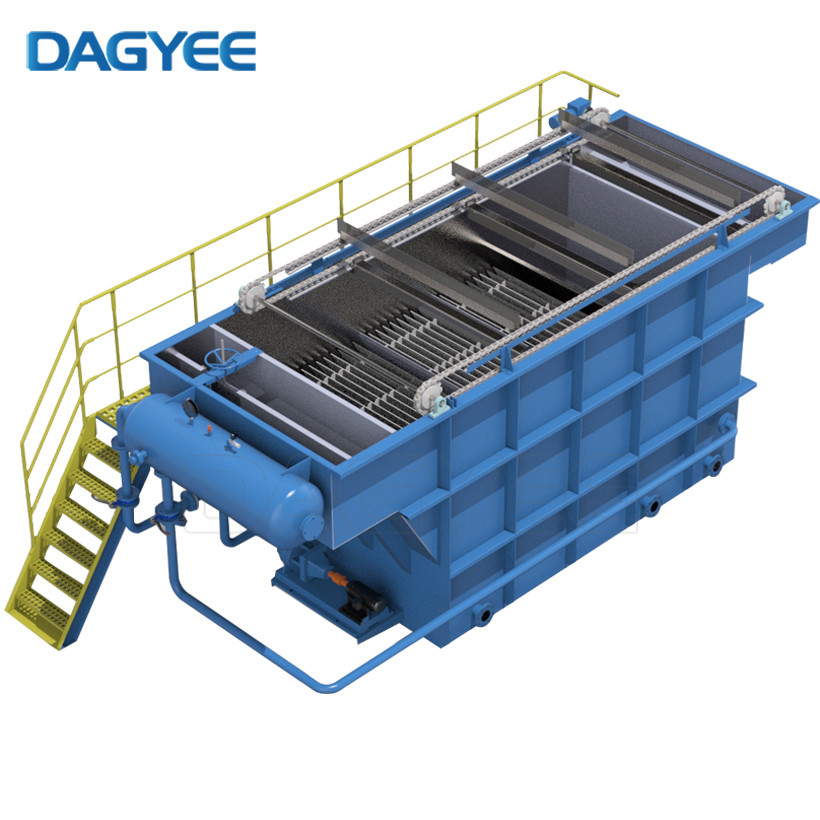

Dagyee DAF-100 100 M3 Edi Industry Dissolved Air Flotation Oil Skimmer Seawater Desalination
Oil Water Separator Wastewater Plant Treatment DAF Dissolved Air Flotation is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.
100m3/hr Dissolved Air Flotation Specification
| Parameter | Units | DAF 100 |
|
DAF Flow Rate |
m3/hr |
100 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
12.9 |
|
Footprint |
m |
12.1*4.2 |
|
Inlet |
in |
12 |
|
outlet |
in |
10 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Features Of Dissolved Air Flotation
Flow rate of one set: 1-300 m³/h.
Recycle flow dissolved air flotation.
High efficiency pressurization system providing high quantity dissolved-air water to create large quantities of small bubbles.
Custom design on different dissolved air flotation equipment and recycle flow ratio according to the type of wastewater and treatment requirement to achieve target removal effect and stability.
Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is available to save the space and cost.
Automatic and remote controllable.
Material of construction: carbon steel epoxy painted, carbon steel FRP line, SS304/SS316L
Working Principle Of Dissolved Air Flotation
Based on different water source and different water quality, The feed water to the DAF float tank is often (but not always) dosed with Flocculant and coagulant (such as PAC and PAM) to coagulate the colloidal particles and a flocculant to conglomerate the particles into bigger clusters .
A portion of the clarified effluent water leaving the DAF tank is pumped into a small pressure vessel (called the air drum) into which compressed air is also introduced. This results in saturating the pressurized effluent water with air. The air-saturated water stream is recycled to the front of the float tank and flows through a pressure reduction valve just as it enters the front of the float tank,which results in the air being released in the form of tiny bubbles. Bubbles form at nucleation sites on the surface of the suspended particles, adhering to the particles. As more bubbles form, the lift from the bubbles eventually overcomes the force of gravity. This causes the suspended matter to float to the surface where it forms a froth layer which is then removed by a skimmer. The froth-free water exits the float tank as the clarified effluent from the DAF unit.
Based on water quality, we can add sedimentation device at the bottom of the DAF machine, it can make the particles (such as sludge, sand) that easy to sedimentation setting into the bottom of tank .
