| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-2S |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Material: | Stainless Steel |
|---|---|---|---|
| Product Name: | Multi Bag Cartridge Filter Housings | Certification: | ISO9001 |
| Connection Type: | Flange /BSP Female | Color: | Customizable |
| Design Temperature: | 5 ℃ -100 ℃ | Warranty: | 1 Year |
| Highlight: | ISO9001 multi bag filter housing,0.1um multi bag filter housing,ISO9001 ss bag filter housing |
||

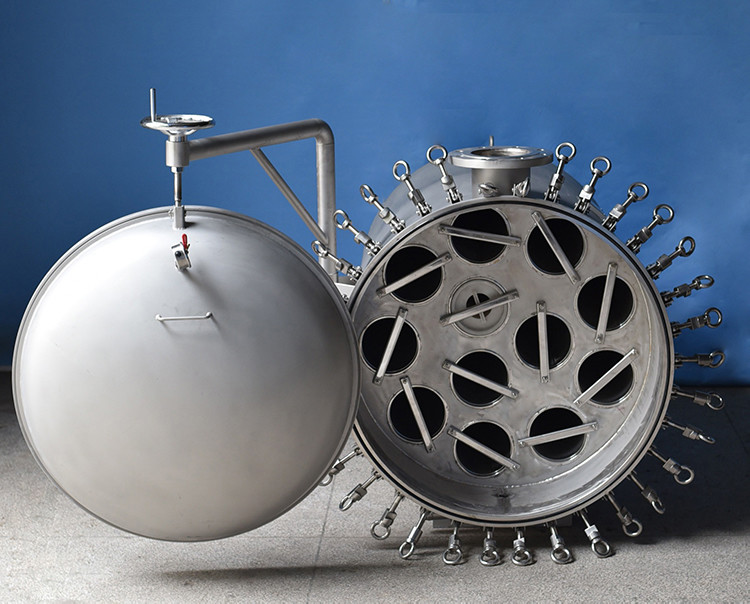

DYG-2S Stainless Steel Multi Bag Cartridge Filter Housings Manufacturers For Wine Oil Water Treatment Unit
Cartridge filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it’s used in the acid and other special occasions,it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.
Multi Bag Filter Housings Specification
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Model | Max. Flow Rate (m3 /h) |
Max. Operating Conditions (bar/°C) |
Filter specifications |
Inlet/ Outlet |
Height mm |
Max. bag Outside Diameter |
| DYG-2D-2S | 70 M3/H | 12/150 | Ø180*810 | 2'' | 1600 | Ø420 |
| DYG-3D-2S | 100 M3/H | 12/150 | Ø180*810 | 3'' | 1800 | Ø506 |
| DYG-4D-2S | 130 M3/H | 12/150 | Ø180*810 | 4'' | 1800 | Ø506 |
| DYG-6D-2S | 200 M3/H | 12/150 | Ø180*810 | 4'' | 2100 | Ø650 |
| DYG-8D-2S | 250 M3/H | 12/150 | Ø180*810 | 5'' | 2100 | Ø710 |
| DYG-12D-2S | 400M3/H | 12/150 | Ø180*810 | 6'' | 2100 | Ø910 |
Multi 2 Bag Filter Housings Specification
| Model | DYG-1-1S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø420*1600 |
| Max. Flow Rate (m3 /h) | 70 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 2'' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 2 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 3 Bag Filter Housings Specification
| Model | DYG-3D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø506*1800 |
| Max. Flow Rate (m3 /h) | 100 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 3 '' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 3 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 4 Bag Filter Housings Specification
| Model | DYG-4D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø506*1800 |
| Max. Flow Rate (m3 /h) | 130 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 3 '' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 4 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 6 Bag Filter Housings Specification
| Model | DYG-6D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø650*2100 |
| Max. Flow Rate (m3 /h) | 200 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 4'' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 6 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 8 Bag Filter Housings Specification
| Model | DYG-8D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø710*2100 |
| Max. Flow Rate (m3 /h) | 250 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 5'' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 8 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 12 Bag Filter Housings Specification
| Model | DYG-12D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø910*2100 |
| Max. Flow Rate (m3 /h) | 250 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 6'' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 12 |
| Max. bag Outside Diameter(mm) | Ø180 |
DAGYEE Cartridge Housing Applications
DAGYEE Cartridge Housing Shell Details
