| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE |
| Model Number: | DL301 |
| Minimum Order Quantity: | 1 set |
| Price: | USD15000 |
| Packaging Details: | Standard wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 Sets Per Month |
| Product Name: | Screw Press Dehydrator | Material: | 304,316L |
|---|---|---|---|
| Capacity: | 1-100 M3/hr | Certification: | CE |
| Function: | Sludge Dewatering | Application: | Industrial Wastewater |
| Use: | Automatic Continuous Operation | Advantage: | No Filter Cloth, No Clogging |
| Flow Inlet Content: | More Than 95% | Flow Outlet Content: | 55%-75% |
| Highlight: | WWTP Screw Press Dehydrator,100m3/h Screw Press Dehydrator,WWTP sludge dehydrator |
||

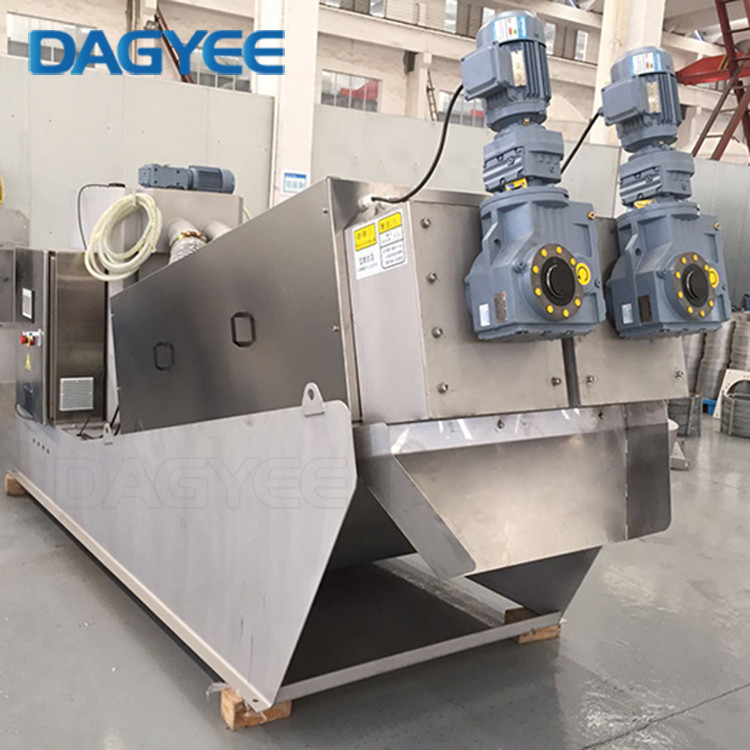

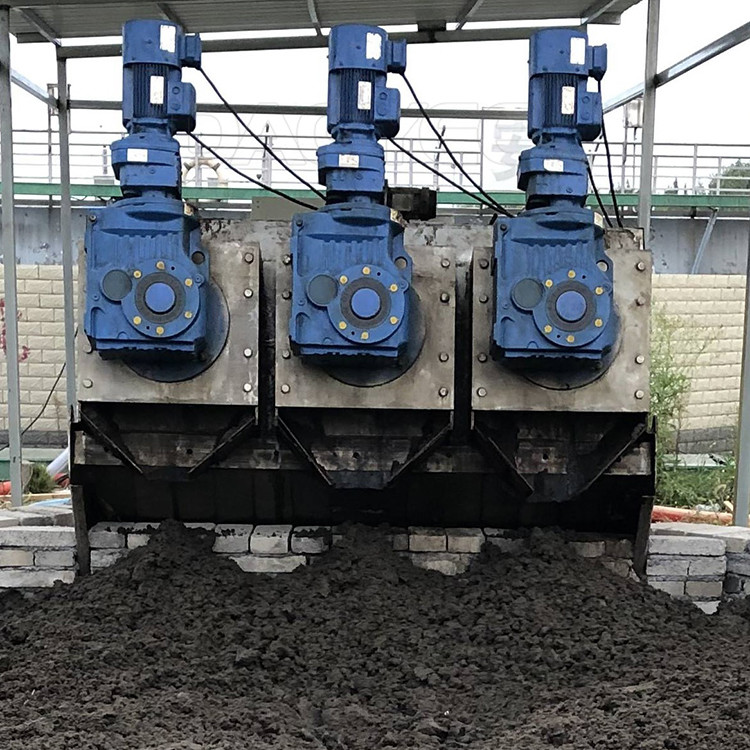

Stainless Steel Multi Disk Cake Sludge Dewatering Screw Press Dehydrator WWTP
Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.
Screw Press Dehydrator Tech
| Model | DL101 |
| DS capacity kg/h | 3-5 kg/h |
| Sludge capacity m3/h(2-50g/L) | 1.5-0.1 |
| Spiral diameter mm | ￠100*1 |
| Discharge Distance mm | 215 |
| Size L*W*H mm | 1816*756*1040 |
| Net.Kg | 200 |
| Run Kg | 290 |
| Power Kw | 0.2 |
| Washing Q L/h | 24 |
Screw Press Dehydrator Feature
Screw Press Dehydrator Applications
