| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO |
| Model Number: | LW350-1500 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate with buyers |
| Packaging Details: | Decanter Centrifuge 2300*700*1300 Standard wooden box, container |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 set per month |
| Keywords: | Food Decanter Centrifuge | Material: | 304 316L |
|---|---|---|---|
| Capacity:: | 1-5 M3/h | Application: | Food Processing Dewatering |
| Highlight: | 5m3/h Screw Decanter Centrifuge,LW350 Screw Decanter Centrifuge,3 phase decanter centrifuge |
||

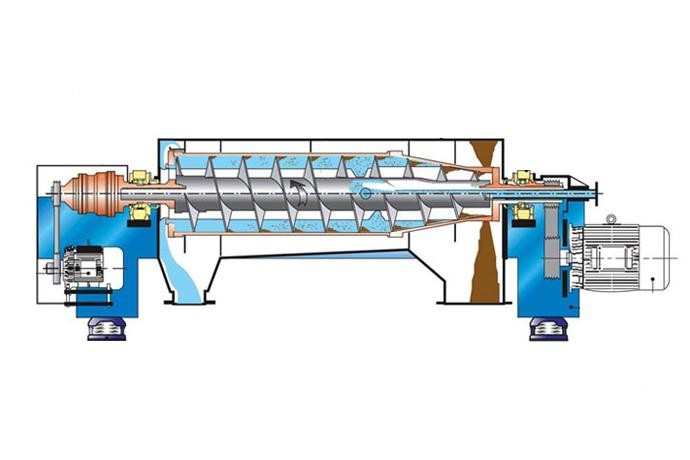

Screw Decanter Centrifuge No high-speed rotating drum with a hole to install loser concentric spiral. both in a certain difference to the same rotational speed. The speed difference is generated by the diferential. Suspension by the introduction of spiral pipe feeding tube after the initial accelerated into drum. under the centrifugal force. heavier solid precipitation in the drum wall formed sediment layer pushed by the spiral bevel of the drum to further dehydration after serving small moutt. slag discharges; and the less liquid is formed by the inner-ring
reading overflow discharge.
| Model | LW350-1500 |
| Drum diameter mm | 350 |
| Length mm | 1500 |
| Maximum speed rpm | 3800 |
| Hightest separation factor g | 2850 |
| Mixture capacity m3/h | 1-5 |
| Motor Power Kw | 18.5/5.5 |
| Host weight Kg | 2200 |
| Dimension(L*W *H) mm | 3500*1000*1300 |
