| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | SGS ISO |
| Model Number: | LW720-2500 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate with buyers |
| Packaging Details: | Decanter Centrifuge 2300*700*1300 Standard wooden box, container |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60 set per month |
| Keywords: | Solid Liquid Separator | Material: | 304 316L |
|---|---|---|---|
| Capacity:: | 25-90m3/h | Application: | Horizontal Screw Conveyor Decanter |
| Highlight: | LW720 Screw Decanter Centrifuge,90m3/h Screw Decanter Centrifuge,LW720 horizontal decanter centrifuge |
||

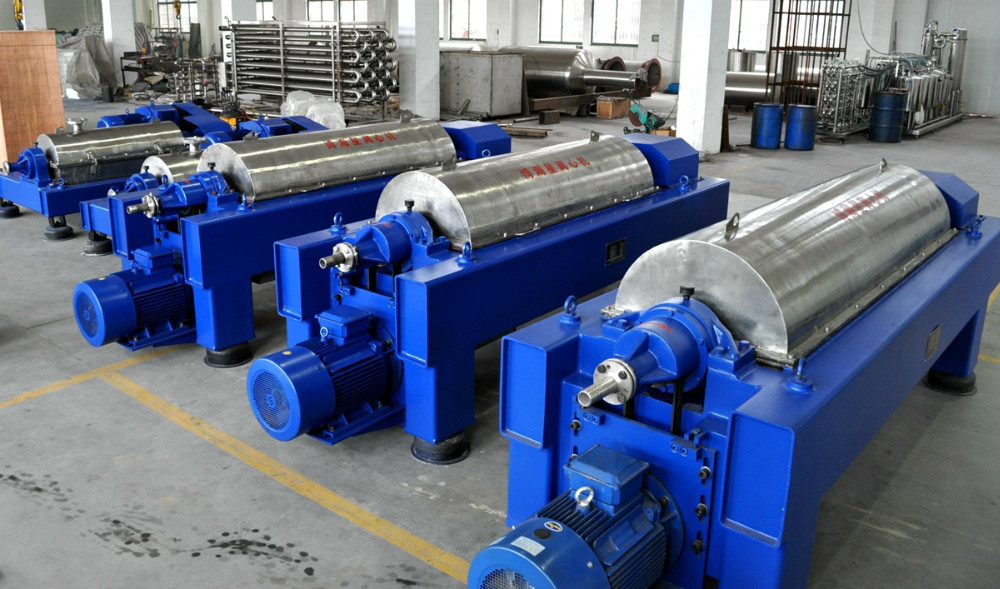

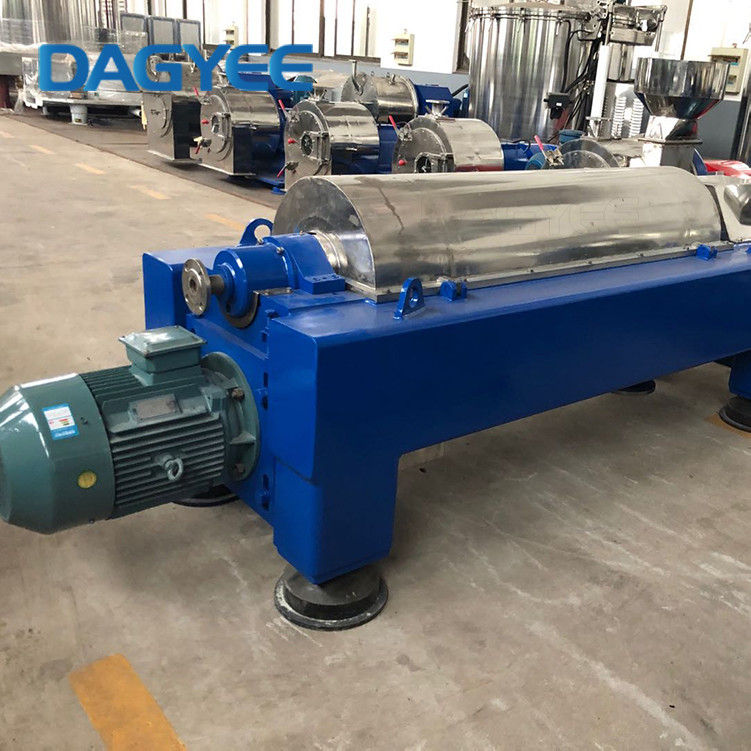

With a 3 phase decanter centrifuge, it is possible to separate 3 phases from each other in one process step only. For example, two liquids which cannot be mixed because of different densities (e.g. oil and water) are separated from a solids phase. The heavy liquid (water) collects in the middle between the oil and the solids layer. Thus the two liquids separated from each other can be drawn off from the decanter. The solids are transported via the scroll to the discharge openings as it happens also in 2-phase separation.
Typical applications of 3-phase separation are the production of edible oils such as olive oil, oil sludge processing, the production of biodiesel .
| Model | LW800-2560 |
| Drum diameter mm | 800 |
| Length mm | 2560 |
| Maximum speed rpm | 2000 |
| Hightest separation factor g | 1800 |
| Mixture capacity m3/h | 30-100 |
| Motor Power Kw | 90/132 |
| Host weight Kg | 8000 |
| Dimension(L*W *H) mm | 4600*2200*1400 |
