ISO Q345 SS304 Helical Blade Shaftless Screw Conveyor

ISO Certification Q345 304 Helical Blade Shaftless Flight Heavy Gauge Helicoid Flight

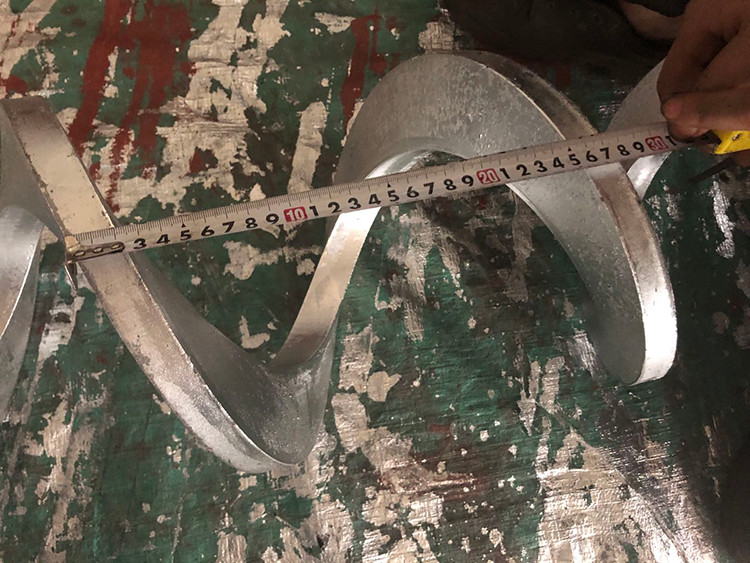

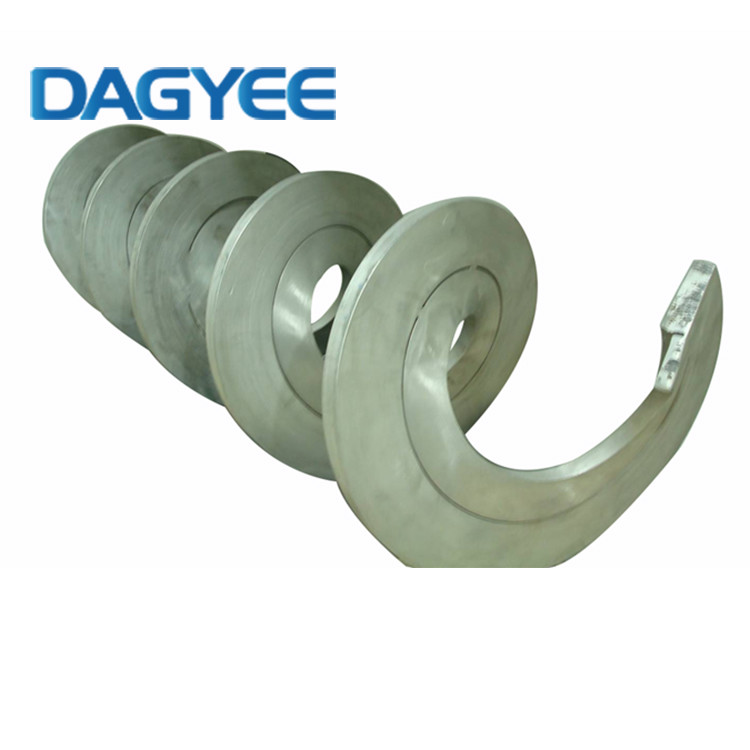

We produce shaftless flight from a single rod or an inner and outer  flight structure composed of multiple stacked rods. The scraper is made of two, three or more individual rods or a combination of spiral and segmented scrapers. This adds cross-section, strength and stiffness to the flight. Multiple rods can have different thicknesses and heights, and can even have different materials, such as carbon steel internal threads and wear-resistant external threads, thereby saving costs.

Shaftless Flight Technical

Shaftless Flight Features

• 2M Length without a welded joint
• Thickness>10mm,16-30mm
• Suitable for shaftless conveying
• High strength and durability

Shaftless Flight Application

• Shaftless spirals
• Multiple flights
• Shafted spirals
• Sectionals and auger flighting
• Conveyor wear liners

How to procedure to order shaftless Flight

• Right hand / Left hand
• push or pull
• The outside diameter (OD)
• The thickness of the flight
• The inside diameter (ID) or shaft OD
• Pitch
• Material
• length
• Quantity
• special requirements
