| Place of Origin: | WUXI,CHINA |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | SGS |
| Model Number: | 220-100-60-220-16mm OEM |
| Minimum Order Quantity: | 1 METER |
| Price: | Negotiate with buyers |
| Packaging Details: | Export wooden box ,According to buyer needs |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 1000 M per month |
| Features: | Continuous Shaftless Spirals | Material: | Q345 |
|---|---|---|---|
| Products Name: | Continuous Shaftless Spirals | Thickness: | 20mm |
| Highlight: | SGS Shaftless Spiral Conveyor,20mm shaftless spiral conveyor,Q345 Shaftless Screw Conveyor |
||

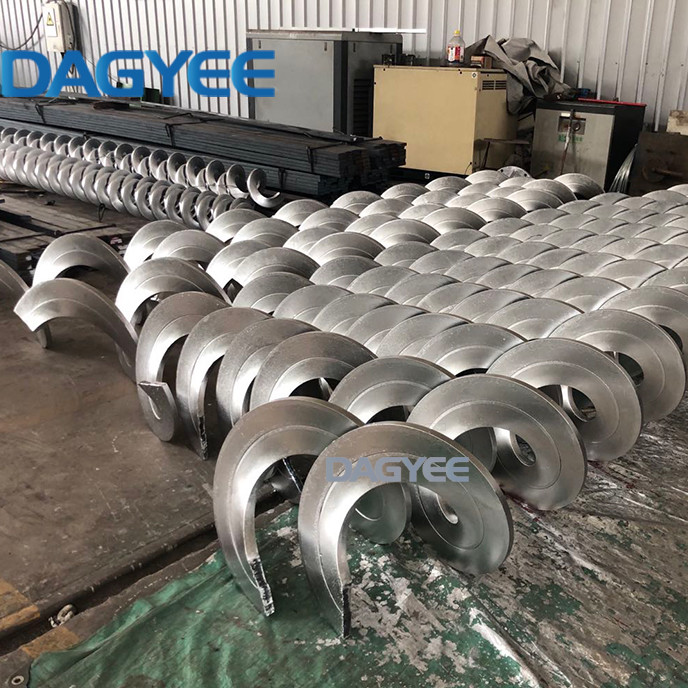

DAGYEE spirals are manufactured from special micro-alloyed steels.
Our two stage forming process ensures desired diameter, pitch and tolerances between ± 1%. Each formed subsection of a spiral is factory welded into the required length. All DAGYEE spirals are beveled on both ends to ensure proper welded connections. The benefits of the DAGYEE alloy steel are greater torque resistance, greater tensile strength, better resistance to twisting and superior wear characteristics resulting in longer spiral life. The close manufacturing tolerances result in fewer wear points on a liner.
| Diameter | 260 |
| Bottom diameter | 100 |
| Leaf height | 80 |
| Pitch | 260 |
| Length | 1000-2000 |
| Thickness | 20 |
