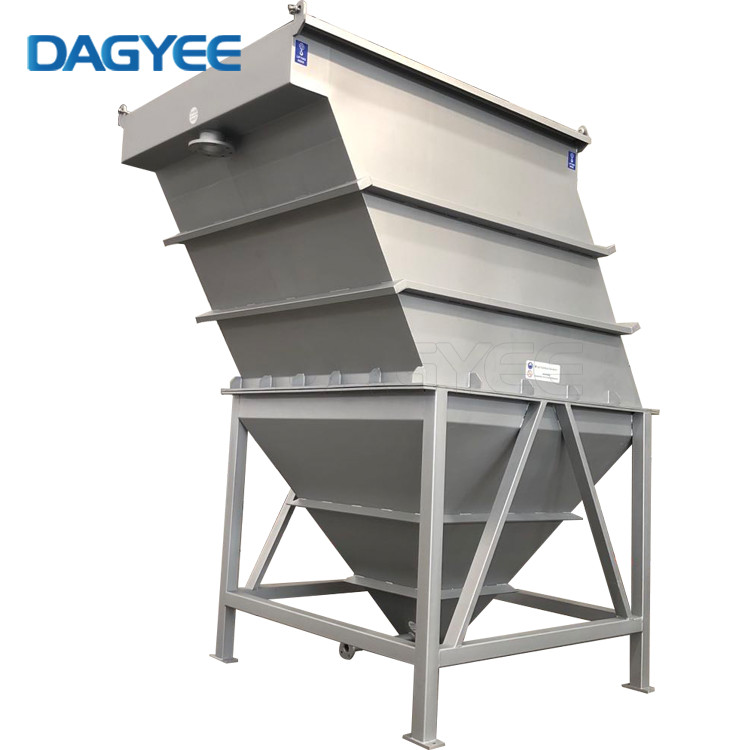

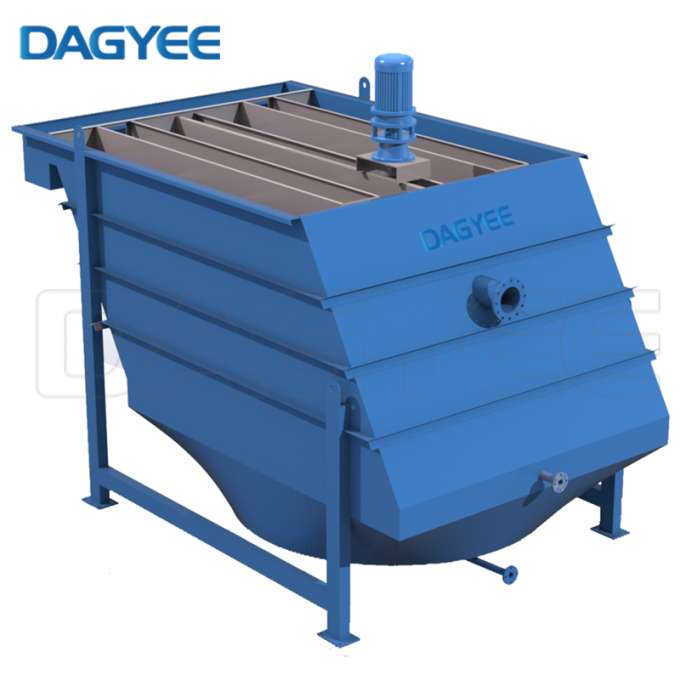

Wastewater Treatment Inclined Plate Lamella Clarifier

Lamella Separator Settler Inclined Plate Clarifier

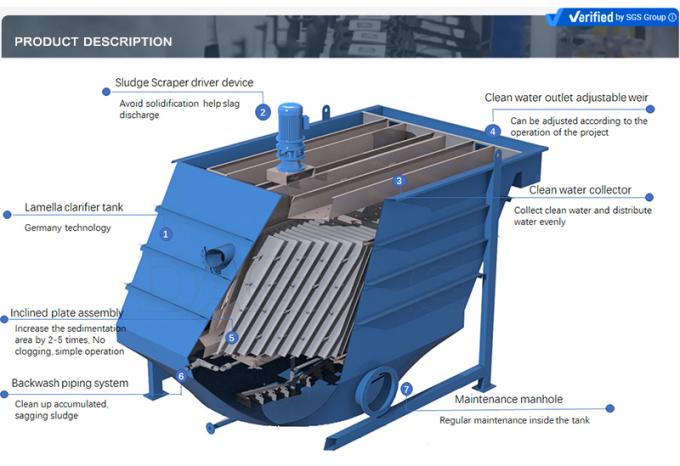

Description of Lamella Separator

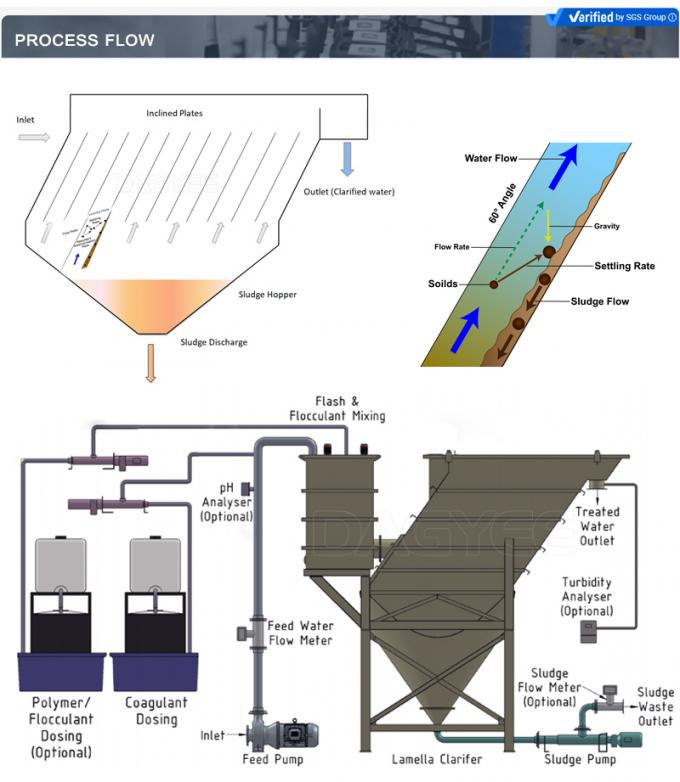

• Gravity Settler is a pre-assembled, modular, high rate inclined plate settler that uses a counter-current flow principle for effective solids removal.
• The inclined plate concept provides an effective settling area that is equal to the field of each plate as projected onto a horizontal surface.
• Using the standard 2″ plate spacing and 55°-60°, up to 10 ft² of projected area become available for each square foot of land area

Characteristics of Lamella Separator

• Lamella Clarifier minimizes maintenance and operation the cost of compact design is much less than standard clarifying agent.
• Lamella is great for new factories or upgrade existing installations with limited space system .the configuration ensures laminar flow conditions,resulting in high hydraulic uniformity and high effluent quality.
• Point source treatment with Lamella is very suitable for many applications.​

Application of Lamella Separator

• Extremely smooth surface (mud does not stick)
• High resistance to shocks (stages of loading, unloading, assembly)
• Excellent hardness values, stiffness, elasticity and tensile strenght
• Resistance to breakage from mechanical stress
• Abrasion resistance
• Excellent electrical and thermal insulating properties
• Unassailable to chemical agents
• No water absorption
