Power 0.55kw Ips Lamella Clarifier Gravity Settler

IPS Lamella Plate Clarifier Gravity Settler

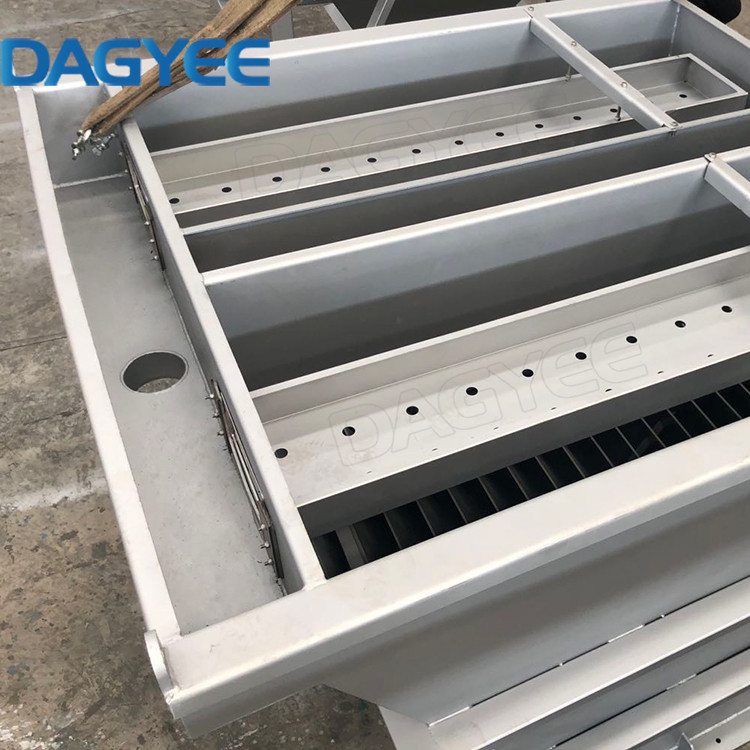

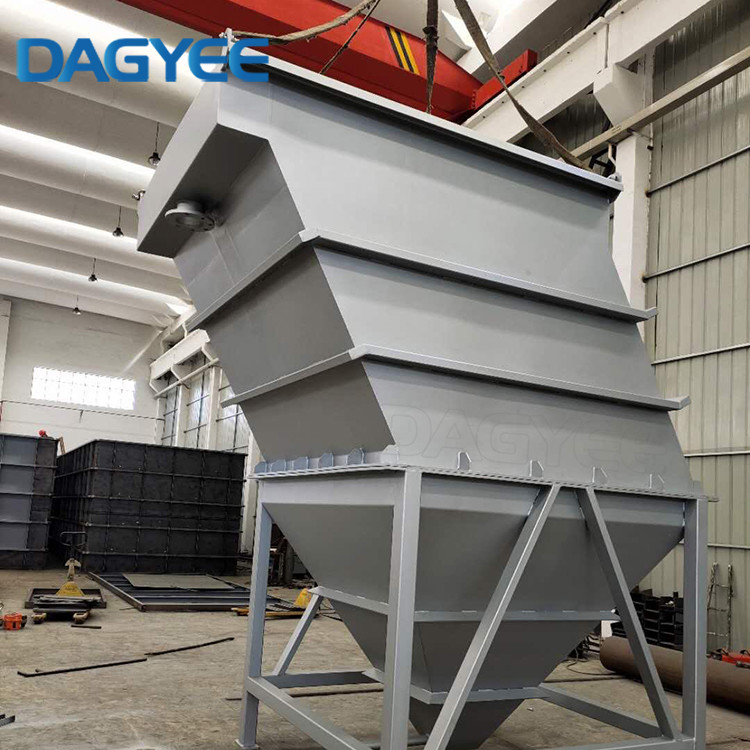

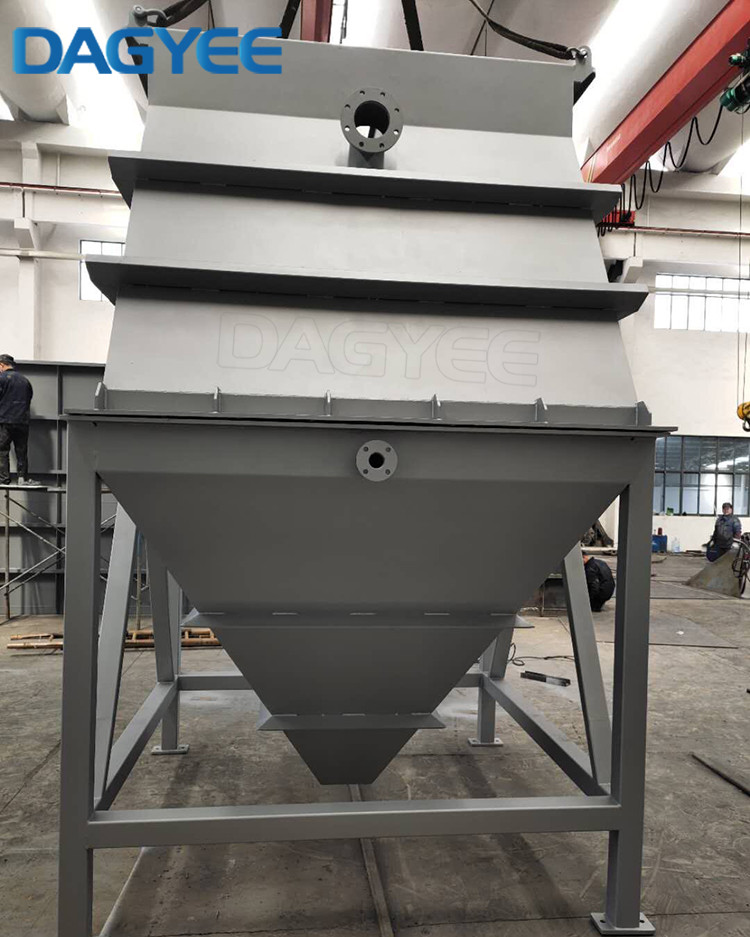

Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.

Available options:

• Flash mixing/flocculation tank with agitator
•Full glass steel or stainless steel structure
•Concrete tank design
•Special coatings and plates
•Integrated mechanical sludge thickener
• Overhaul platforms and ladders
•In-house laboratory analysis to optimize equipment
• Drinking water design
• Gasket and removable cover
•Automatic desilting
•Instrumentation and control
•Chemical feed equipment
•Sludge treatment and dewatering
• Pilot size units for field testing​

Advantages Of Lamella Clarifier

• Continuous operation.
• Due to its small volume no need to allocate large storage when emptying.
• No drive nor mechanical parts.
• Filling and emptying time is short.
• Small floor area footprint.
• Modular design for future expansions.​

Available Designs Of Lamella Clarifier

• Inclined plates spacing of 80-100 mm
• Inclined plate length 1–2 m
• Plate pitches between 50° and 60°
• allow for self-cleaning, pitches require backwash
• Typical loading rates are 5 to 15m/h.

80M3/hr Lamella Clarifier Specifications
