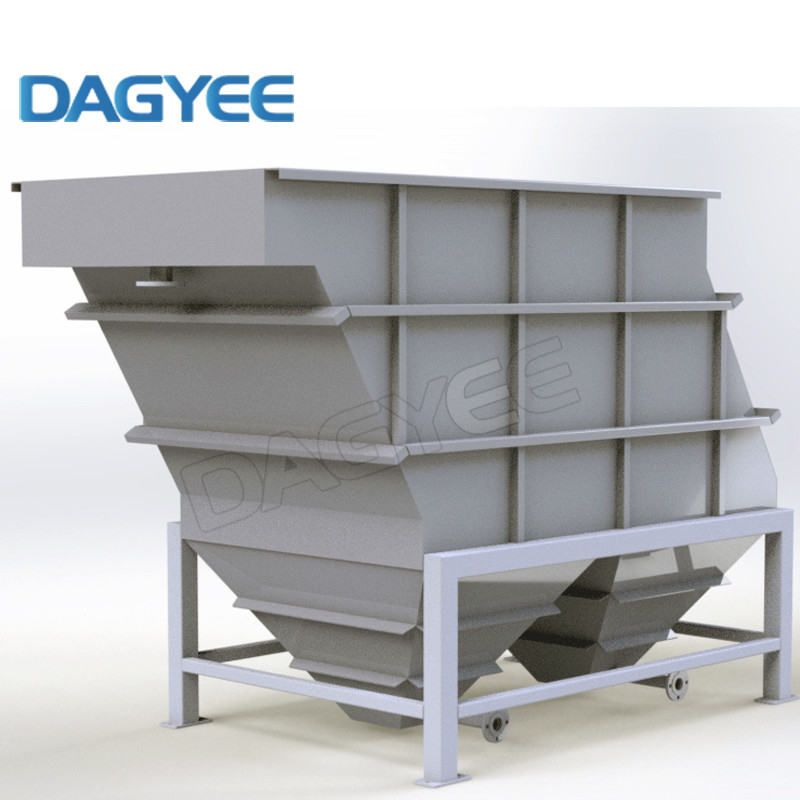

Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling

Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling
Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling
Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling
Basic Information
Place of Origin: Jiangsu.China
Brand Name: Dagyee
Certification: CE
Model Number: DCL-050
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden box, standard container, Customers can specify requirements
Delivery Time: 20-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50SET
Get Best Price Contact Now
Detail Information
Material: SS316 Carbon Steel Weight: 4500
Size: 4.2*2.8*3M Color: Customerized
Padding: PP/PVC/FRP Effective Settling Area: 50 M2
Efficiency: 70-99 % Flow Rate: 0-50 M3/h
Highlight:

ss304 lamella clarifier

,

carbon steel lamella clarifier

,

lamella tube settler clarifier ss316

Product Description

50m3 CPI IPS Inclined Plate Settler Lamella Clarifier Separator Jungle River



What Is Lamella Clarifier



Inclined Plate Lamella Clarifiers are designed to remove solids from water. They are used in a wide variety of Wastewater Treatment Applications, including Metal Finishing Wastewater Treatment. The Total Suspended Solids TSS in the wastewater will naturally settle over time due to gravity, but this process can be sped up and improved by having Inclined Plates. The inclined plates provide a large projected settling area in a compact form. This technology is greatly beneficial compared to a cone bottom tank or a circular clarifier because of the space savings, settling efficiencies, and the reduced cost of construction.





Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling 0
Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling 1
DCL
Model
Capacities
(m3/h)
Piping Connections(mm)
Physical Dimensions(m)
Inlet(a)
Effluent(b)
Sludge(c)
Backwash(d)
L
W
H
DCL-
5
80
80
50
50
2.55
1.6
2.9
DCL-
10
100
100
50
50
3.35
1.82
3
DCL-
15
100
100
50
50
3.35
2.02
3
DCL-
20
100
100
50
50
3.35
2.02
3
DCL-
30
150
150
50
50
4.2
2.22
3
DCL-
40
150
150
50
50
4
2.8
3
DCL-
50
200
200
50
50
4.65
2.82
3
DCL-
60
200
200
50
50
4.7
3
3
DCL-
70
250
200
50
50
6.4
2.6
3
DCL-
80
250
200
50
50
6.8
2.82
3
DCL-
100
250
250
50
50
7.05
3.02
3








Range Of Applications



  •  Primary clarification of wastewater streams
  •  Backwash water recovery
  •  Industrial water treatment systems
  •  Potable water treatment systems
  •  River water abstraction clarification
  •  Wash water recovery and recirculation systems
  •  Wet scrubber and slaking effluent treatment



Features Of Lamella Clarifier

  • Structural steel support legs
  • Epoxy painted carbon steel tank
  • Individually removable FRP
  • plates
  • Adjustable effluent weir plates
  • Standard units can be
  • manufactured for flows from 5
  • gpm to 3000 gpm and above in
  • a single above-grade tank
  • One-piece prefabricated units
  • are available with up to 1000 sqft
  • of effective settling area
  • Single tank construction with
  • integral flash mix/flocculation
  • compartments for smaller units
  • Multiple sample connections​



Advantages

  • Smaller footprint
  • Large effective settling area
  • Improved overflow rates 2 to 4 times
  • Long time to be use
  • Normal use without clogging
  • Even clogging is provided with backwash device Less possibility for injury





Availbailable Designs

  • Inclined plate length 1–2 m
  • Plate pitches between 50° and 60°
  • Allow for self-cleaning, pitches require backwash
  • Loading rates are 5 to 15m/h
  • Set up scraper for easy drainage.



Dagyee Lamella Clarifier Focus On More Details





Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling 2Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling 3

Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling 4

Ss304 Ss316 Carbon Steel Lamella Clarifier Industrial Water Settling 5
