| Place of Origin: | China |
|---|---|
| Brand Name: | dagyee |
| Certification: | M.2020.206.C9739 |
| Model Number: | LC-070 |
| Minimum Order Quantity: | 1 SET |
| Price: | CUSTOM |
| Packaging Details: | Wooden case,standard container,can be specified |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10SET |
| Product Name: | Water Treatment System | Application: | Filtration |
|---|---|---|---|
| Usage: | Storage Liquid | Capacity: | Up To 5L/h |
| Keywords: | Water Filter System Small Industry | Function: | Producing Fresh Water |
| Power: | 14W | Feature: | Eco-friendly |
| MOQ: | 1 Set | ||
| Highlight: | water treatment lamella gravity settler,5L/h lamella gravity settler,5L/h lamella tube settler |
||
Remove sediment from wastewater and industrial water reliably
and effectively, using up to 70%-80% less footprint than conventional technologies

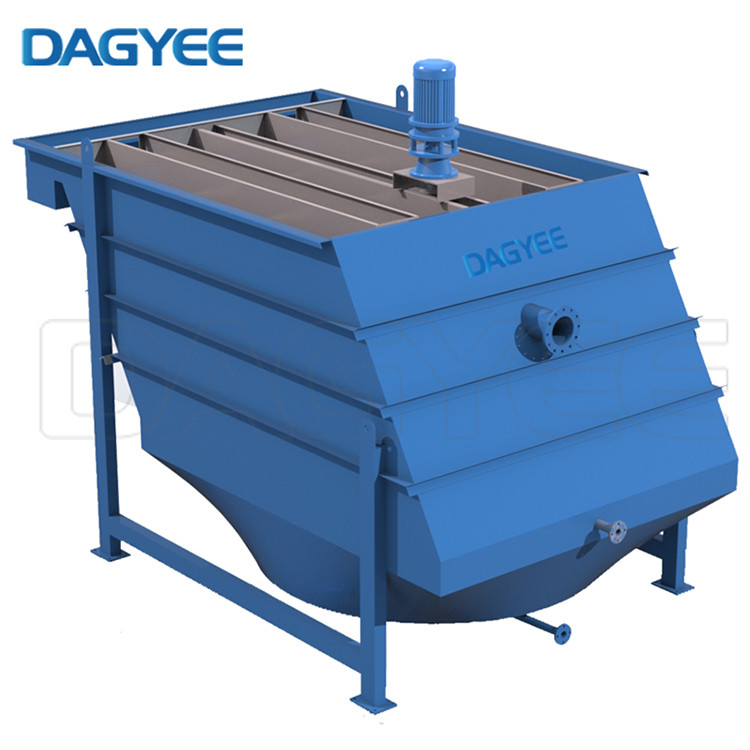

The Lamella Plate Clarifier is a primary clarification device used to treat sewage and industrial waste streams and requires up to 80% less space when compared to a traditional settling tank.
Supplied as a complete, easy-to-install unit or as a plate pack assembly for installation into either a concrete or
steel tank, the Lamella Plate Clarifier provides lowfootprint water clarification for municipal and industrial treatment applications. By reducing the settling distance dramatically, higher flows can be treated in a much
smaller footprint.
Applications
Product Features
| 70M3/hr Lamella Clarifier Specifications | ||
| Parameter | Units | DCL-070 |
| Flow Rate | m3/h | 0-70 |
| Effective Settling Area | m2 | 70 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 6.4*2.6*3 |
| Inlet | Inch | 10 |
| Effluent | Inch | 8 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 6500 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Example Removal Performance
| Application | Removals |
| Primary clarification | 50% to 70 % TSS removal (without chemicals) |
| Raw water clarification | 2 NTU |
| Washwater settlement | 5 NTU |
| settlement | 30 mg/l TSS 95%ile |
