| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT6660 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | 304 316 | Capacity: | 6500 |
| Water Inlet Flow: | 4.2-20 | Weight: | 1200 |
| Application: | Chemical Storage | Warranty: | 1 Year |
| Highlight: | 1000L Chemical Dosing Equipment,chemical dosing system 1000L,Chemical Dosing Equipment Sgs |
||

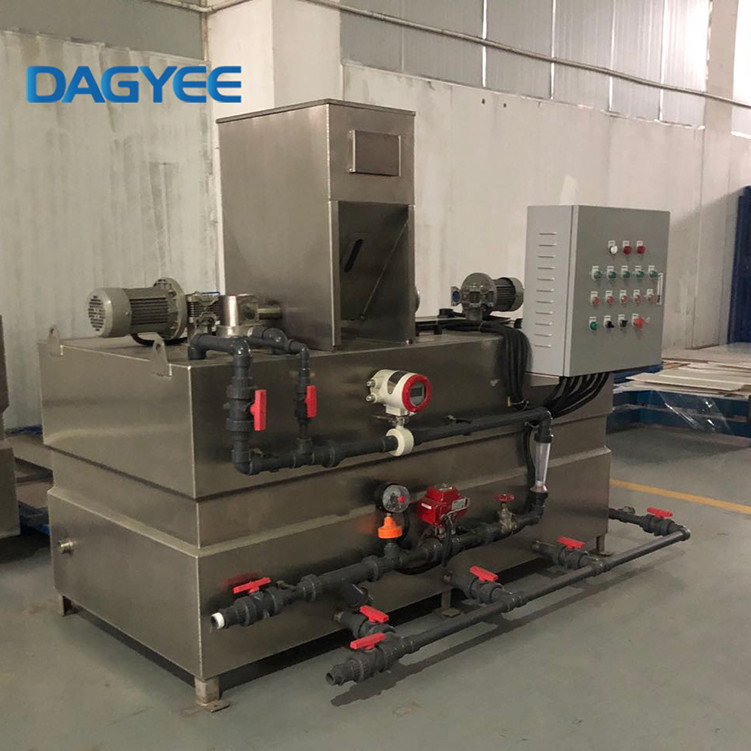

Dagyee DT6660 Automatic Three Chamber Intelligent Dosing Control Systems Polymer Preparation
Integrated dosing device for automatic batching,dissolution and integration into one ,and Fully automatic operation.
The quantitative dosing device is accurate in measurement and driven by continuously variable transmission,it is convenient to adjust the feeding amount.The concentration range of preparation agent is large.
With liquid level detection, flow control, auxiliary vibration feeding and other functions, high degree of automation.4.Tank material: stainless steel SS304 or SS316L, polypropylene PP, FRP, etc
Specification
Extraction rate up to 10,000 l / h
Liquid polymer concentration: 0.05 – 1%
Powder polymer concentration: 0.05-0.5%
| AUTOMATIC POLYMER DOSING SYSTEM EQUIPMENT SPECIFICATIONS | |||||||||||||
| PT Model |
Capacities (L/h) |
Tank volume (L) | Influent volume | Aging Time | Piping Connections | Physical Dimensions(mm) | Weight (Kg) |
Power | |||||
| (m3/h) | (h) | Inlet | Dosing | Vent | Overflow | L/L1 | W/W1 | H | (KW) | ||||
| PT300 | 300 | 350 | 0.12-0.6 | 1.0-1.5 | DN20 | DN20 | DN20 | DN32 | 940/860 | 470/520 | 1450 | 250 | 0.54 |
| PT500 | 500 | 750 | 0.3-1.5 | 1.0-1.5 | DN25 | DN25 | DN25 | DN32 | 1370/1290 | 680/730 | 1450 | 350 | 0.92 |
| PT1000 | 1000 | 1580 | 0.6-3 | 1.0-1.5 | DN25 | DN25 | DN25 | DN40 | 1800/1720 | 900/950 | 1620 | 480 | 1.3 |
| PT1500 | 1500 | 2200 | 0.8-4 | 1.0-1.5 | DN32 | DN32 | DN25 | DN40 | 2130/2050 | 1070/1120 | 1620 | 560 | 1.7 |
| PT2500 | 2500 | 4050 | 1.6-8 | 1.0-1.5 | DN40 | DN40 | DN40 | DN50 | 2450/2370 | 1220/1270 | 2000 | 790 | 2.4 |
| PT4000 | 4000 | 6170 | 2.4-12 | 1.0-1.5 | DN40 | DN40 | DN40 | DN65 | 2780/2700 | 1390/1440 | 2250 | 1050 | 3.2 |
The Feature Of Dissolver Dosing Device
The Application Of Dissolver Dosing Device
The Service Of Company
No matter which processes and applications are planned Dagyee has a solution in the cleaning and hygiene of kitchens and laundries and surfaces of all types in applications like Offices and Restaurants, Hospitals and Hotels, Retailers andSchools, Car Washes and Swimming Pools, Cooling Towers, Energy, Food & Beverage, Water & Gas Utilities Potable and Waste Water Treatment .
