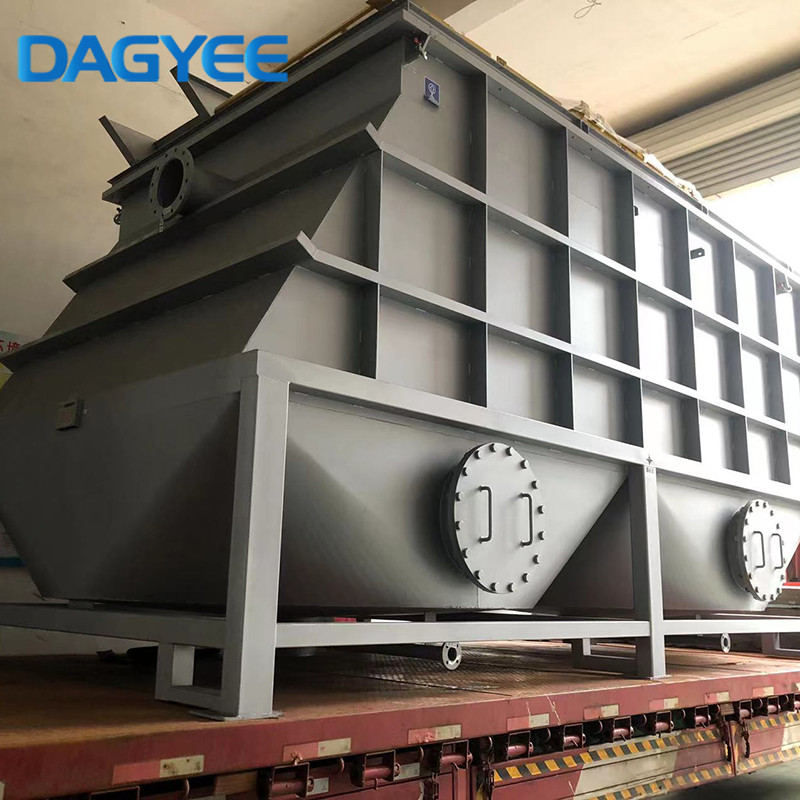

Horizontal Clarifiers UPVC Lamella Solids Separator Clarifier Plates Gravity Settling

Horizontal Clarifiers UPVC Lamella Solids Separator Clarifier Plates Gravity Settling
Horizontal Clarifiers UPVC Lamella Solids Separator Clarifier Plates Gravity Settling
Horizontal Clarifiers UPVC Lamella Solids Separator Clarifier Plates Gravity Settling
Basic Information
Place of Origin: Jiangsu.China
Brand Name: Dagyee
Certification: CE
Model Number: DCL-005
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden box, standard container, Customers can specify requirements
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30SET
Get Best Price Contact Now
Detail Information
Material: Standard Container Weight: 1500
Size: 2.55*1.6*2.9 Power: 0.55
Usage: Automatic Operation Padding: PP/PVC/FRP
Type: Lamella Sheet Color: Customerized

Product Description

DCL-005 Flocculator Coagulator Standard seaworthy package Automatic Lamella Clarifier



Gravity Settler is a pre-assembled, modular, high rate inclined plate settler that uses a counter-current flow principle for effective solids removal. The inclined plate concept provides an effective settling area that is equal to the field of each plate as projected onto a horizontal surface. Using the standard 2″ plate spacing and 55°-60°, up to 10 ft² of projected area become available for each square foot of land area.







5M3/hr Lamella Clarifier Specifications



Parameter Units DCL-005
Flow Rate m3/h 0-5
Effective Settling Area m2 5
Efficiency % 80-90
Treated water turbidity NTU 50-100
Dimensions (Clarifier Only) L x W x H (m) 2.55*1.6*2.9
Inlet Inch 3
Effluent Inch 3
Sludge outlet Inch 2
Backwash Inch 2
Power Kw 0.55
Weight Kg 1500
Voltage Standard 380V/3Phase/50Hz
Or
Provide your standard
when making an inquiry
STANDARD INCLUSIONS + OPTIONS
Lamella Body Epoxy Coated Carbon Steel ✓
Feed Pump o
Floculator Tanks o
Flash & Floc Mixers o
Sludge Scraper o
Lamella / Floc Tank Support Galvanised Mild Steel Construction ✓
Standard Controller ✓
Lamella Body – 304ss o
Lamella Body – 316ss o
Variable Speed Mixer o
Access Platform and Ladder o
Sludge Hopper Actuated Valve o
Sludge pump o







Advantages Of Using Lamella Clarifier



  • Water following physical-chemical treatment.
  • Tailings in mining and metallurgical beneficiation.
  • Solutions from gold leaching processes.
  • Wet scrubbing effluents.
  • Effluent treatment in pulp and paper mills.
  • Filter backwash.





Main Process Characteristics

  • Stainless steel AISI 304 or Special Polypropylene
  • With Big Bag Filter
  • With Filter Press





Application Of Lamella Clarifier



  • Potable water clarification
  • Industrial process water
  • Oil gas industry waste water treamtment.
  • Sand filter backwash water treatment
  • Metal finishing waste water treatment.
  • Mining Industry
  • Groundwater Treatment
  • River dredging treatment Plant
  • Other waste water treatment plant.























Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids. They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
Horizontal Clarifiers UPVC Lamella Solids Separator Clarifier Plates Gravity Settling 0
Horizontal Clarifiers UPVC Lamella Solids Separator Clarifier Plates Gravity Settling 1
DCL
Model
Capacities
(m3/h)
Piping Connections(mm)
Physical Dimensions(m)
Inlet(a)
Effluent(b)
Sludge(c)
Backwash(d)
L
W
H
DCL-
5
80
80
50
50
2.55
1.6
2.9
DCL-
10
100
100
50
50
3.35
1.82
3
DCL-
15
100
100
50
50
3.35
2.02
3
DCL-
20
100
100
50
50
3.35
2.02
3
DCL-
30
150
150
50
50
4.2
2.22
3
DCL-
40
150
150
50
50
4
2.8
3
DCL-
50
200
200
50
50
4.65
2.82
3
DCL-
60
200
200
50
50
4.7
3
3
DCL-
70
250
200
50
50
6.4
2.6
3
DCL-
80
250
200
50
50
6.8
2.82
3
DCL-
100
250
250
50
50
7.05
3.02
3
Horizontal Clarifiers UPVC Lamella Solids Separator Clarifier Plates Gravity Settling 2
Horizontal Clarifiers UPVC Lamella Solids Separator Clarifier Plates Gravity Settling 3
