| Place of Origin: | China |
|---|---|
| Brand Name: | Screw Press Dehydrator |
| Certification: | CE |
| Model Number: | DL303 |
| Minimum Order Quantity: | 1 set |
| Price: | effective solutions |
| Packaging Details: | Standard wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets per month |
| Product Name: | Screw Press Dehydrator | DS Capacity: | 90-150kg/h |
|---|---|---|---|
| Material: | Stainless Steel SUS304 SUS316 | Sludge Treatmnt Capacity: | 3-45 M3/hr |
| Application: | Sludge Dewatering | Function: | Reduce Cleaning Water Consumption |

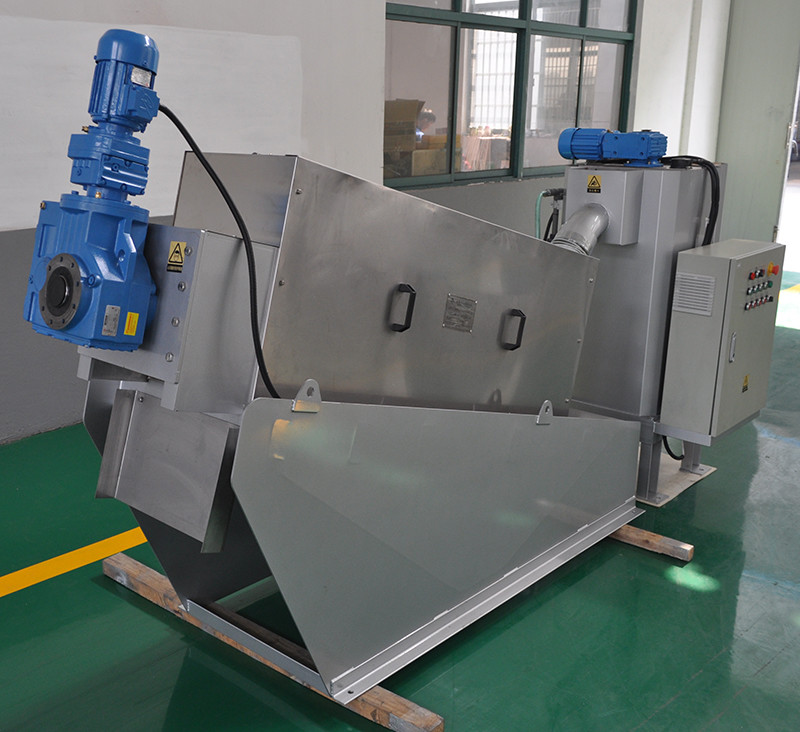

Multi Plate Screw Press Sludge Dewatering System
Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.
Screw Press Dehydrator Technical Parameters
|
Model |
303 |
|
DS capacity kg/h |
90-150 kg/h |
|
Sludge capacity m3/h |
3-45 |
|
Spiral diameter mm |
￠310*3 |
|
Discharge Distance mm |
495 |
|
Size L*W*H mm |
3605*1690*1600 |
|
Net.Kg |
1520 |
|
Run Kg |
3080 |
|
Power Kw |
1.86 |
|
Washing Q L/h |
120 |
Screw Press Dehydrator Features
Automatic continuous operation
Compact design with flocculation and dewatering
Low power and water consumption
Low operation cost
No filter cloth, no clogging
No need for sludge thickener
Easy operation and maintenance
No vibration and noise
Screw Press Dehydrator Benefits
Low Running Cost
Power-use: less than 5% of centrifuge
Water-use: less than 0.1% of belt filter press. Polymer: saving around 60%
Room: saving more than 60% of the investment for dehydration room
Non-clogging
Self-cleaning with small amount of water
Suit for Oily Sludge
Why Choose Sludge Screw Dewatering
Volume Reduction
No dewatering (0.5%)
With Dewatering (20%)
High Efficient Presentation Of Following Process
Screw Press Dehydrator Detail
