| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-050 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Material: | Standard Container |
|---|---|---|---|
| Weight: | 4500 Kg | Certification: | ISO 9001 |
| Power: | 0.55Kw | Keywords: | Inclined Plate |
| Color: | Customerized | Inlet: | 8 Inch |
| Type: | Automatic |

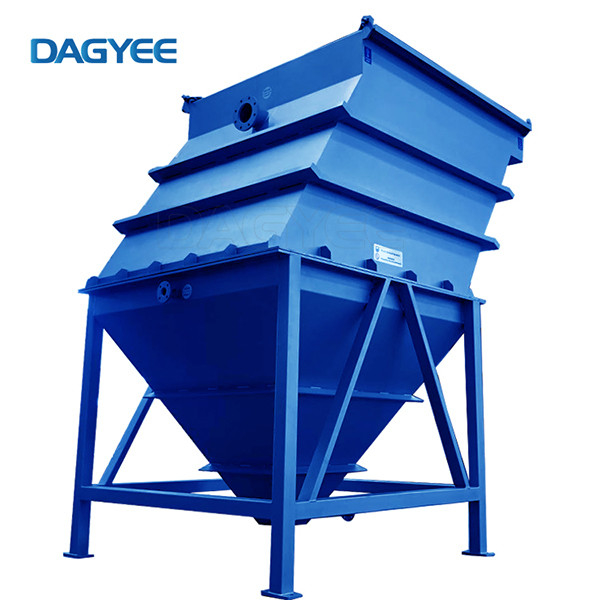

Dagyee DCL-050 Sedimentation Tank Industrial Water Clarifier Manufacturer
Lamella Clarifier Introduction
The size of the gravity settler mentioned in the introduction is determined according to two parameters, namely the upflow rate of the liquid and the settling area. Therefore, under the same conditions, the effective area of the clarifier and the flake settler are the same. In the clarifier, the settling area is the surface of the water tank, and in the flake settler, the settling area is the total area of the inclined plate projected on the horizontal surface.
Compared with the clarifier, this can reduce the area occupied by the flake settlers by about 90%, so less land is required.
Lamella Clarifier Equipment Specifications
|
Parameter |
Units |
DCL-050 |
|
Flow Rate |
m3/h |
0-50 |
|
Effective Settling Area |
m2 |
50 |
|
Efficiency |
% |
80-90 |
|
Treated water turbidity |
NTU |
50-100 |
|
Dimensions (Clarifier Only) |
L x W x H (m) |
4.65*2.82*3 |
|
Inlet |
Inch |
8 |
|
Effluent |
Inch |
8 |
|
Sludge outlet |
Inch |
2 |
|
Backwash |
Inch |
2 |
|
Power |
Kw |
0.55 |
|
Weight |
Kg |
4500 |
|
Voltage |
Standard |
380V/3Phase/50Hz |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Lamella Body Epoxy Coated Carbon Steel |
✓ |
|
|
Feed Pump |
o |
|
|
Floculator Tanks |
o |
|
|
Flash & Floc Mixers |
o |
|
|
Sludge Scraper |
o |
|
|
Lamella / Floc Tank Support Galvanised Mild Steel Construction |
✓ |
|
|
Standard Controller |
✓ |
|
|
Lamella Body – 304ss |
o |
|
|
Lamella Body – 316ss |
o |
|
|
Variable Speed Mixer |
o |
|
|
Access Platform and Ladder |
o |
|
|
Sludge Hopper Actuated Valve |
o |
|
|
Sludge pump |
o |
|
Range Of Applications
Heavy Metals Removal
Filter Press Belt Wash
Battery Plant Heavy Metals Removal
Hazardous Waste Remediation
Brine Clarification
Plating and Finishing Wastes
Food & Beverage Waste
Trace Metals Reduction
Storm Water Management
Bleach Plant Wash Water
Incinerator Wet Scrubber
Potable Water Pretreatment
Features Of Lamella Clarifier
Modular and compact construction
Range of capacities (2, 4 & 6 m³/hr)
Stainless steel contstruction
Layout and construction customization possible
Can be fitted with a catwalk for maintenance
Advantages
Smaller footprint
Large effective settling area
Improved overflow rates 2 to 4 times
Long time to be use
Normal use without clogging
Even clogging is provided with backwash device Less possibility for injury
Availbailable Designs
Inclined plate length 1–2 m
Plate pitches between 50° and 60°
Allow for self-cleaning, pitches require backwash
Loading rates are 5 to 15m/h
Set up scraper for easy drainage.
Dagyee Lamella Clarifier Case Show
