| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-050 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Material: | Standard Container |
|---|---|---|---|
| Weight: | 4500 | Certification: | ISO 9000 |
| Power: | 0.55 | Keywords: | Inclined Plate |
| Color: | Customerized | Warranty: | 1 Year |
| Type: | Lamella Sheet |

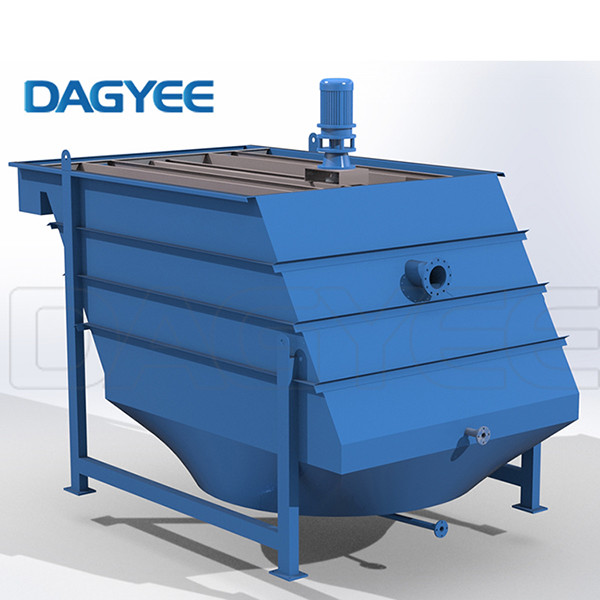

DCL-050 Anti-Corrosion Flocculator Coagulator Non-Woven Wastewater Lamella Type Plate Clarifiers
Lamella Clarifier Introduction
Lamella clarifiers are capable of managing feed water with high concentration of suspended solids. Separation results will vary depending on the feed water quality and types of contaminants. The feed water enters the lamella clarifier through the inlet channel on the top and flows to the bottom of the separator.
The water is led back to the top, on its way the water flows through the lamellas, onto which the solid particles settle. Treated water flows to the top and reaches the outlet by passing a weir. The sludge slides down the lamellas and is collected in the sludge funnel. A rabble rake can be installed to prevent caking of the sludge in the conical hopper. The sludge is exported at intervals.
Lamella Clarifier Equipment Specifications
|
Parameter |
Units |
DCL-050 |
|
Flow Rate |
m3/h |
0-50 |
|
Effective Settling Area |
m2 |
50 |
|
Efficiency |
% |
80-90 |
|
Treated water turbidity |
NTU |
50-100 |
|
Dimensions (Clarifier Only) |
L x W x H (m) |
4.65*2.82*3 |
|
Inlet |
Inch |
8 |
|
Effluent |
Inch |
8 |
|
Sludge outlet |
Inch |
2 |
|
Backwash |
Inch |
2 |
|
Power |
Kw |
0.55 |
|
Weight |
Kg |
4500 |
|
Voltage |
Standard |
380V/3Phase/50Hz |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Lamella Body Epoxy Coated Carbon Steel |
✓ |
|
|
Feed Pump |
o |
|
|
Floculator Tanks |
o |
|
|
Flash & Floc Mixers |
o |
|
|
Sludge Scraper |
o |
|
|
Lamella / Floc Tank Support Galvanised Mild Steel Construction |
✓ |
|
|
Standard Controller |
✓ |
|
|
Lamella Body – 304ss |
o |
|
|
Lamella Body – 316ss |
o |
|
|
Variable Speed Mixer |
o |
|
|
Access Platform and Ladder |
o |
|
|
Sludge Hopper Actuated Valve |
o |
|
|
Sludge pump |
o |
|
Range Of Applications
Recycling and clarifying process water
Separating mud from water
Saving almost totally water consumption
Features Of Lamella Clarifier
Simple structure,without wearing parts
Steady operation,easy operation
Small power,save energy
Small occupy area, low investment, high efficient
Short retention time, high sediment efficiency, no sludge backflow
Advantages
Smaller footprint
Large effective settling area
Improved overflow rates 2 to 4 times
Long time to be use
Normal use without clogging
Even clogging is provided with backwash device Less possibility for injury
Availbailable Designs
Inclined plate length 1–2 m
Plate pitches between 50° and 60°
Allow for self-cleaning, pitches require backwash
Loading rates are 5 to 15m/h
Set up scraper for easy drainage
