| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT2660 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | Metal/Plastic, Stainless Steel | Capacity: | 3000 |
| Usage: | Purifying | Type: | Chemical Dosing |
| Water Inlet Flow: | 1.6-8 | Keywords: | Powder Dosing System |
Dagyee DT2660 Pam Flocculation Preparation Systems Liquid Polymer For Stamp Making
Function with dosing , mixing, conveying and automatic controlling, DAGYEE chemical dosing device is widely used for raw water treatment of power plants, boiler feedwater treatment, oilgathering dewater treatment, all kinds of chemical dosing and wastewater treatment, also can be used for automatic dosing of coagulate, phosphate removing agent, ammonia, whitewash, corrosion inhibitor antisludging agent, etc.
The Specification Of Dissolver Dosing Device
|
Model |
DT2660 |
|
Capacity(L/h) |
3000 |
|
Power(kw) |
2.4 |
|
Powder dosage(kg/h) |
2.5-3.5 |
|
Water inlet flow(m3/h) |
1.6-8 |
|
L(mm) |
2450 |
|
B(mm) |
1270 |
|
H(mm) |
2000 |
|
L1(mm) |
2370 |
|
B1(mm) |
1220 |
|
Net weight(kg) |
790 |
The Feature Of Dissolver Dosing Device

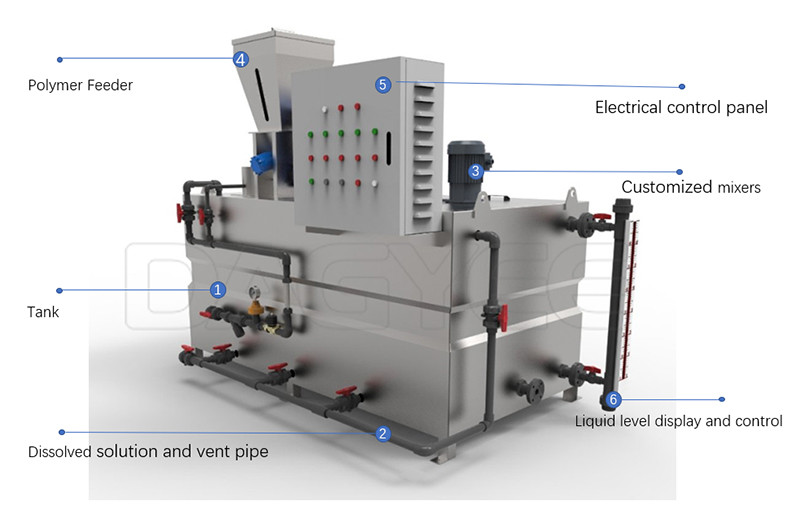

Automatic Polymer Dosing Unit is designed for preparation of solution of powdered flocculant with full-automatic.We can accustom the size of the device to the customer’s request in accordance with the required capacity of the unit. The unit is suitable for continuous operation.
Professional design to integrate three tanks ( mixing tank,equalization tank and storage tank) into single device, which ensuring continuous operation and saving labour cost; Specially suitable for both dry powder and liquid flocculant (optional).
The Application Of Dissolver Dosing Device
It is especially suitable for municipal sewage treatment plants, industrial waste water treatment and other industries which need to add flocculant solution.
It is widely used in sludge dewatering machine, wastewater treatment and various processes (food, chemical industry, dyeing and finishing, papermaking etc.) When the powder is dissolved and added.
It is suitable for dissolving and adding all kinds of dry powder, granule, flocculant and concentrated liquid powder.
The Service Of Company
Wuxi Dajiang Environmental Technology Co., Ltd. supports its customers in every phase of a project, from the inception of an idea or request,through design and testing to launch and installation. Our in-house research, design and development teams work closely with the local teams, drawing on customer and market inputs. Then using stateof-the-art technologies to optimize costs and using our own specifically designed test benches to ensure rigorous, robust testing, we ensure a quality solution is delivered quickly to market.
