| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-040 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Material: | SS304 Carbon Steel | Weight: | 3400 |
|---|---|---|---|
| Size: | 4.2*2.8*3M | Color: | Customerized |
| Padding: | PP/PVC/FRP | Application: | Wastewater Treatment |
| Type: | Automatic | Function: | Efficient Sedimentation Tank |

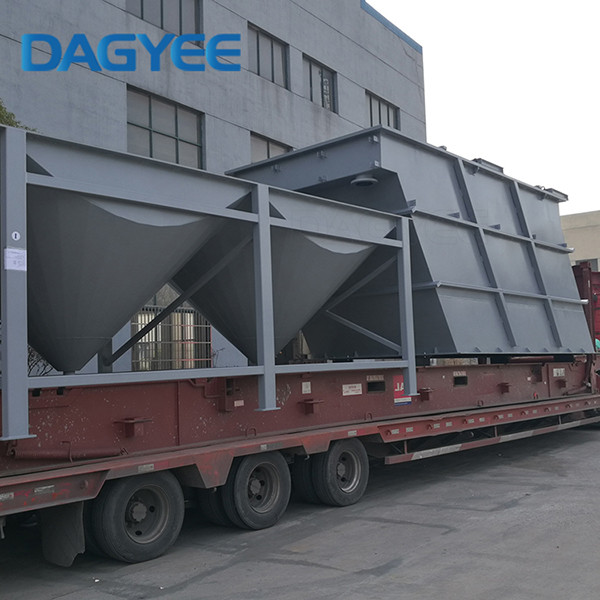

DCL-040 SS304 Carbon Steel High TSS Removal Water Separation PP Material Lamella Plate Clarifier
What Is Lamella Clarifier
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids. They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
40M3/hr Lamella Clarifier Specifications
|
Parameter |
Units |
DCL-040 |
|
Flow Rate |
m3/h |
0-40 |
|
Effective Settling Area |
m2 |
40 |
|
Efficiency |
% |
80-90 |
|
Treated water turbidity |
NTU |
50-100 |
|
Dimensions (Clarifier Only) |
L x W x H (m) |
4.2*2.8*3 |
|
Inlet |
Inch |
6 |
|
Effluent |
Inch |
6 |
|
Sludge outlet |
Inch |
2 |
|
Backwash |
Inch |
2 |
|
Power |
Kw |
0.55 |
|
Weight |
Kg |
3400 |
|
Voltage |
Standard |
380V/3Phase/50Hz |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Lamella Body Epoxy Coated Carbon Steel |
✓ |
|
|
Feed Pump |
o |
|
|
Floculator Tanks |
o |
|
|
Flash & Floc Mixers |
o |
|
|
Sludge Scraper |
o |
|
|
Lamella / Floc Tank Support Galvanised Mild Steel Construction |
✓ |
|
|
Standard Controller |
✓ |
|
|
Lamella Body – 304ss |
o |
|
|
Lamella Body – 316ss |
o |
|
|
Variable Speed Mixer |
o |
|
|
Access Platform and Ladder |
o |
|
|
Sludge Hopper Actuated Valve |
o |
|
|
Sludge pump |
o |
|
Range Of Applications
Heavy Metals Removal
Filter Press Belt Wash
Battery Plant Heavy Metals Removal
Hazardous Waste Remediation
Brine Clarification
Plating and Finishing Wastes
Food & Beverage Waste
Trace Metals Reduction
Storm Water Management
Bleach Plant Wash Water
Incinerator Wet Scrubber
Potable Water Pretreatment
Features Of Lamella Clarifier
Flash mixing/flocculation tank with agitator
Full glass steel or stainless steel structure
Concrete tank design
Special coatings and plates
Integrated mechanical sludge thickener
Overhaul platforms and ladders
In-house laboratory analysis to optimize equipment
Drinking water design
Gasket and removable cover
Automatic desilting
Instrumentation and control
Chemical feed equipment
Sludge treatment and dewatering
Pilot size units for field testing
Advantages
Smaller footprint
Large effective settling area
Improved overflow rates 2 to 4 times
Long time to be use
Normal use without clogging
Even clogging is provided with backwash device Less possibility for injury
Availbailable Designs
Inclined plate length 1–2 m
Plate pitches between 50° and 60°
Allow for self-cleaning, pitches require backwash
Loading rates are 5 to 15m/h
Set up scraper for easy drainage
Dagyee Lamella Clarifier Focus On More Details
