| Place of Origin: | China |
|---|---|
| Brand Name: | DAF Clarifier |
| Certification: | SGS |
| Model Number: | DAF-060 |
| Minimum Order Quantity: | 1 SET |
| Price: | Discuss in detail as required |
| Packaging Details: | Wooden case, standard container, Can be specified by customers |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100SET |
| Size: | 6.8*3.2 | Surfce Treat: | Polished & Sandblast |
|---|---|---|---|
| Warranty: | 2 Years | Condition: | New |
| Payment: | Paypal, T/T,Western Union, Escrow,MoneyGram | Product Name: | Dissolved Air Flotation |
| Material: | Stainless Steel 304,Anti-corrosion Carbon Steel | After-sales Service Provided: | Online Support,Video Technical Support,commissioning And Training |
| Capacity: | 60m3/h | Application: | Mineral Water,Oil Field |

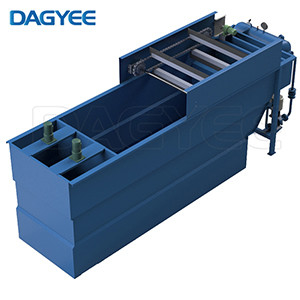

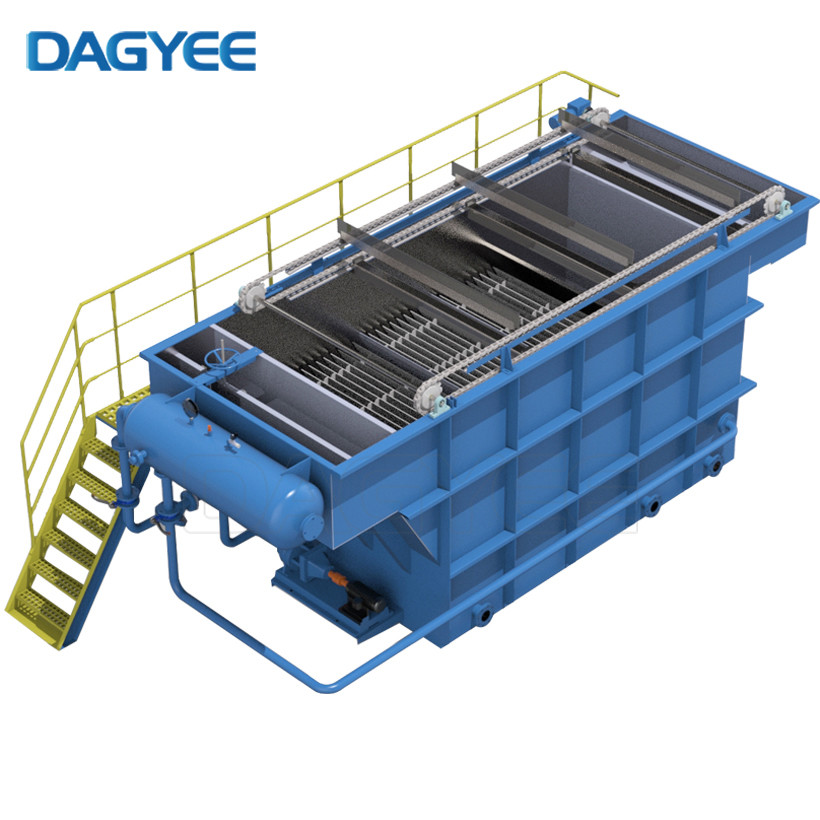

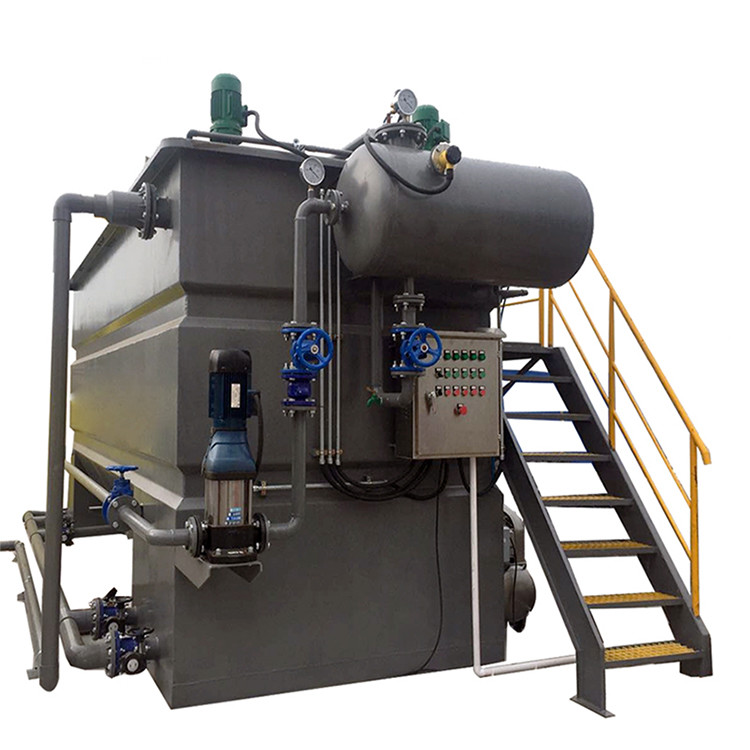

Dissolved Air Flotation DAF Industrial Wastewater
DAF is designed to mainly remove fats, oils and grease (FOG),suspended solids (TSS), parts of biological oxygen demand (BOD) and chemical oxygen dem and (COD) that hard to be dissolved in water and other pollutants from waste water. The process is simple - tiny bubbles attach to solid contaminants causing them to float and then sludge is skimmed off the surface of the water - but designing a DAF system for a real-world application isn't quite as simple.
40m3/hr Dissolved Air Flotation DAF Specification
|
Parameter |
Units |
DAF 040 |
|
DAF Flow Rate |
m3/hr |
40 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
4.7 |
|
Footprint |
m |
8*3.6 |
|
Inlet |
in |
6 |
|
outlet |
in |
6 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
Dissolved Air Flotation DAF Standard Features
Adjustable effluent weir troughs
Epoxy coated carbon steel tank
Factory tested
Seamlessly integrates with other Hydro-Flo offered wastewater products
Stand alone operation
Standard units can be manufactured for flows from 5 gpm to 3500 gpm and above, in a single above grade tank
Structural steel support legs
Why Chose Dissolved Air Flotation DAF?
Because we have achieved a very high standard by means of our research, based on empirical values, especially by applying an innovative process technology based on homogenization of liquid due to micro bubbles and their effect on flotation and oxidation. This is a guarantee for a frictionless operation, even after expiring of the guarantee period.
Application Dissolved Air Flotation DAF
Industrial Wastewater Treatment
Aquaculture
Tanneries
Pulp & paper
Slaughterhouses
Food processing
Breweries and wineries
