| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DLS |
| Minimum Order Quantity: | 1 set |
| Price: | 999-9999 |
| Packaging Details: | Wooden packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
| Material: | Q345/SS304/SS316L | Keywords: | Customized Shaftless Screw Conveyor |
|---|
Shaftless screw conveyor according to the building material, chemical industry, environmental protection,electric power, medicine, metallurgy, food and other industries in the LS type, GX type screw conveyor conveying grinding cut big, viscosity is bigger, is easy to agglomerate, wrapping easily material formed when material blockage, suspension bearing damage to the actual situation of screw machine doesn't work and independent research and development of a new type of screw conveyor. This product is suitable for continuous and uniform conveying of loose, sticky and easily wound materials, the temperature of conveying materials is up to 100℃, the maximum inclination Angle is less than 30°.
| Model | WLS150 | WLS200 | WLS250 | WLS300 | WLS400 | WLS500 |
| Screw diameter(mm) | 150 | 184 | 237 | 284 | 365 | 470 |
| Casing pipe diameter | 180 | 219 | 273 | 351 | 402 | 500 |
| Operating angle(α) | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° |
| Max delivery length(m) | 12 | 13 | 16 | 18 | 22 | 25 |
| Capacity(t/h) | 2.4 | 7 | 9 | 13 | 18 | 28 |

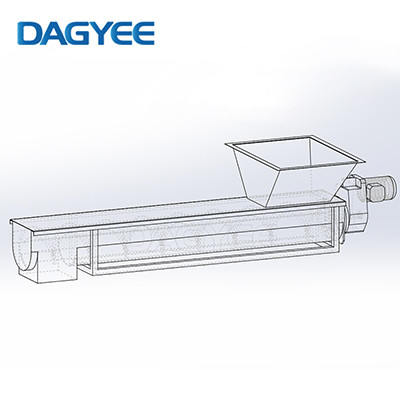

This product is mainly composed of drive device, head assembly, housing, no shaft helix, slot liner, feed port, discharge port, cover (when needed), base, etc.
Sewage treatment filter screen and dewatered sludge.
Industrial and living areas deal with industrial waste and domestic waste.
Paper, fiber industry processing strips, ribbon materials, etc.
Factory solid fuel and waste such as: waste residue, ash, straw, etc.
In food and related industries that require frequent cleaning of conveyors.
Agricultural processing of manure.
Shaftless helical (screw) conveyors are designed for handling difficult and heterogeneous materials such as municipal solid waste, screening and floating matter substances, dehydration, thickening, conditioning sludge, packaged foods, creams or pastes, and waste from meat, fish, fruit and vegetable processing.
Main application areas are: wastewater treatment, sugar mill waste, fish industry, solid waste treatment, fruit and vegetable processing, beverage industry, pulp and paper, chemicals, food industry, meat processing plants, slaughterhouses, restaurants, canteens, general catering.
