| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-5F |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Material: | Carton Or OEM |
|---|---|---|---|
| Connection Type: | With A Clamp /BSP Female | Function: | Filtering Suspended Matter |
| Size: | Customized | Length: | 10"/20"/30"/40" |
| Color: | Silver | Application: | Filtration |
DYG-5F 304 316 Industrial PP String Wound 5 Cartridges Filter Housings 10'' 20'' 30'' 40'' With Flange
Cartridge filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it’s used in the acid and other special occasions,it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.
5 Cartridges Filter Housings With Flange Specification
| Model | DYG-5F |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
| Model |
Max. Flow Rate (m3 /h) |
Max. Operating Conditions (bar/°C) |
Filter specifications |
Inlet/ Outlet |
Height mm |
Max. Cartridge Outside Diameter |
|
DYG-5F-10'' |
2.5 M3/H |
0-1.0MPa |
Ø65*250 |
3/4'' |
550 |
Ø219 |
|
DYG-5F-20'' |
5 M3/H |
0-1.0MPa |
Ø65*500 |
1'' |
850 |
Ø219 |
|
DYG-5F-30'' |
7.5 M3/H |
0-1.0MPa |
Ø65*750 |
1 1/2'' |
1100 |
Ø219 |
|
DYG-5F-40'' |
10 M3/H |
0-1.0MPa |
Ø65*1000 |
2'' |
1390 |
Ø219 |
5 Cartridges Filter Housings 10'' With Flange Specification
| Model | DYG-5F-10'' |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø219mm*550mm |
|
Max. Flow Rate (m3 /h) |
2.5 |
|
Max. Operating Conditions (bar/°C) |
10/150 |
|
Inlet/Outlet (BSP female) |
3/4'' |
|
Length of Filter Cartridge |
10'' |
|
No. of Filter Cartridges |
5 |
|
Max. Cartridge Outside Diameter(mm) |
Ø65 |
5 Cartridges Filter Housings 20'' With Flange Specification
| Model | DYG-5F-20'' |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø219mm*830mm |
|
Max. Flow Rate (m3 /h) |
5 |
|
Max. Operating Conditions (bar/°C) |
10/150 |
|
Inlet/Outlet (BSP female) |
1'' |
|
Length of Filter Cartridge |
20'' |
|
No. of Filter Cartridges |
5 |
|
Max. Cartridge Outside Diameter(mm) |
Ø65 |
5 Cartridges Filter Housings 30'' With Flange Specification
| Model | DYG-5F-30'' |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø219mm*1100mm |
|
Max. Flow Rate (m3 /h) |
7.5 |
|
Max. Operating Conditions (bar/°C) |
10/150 |
|
Inlet/Outlet (BSP female) |
1 1/2'' |
|
Length of Filter Cartridge |
30'' |
|
No. of Filter Cartridges |
5 |
|
Max. Cartridge Outside Diameter(mm) |
Ø65 |
DAGYEE Cartridge Housing Features
Best quality with reasonable price
Offer OEM services for all customers
Fast ,accurate quotes and flexible payment
Strong technical surpport

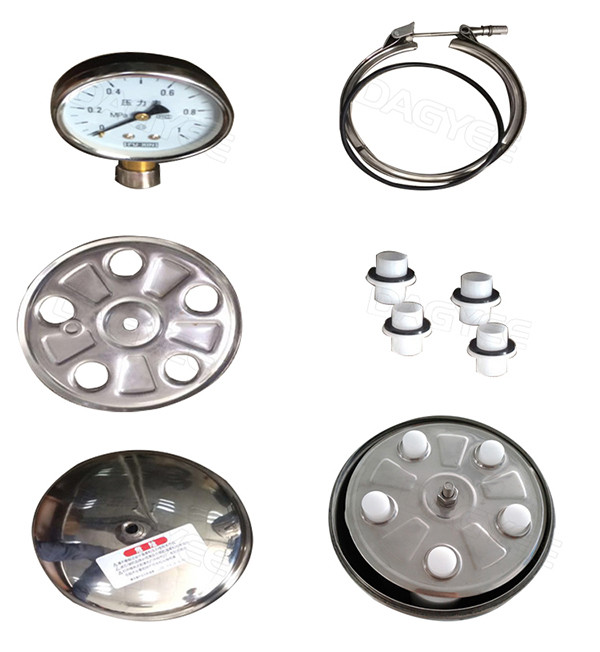

DAGYEE Cartridge Housing Shell Details
