| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DPF |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Material: | Carton Or OEM |
|---|---|---|---|
| Weight: | 150-1500 | Size: | 10-40" |
| MOQ: | 1 Set | Capacity: | 1-65m3/hr |
| Application: | Filtration | Warranty: | 1 Year |

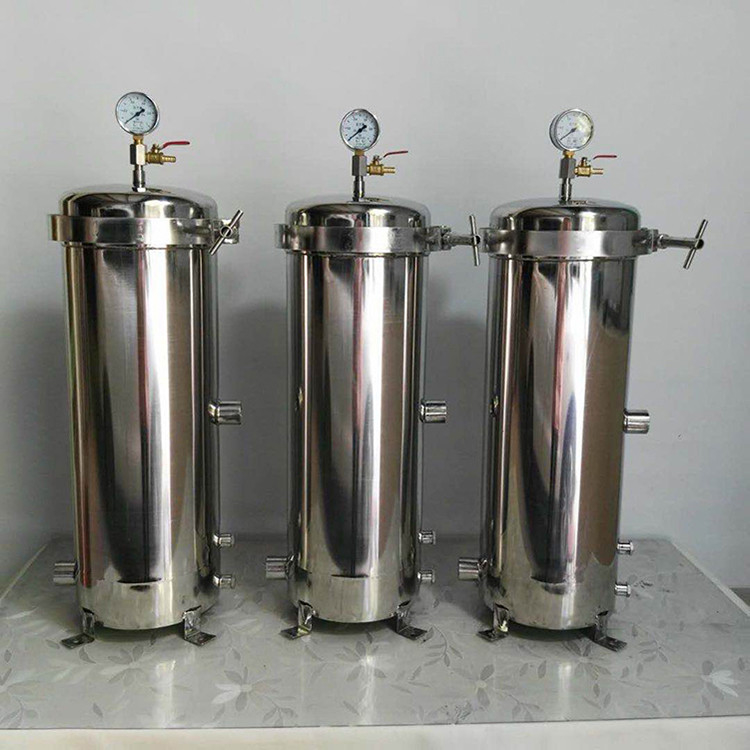

DPF 304 High Precision Security Multi Bag Cartridge Stainless Steel Filter Housing
DAGYEE Cartridge Housing
Multi-barrel stainless steel liquid filter housing is a high-quality solution for high-volume filtration. Our multi-cartridge housing can accommodate 5 to 22 standard 30-inch and 40-inch filter elements, and the liquid filtration flow rate is up to 65 m3/hr.
Commercial and industrial filter housing liquid containers are ideal for chemical systems, commercial RO and membrane water treatment systems for pre-filtration, high-purity water, post-filtration, food and beverage, industrial facilities, etc.
We always have a large stock of stainless steel liquid housings for commercial and industrial use. Most of the models shown are available from stock immediately.
Technical Parameters Of Cartridge Housing
|
Cartridge Housing Technical |
|||||
|
Model |
Size |
Dimension mm |
Flow m3/hr |
Inlet Outlet |
Pressure |
|
DPF-10-170 |
10'' |
170*430 |
1-2 |
1'' |
0.6Mpa |
|
DPF-10-200 |
10'' |
200*430 |
2-3 |
1'' |
0.6Mpa |
|
DPF-20-170 |
20'' |
170*690 |
3-4 |
1'' |
0.6Mpa |
|
DPF-20-200 |
20'' |
200*690 |
4-6 |
1 1/2'' |
0.6Mpa |
|
DPF-20-250 |
20'' |
250*690 |
6-8 |
2'' |
0.6Mpa |
|
DPF-30-200 |
30'' |
200*940 |
7-8 |
1 1/2'' |
0.6Mpa |
|
DPF-30-250 |
30'' |
250*940 |
10-11 |
2'' |
0.6Mpa |
|
DPF-40-200 |
40'' |
200*1240 |
9-11 |
2'' |
0.6Mpa |
|
DPF-40-250 |
40'' |
250*1240 |
13-15 |
2'' |
0.6Mpa |
|
DPF-40-300 |
40'' |
300*1350 |
14-18 |
2'' |
1.0Mpa |
|
DPF-40-320 |
40'' |
320*1350 |
16-20 |
2'' |
1.0Mpa |
|
DPF-40-350 |
40'' |
350*1350 |
20-30 |
2 1/2'' |
1.0Mpa |
|
DPF-40-400 |
40'' |
400*1430 |
30-40 |
3'' |
1.0Mpa |
|
DPF-40-450 |
40'' |
450*1450 |
50-65 |
3'' |
1.0Mpa |
DAGYEE Cartridge Housing Feature
Low pressure drop
Permanently piped filter housing open without special tools and without disturbing the piping
Machined cover gasket groove provides positive O-ring sealing
Easy to clean
In-line inlet and outlet
Stainless steel internals
Standard Options
Carbon steel, 304 or 316 stainless steel housings
Accommodates 10, 20, 30 or 40-inch cartridge
DAGYEE Cartridge Housing Removal
Suspended matter
Algae
Impurities
Fine particles
