| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO |
| Model Number: | LW400-1200 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate with buyers |
| Packaging Details: | Decanter Centrifuge 2300*700*1300 Standard wooden box, container |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 80 set per month |
| Keywords: | Alumina Decanter Centrifuge | Material: | 304 316L |
|---|---|---|---|
| Capacity:: | 1-8m3/h | Application: | Processing Sludge Dewatering WWTP |

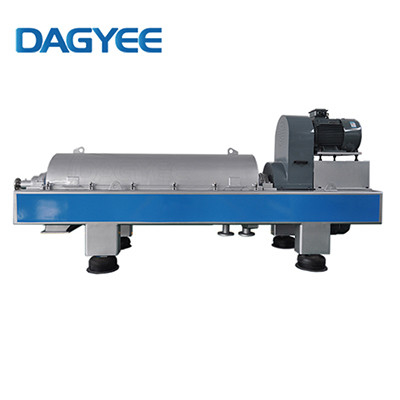

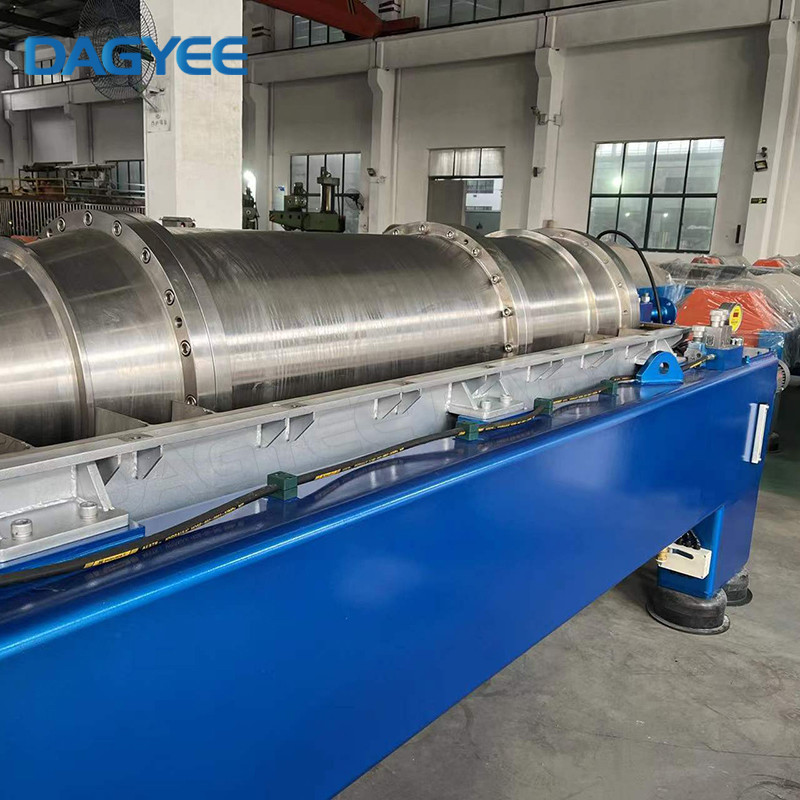

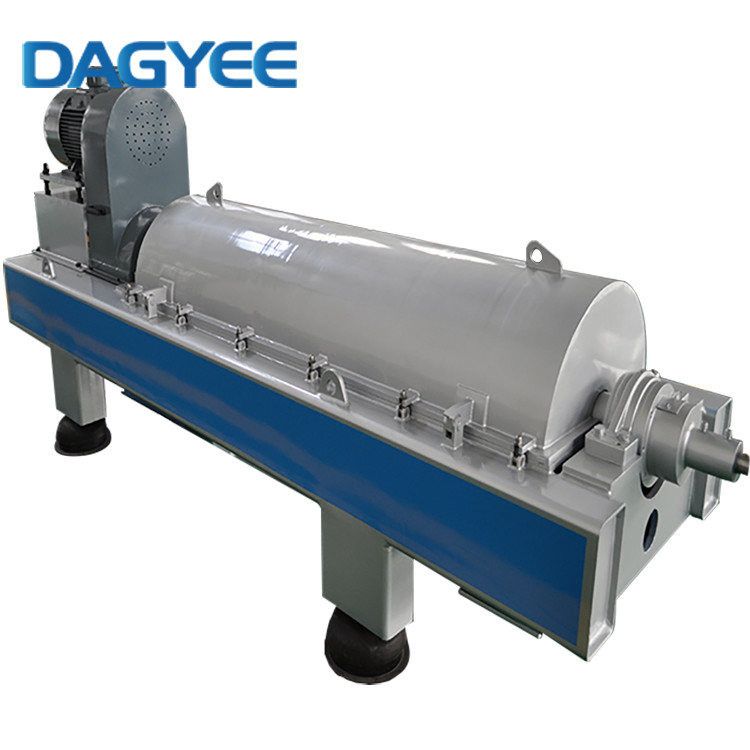

Stainless Steel Horizontal LW Series Alumina Decanter Centrifuge Drilling Mud Solids
What Is Screw Decanter Centrifuge ?
This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker, differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotating of bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day.
Screw Decanter Centrifuge Technical Table
| Model | LW400-1600 |
|
Drum diameter mm |
400 |
|
Length mm |
1600 |
|
Maximum speed rpm |
3400 |
|
Hightest separation factor g |
2581 |
|
Mixture capacity m3/h |
2-10 |
|
Motor Power Kw |
22/7.5 |
|
Host weight Kg |
2400 |
|
Dimension(L*W *H) mm |
3850*1000*1250 |
Screw Decanter Centrifuge Feature
Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return
Spiral stoker blades: Surfacing welding tungsten carbide grinding
Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.
Main bearing: NSK Brand
Main sealing parts: Taiwan Brand, material is Nitrile butadiene rubber
Electrical protection: overload, phase loss, torque protection
Main and vice inverter use common DC bus, vice motor’s function is generating electricity ( save electricity)
PLC remote control
Screw Decanter Centrifuge Application
Food: Fruit and Vegetable juices
Starch, Protein
Molasses, Stillage
Oils and Fats: Fish oil, Gelatine
Environmental protection/Recycling
Drilling mud
Industrial wastewater
Municipal wastewater
Screw Decanter Centrifuge Process
