| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DCL-020 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Material: | Carbon Steel Or Stainless Steel | Weight: | 2300 |
|---|---|---|---|
| Size: | 3.35*2.22*3 | Power: | 0.55 |
| Product Name: | Lamella Clarifier | Application: | Textile Wastewater |
| Type: | Automatic | Function: | Reduced Footprint |

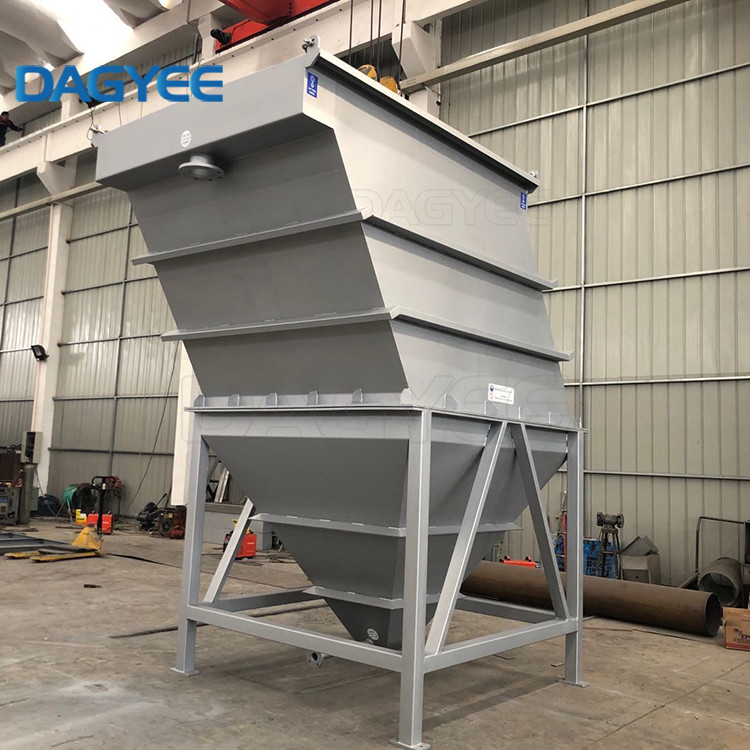

Dagyee DCL-020 SUS304 316 Lamella Clarifier Food Processing And Packaging
What Is Lamella Clarifier
The format of the inclined plate sedimentation water purifier is to install a 60° inclined pipe above the sludge suspension layer. By adding flocculant to the sludge, the suspended solids or flocculent alum flowers accumulate into thin sludge, and then under the inclined pipe In the superficial area, the sludge suspension layer slides back to rely on gravity, and then settles into the sludge collection hopper, and is discharged into the sludge tank through the sludge pipe for separate treatment or comprehensive utilization. The supernatant gradually rises to the collection pipe for discharge or reuse.
Lamella Clarifier Equipment Specifications
|
Parameter |
Units |
DCL-020 |
|
Flow Rate |
m3/h |
0-20 |
|
Effective Settling Area |
m2 |
20 |
|
Efficiency |
% |
80-90 |
|
Treated water turbidity |
NTU |
50-100 |
|
Dimensions (Clarifier Only) |
L x W x H (m) |
3.35*2.22*3 |
|
Inlet |
Inch |
4 |
|
Effluent |
Inch |
4 |
|
Sludge outlet |
Inch |
2 |
|
Backwash |
Inch |
2 |
|
Power |
Kw |
0.55 |
|
Weight |
Kg |
2300 |
|
Voltage |
Standard |
380V/3Phase/50Hz |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Lamella Body Epoxy Coated Carbon Steel |
✓ |
|
|
Feed Pump |
o |
|
|
Floculator Tanks |
o |
|
|
Flash & Floc Mixers |
o |
|
|
Sludge Scraper |
o |
|
|
Lamella / Floc Tank Support Galvanised Mild Steel Construction |
✓ |
|
|
Standard Controller |
✓ |
|
|
Lamella Body – 304ss |
o |
|
|
Lamella Body – 316ss |
o |
|
|
Variable Speed Mixer |
o |
|
|

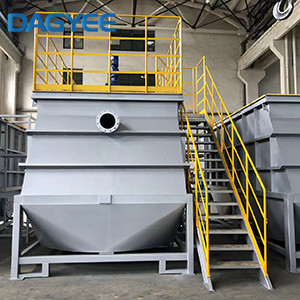

Access Platform and Ladder |
o |
|
|
Sludge Hopper Actuated Valve |
o |
|
|
Sludge pump |
o |
|
Range Of Applications
Extremely smooth surface (mud does not stick)
High resistance to shocks (stages of loading, unloading, assembly)
Excellent hardness values, stiffness, elasticity and tensile strenght
Resistance to breakage from mechanical stress
Abrasion resistance
Excellent electrical and thermal insulating properties
Unassailable to chemical agents
No water absorption
Advantages Of Lamella Clarifier
Projected Settling Area.
Inclined Plates allow for a compact design, therefore reducing the need for valuable floor space. The plates are angled at 60° allowing for an efficient projected surface area. Larger angles cast a smaller projected surface area, and shallower angles disrupt sludge flow and potentially could clog the plates. In the diagram, the Total Projected Surface Area graphically compares the equivalent floor space needed. One Standard Plate Pack is equivalent to holding tank or a circular thickener.
Retention Time.
Design allows for a 50-60 minute retention time. This is a much better retention time than a traditional Parkson Style Clarifier which has nearly half the retention time. By having a greater retention time, this allows for more settling time, which improves the counter flowing pattern as described above. Moreover, a larger retention time Reduces the Risk to Overrun the Clarifier.
Available Designs Of Lamella Clarifier
Inclined plates spacing of 80-100 mm
Inclined plate length 1–2 m
Plate pitches between 50° and 60°
Allow for self-cleaning, pitches require backwash
Typical loading rates are 5 to 15m/h
Set up scraper for easy drainage
Dagyee Lamella Clarifier Focus On More Details
