| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | SGS |
| Model Number: | DL302 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | According to buyer requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 SETS PET MONTH |
| Product Name: | Screw Press Dehydrator Wwtp | DS Capacity: | 60-100 Kg/h |
|---|---|---|---|
| Power: | 1.11Kw | Sludge Capacity M3/h: | 2-30 M3/hr |

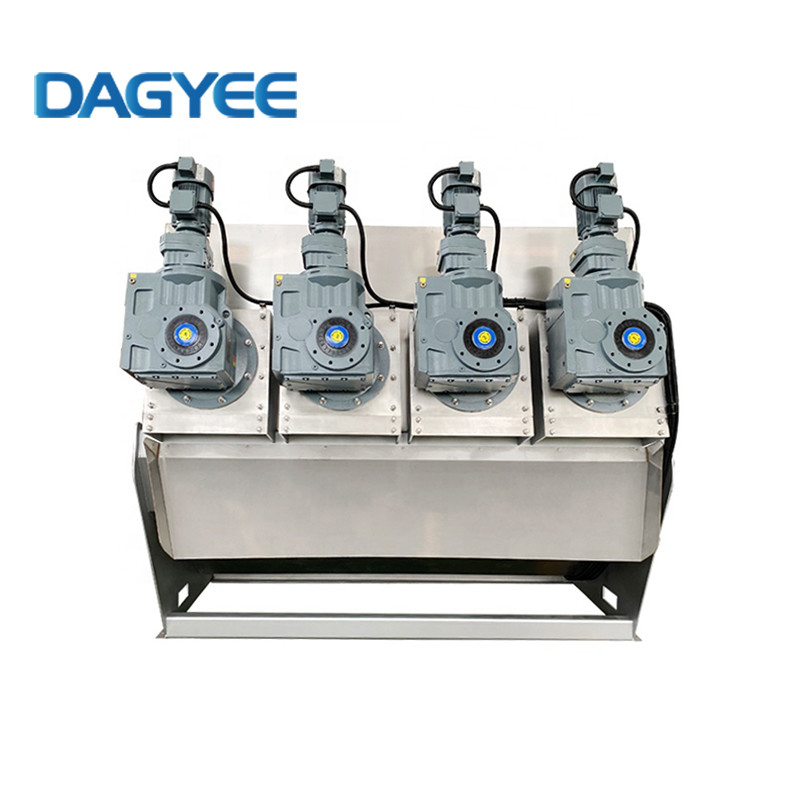

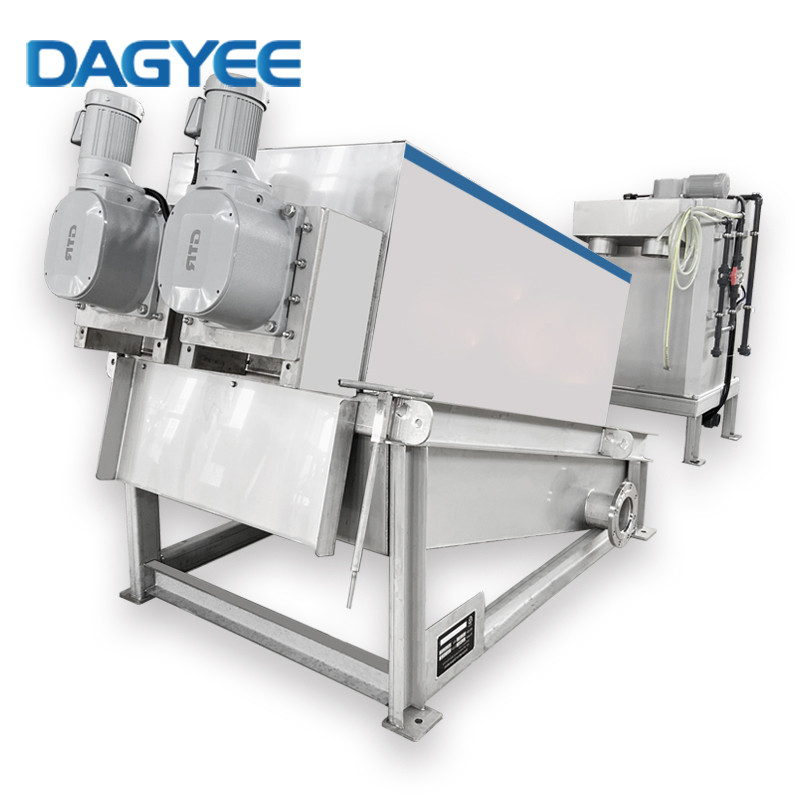

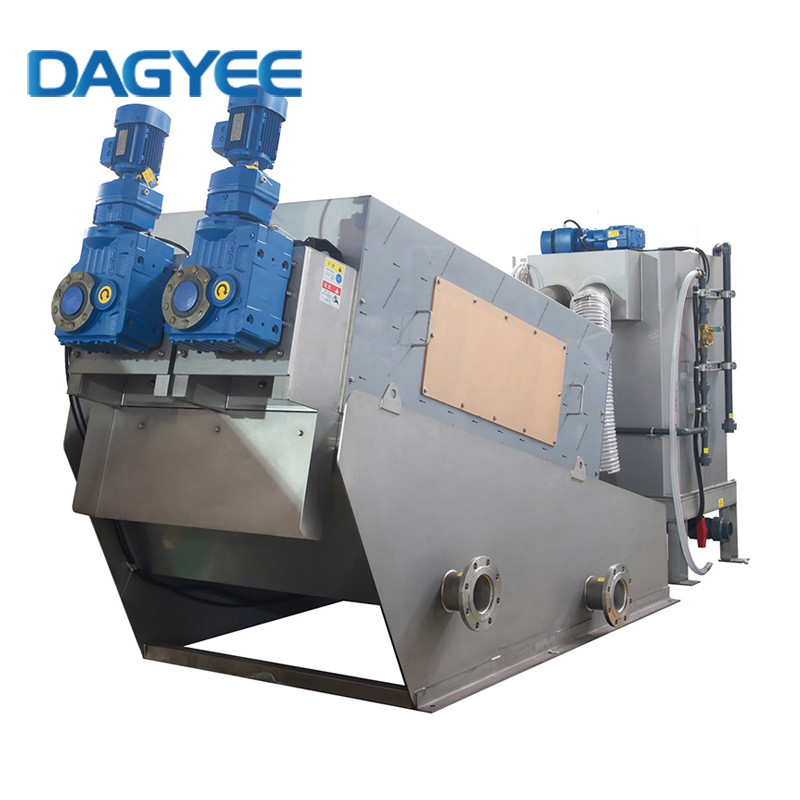

Automatic Dewatering Stacked Screw Sludge Dehydrator Multipal Industrial Wastewater Treatment
Basically, both the public & private sectors are required to dispose the sludge which is approved by industries. Sludge dewatering is totally focused on the reducing weight as well as volume of sludge & also on cost & transportation services. First step of Sludge dewatering is removing water from it so by removing water it will impact on reducing volume & weight of sludge.

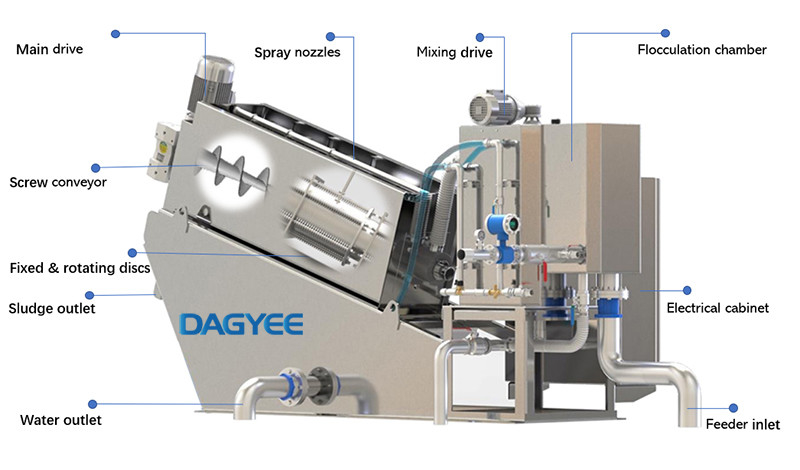

Screw Press Dehydrator Technical
|
Model |
DL302 |
|
DS capacity kg/h |
60--100 kg/h |
|
Sludge capacity m3/h(2-50g/L) |
2-30 |
|
Spiral diameter mm |
￠310*2 |
|
Discharge Distance mm |
495 |
|
Size L*W*H mm |
3455*1295*1600 |
|
Net.Kg |
1200 |
|
Run Kg |
2230 |
|
Power Kw |
1.11 |
|
Washing Q L/h |
80 |
No secondary pollution
The screw shaft rotational speed about 2~3r/min, no vibration and noise is very small
Only need a small amount of water for self-cleaning, no secondary water pollution
Sludge runs at a slow operating condition. The smell does not spread
Screw Press Dehydrator Applications
All range of industries ETP & STP
Faecal Sludge management
Primary sludge and biological sludge dewatering
Wastewater treatment plants – New / Existing
