| Place of Origin: | China |
|---|---|
| Brand Name: | Screw Press Dehydrator |
| Certification: | CE |
| Model Number: | DL132 |
| Minimum Order Quantity: | 1 set |
| Price: | effective solutions |
| Packaging Details: | Standard wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets per month |
| Product Name: | Screw Press Dehydrator | DS Capacity: | 12-20 Kg/h |
|---|---|---|---|
| Material: | Stainless Steel SUS304 SUS316 | Sludge Treatmnt Capacity: | 0.4-6 M3/hr |
| Application: | Sludge Dewatering | Function: | Reduce Cleaning Water Consumption |

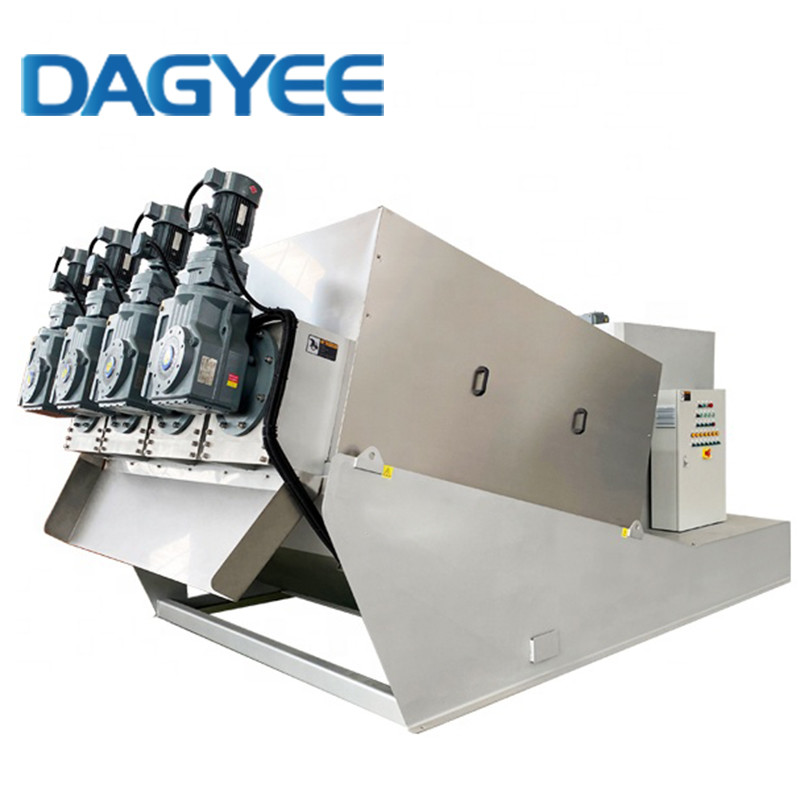

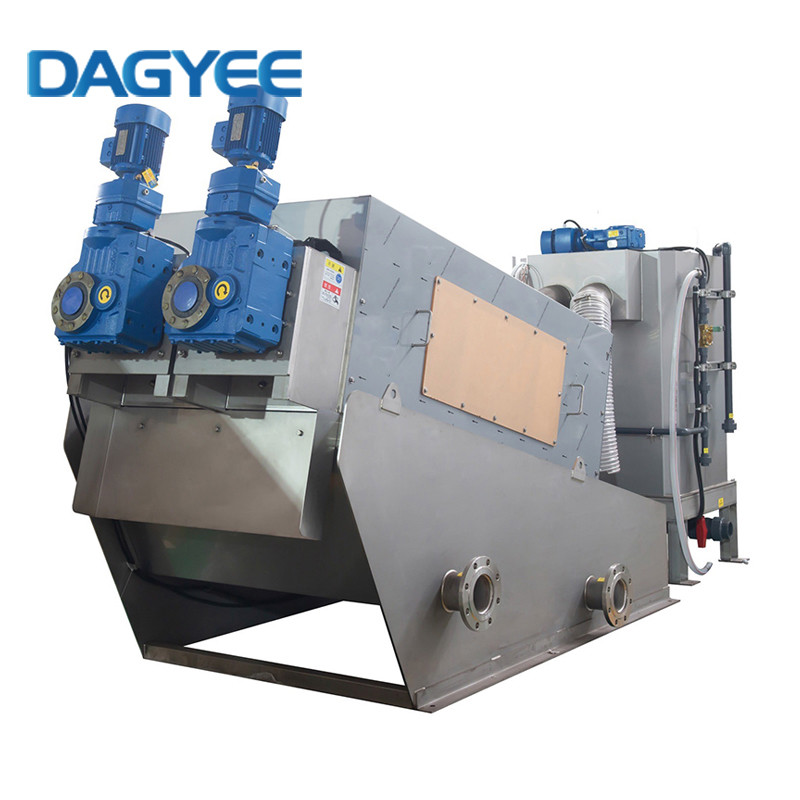

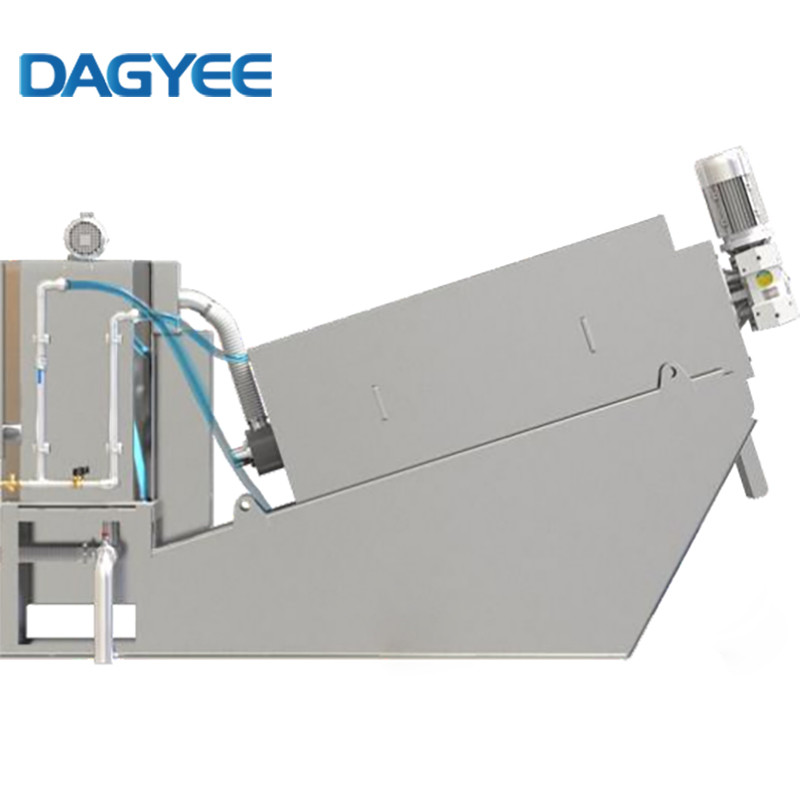

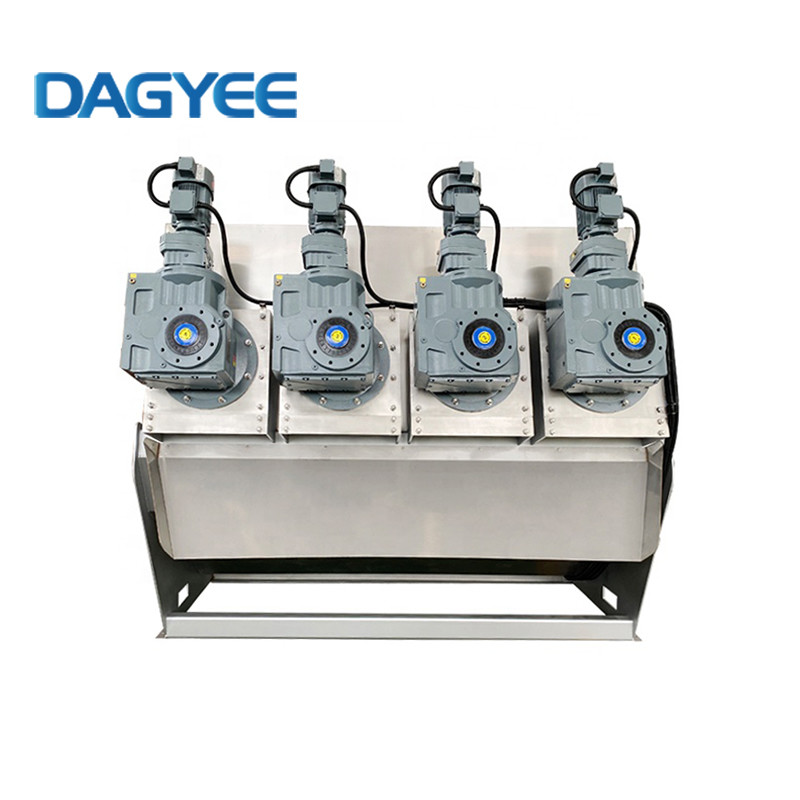

Multi Plate Screw Press Sludge Dewatering System
Sludge dewatering equipment is not intended to treat the sludge or liquid but; it only separates the liquid components & solid components so it will get easier & cost effective to handle the separate phases of the disposal. Once the final sludge has been dewatered, then liquid is treated in ETP/STP & solid sludge is disposed.
The main purpose of Sludge dewatering machine is to minimize the handling and disposal. Sludge dewatering press is the most cost effective method of dewatering, and hence helps to sustain the environmental objectives of company.
Screw Press Dehydrator Technical Parameters
| Model | 132 |
DS capacity kg/h | 12-20 kg/h |
Sludge capacity m3/h | 0.4-6 |
Spiral diameter mm | ￠130*2 |
Discharge Distance mm | 250 |
Size L*W*H mm | 2069*910*1040 |
Net.Kg | 275 |
Run Kg | 450 |
Power Kw | 0.62 |
Washing Q L/h | 48 |
Screw Press Dehydrator Features
Automatic continuous operation
Compact design with flocculation and dewatering
Low power and water consumption
Low operation cost
No filter cloth, no clogging
No need for sludge thickener
Easy operation and maintenance
No vibration and noise
Screw Press Dehydrator Benefits
Low Running Cost
Power-use: less than 5% of centrifuge.
Water-use: less than 0.1% of belt filter press. Polymer: saving around 60%
Room: saving more than 60% of the investment for dehydration room
Non-clogging
Self-cleaning with small amount of water
Suit for Oily Sludge
Screw Press Dehydrator Detail
