| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT430 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | 304 316 | Capacity: | 430 |
| Timing: | 1.0-1.5h | Weight: | 350KG |
| Application: | Chemical Storage | Warranty: | 1 Year |

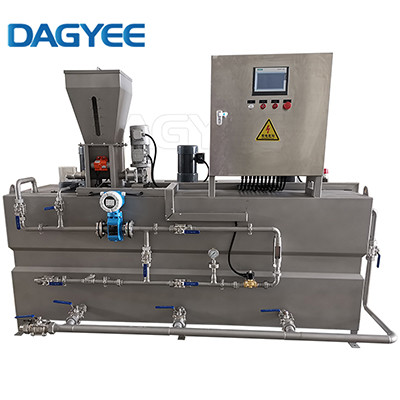

Automatic Polymer Dosing Unit
Product structure

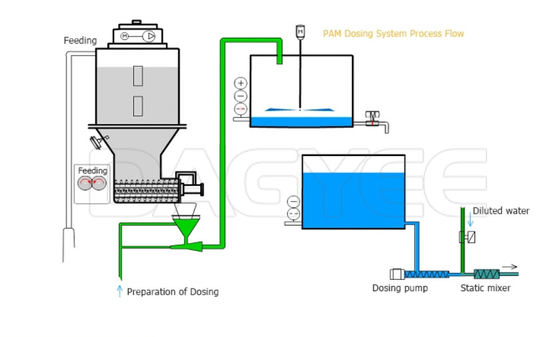

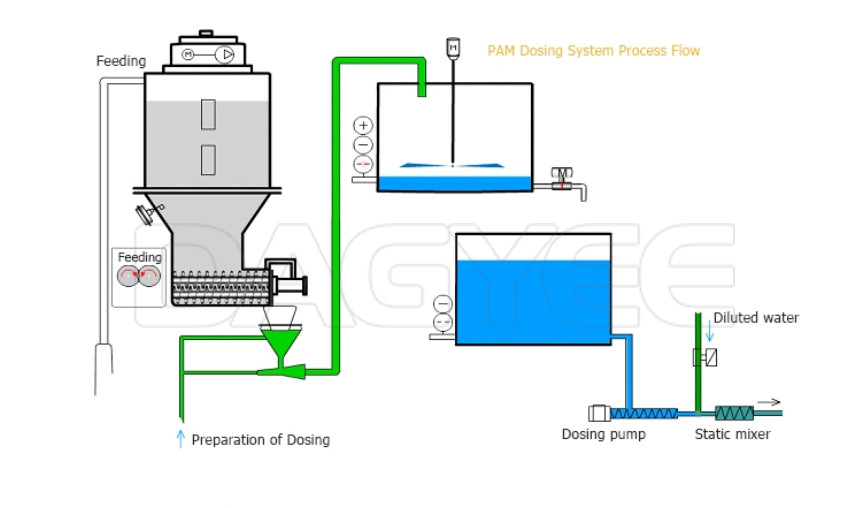

This device is an automatic and continuous powder dispensing and dosing system.The dry powder enters the premix and water from the screw at the bottom of the hopper for premix, and the wet material enters the mixing tank for dilution and mixing, and is prepared according to the concentration required by the user.
The preparation solution goes from the preparation tank to the curing tank and then into the storage tank. When the liquid level of the storage tank is at a high level, the preparation process will automatically stop, and when the solution drops to a low level, the batching process will automatically start.Agitator is set in both preparation tank and curing tank to ensure the dilution and curing of reagents.The prepared flow rate and concentration can be determined by adjusting the inlet flow rate and the rotating speed of the screw shaft.
Optional equipment
• Automatic powder hopper loading
• Minimum level probe in the powder hopper
• Stirrer in the batching tank
• Vibrator for hopper
• Prefabricated post-dilution systems
Product description
A comple te range of polyme r batching and me t ering sys tems.The polymer preparation unit automatically prepares polymer solutions which are
used as coagulants for the eventual removal of suspended particles in the water treatment processes of a number of applications from swimming pool maintenance through to the various stages of wastewater treatment, as well as oil recovery, colour
removal, paper production and mineral processing.

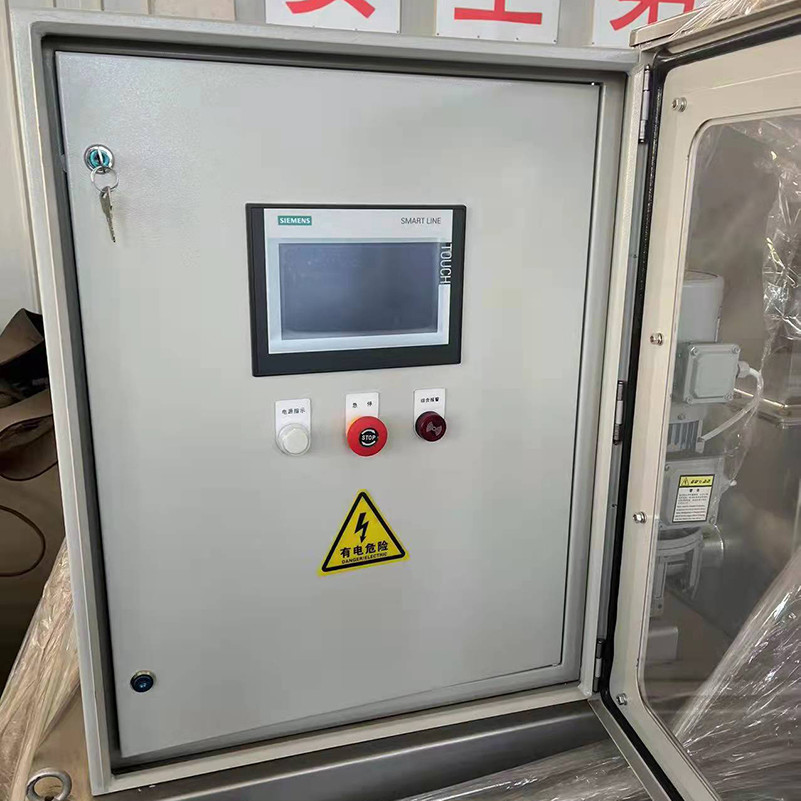

The range also comes with a variety of electrical control panels, mixers,diaphragm pumps and tank sizes to offer an optimum solution for every application.
Its design also means that Dagyee offers flexible and compact footprint solutions to fit even confined spaces.
Applications
Product serie
|
DT |
Capacities |
Tank |
Capacity |
Timing |
Weight |
Power |
|
Model |
(L/h) |
Volume(L) |
(m³/h) |
(h) |
(Kg) |
KW) |
|
DT200 |
200 |
350 |
0.12-0.6 |
1.0-1.5 |
250 |
0.54 |
|
DT430 |
430 |
750 |
0.3-1.5 |
1.0-1.5 |
350 |
0.92 |
|
DT958 |
958 |
1580 |
0.6-3 |
1.0-1.5 |
480 |
1.3 |
|
DT1340 |
1340 |
2200 |
0.8-4 |
1.0-1.5 |
560 |
1.7 |
|
DT2660 |
2660 |
4050 |
1.6-8 |
1.0-1.5 |
790 |
2.4 |
|
DT4165 |
4165 |
6170 |
2.4-12 |
1.0-1.5 |
1050 |
3.2 |
|
DT6660 |
6660 |
9610 |
4.2-20 |
1.0-1.5 |
1200 |
4.8 |
|
DT10940 |
10940 |
15780 |
6-30 |
1.0-1.5 |
1450 |
6.4 |
Feature
