| Place of Origin: | China |
|---|---|
| Brand Name: | Screw Press Dehydrator |
| Certification: | CE |
| Model Number: | DL303 |
| Minimum Order Quantity: | 1 set |
| Price: | effective solutions |
| Packaging Details: | Standard wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 sets per month |
| Product Name: | Screw Press Dehydrator | DS Capacity: | 90-150 Kg/h |
|---|---|---|---|
| Material: | Stainless Steel SUS304 SUS316 | Sludge Treatmnt Capacity: | 3-45 M3/hr |
| Application: | Sludge Dewatering | Function: | Reduce Cleaning Water Consumption |

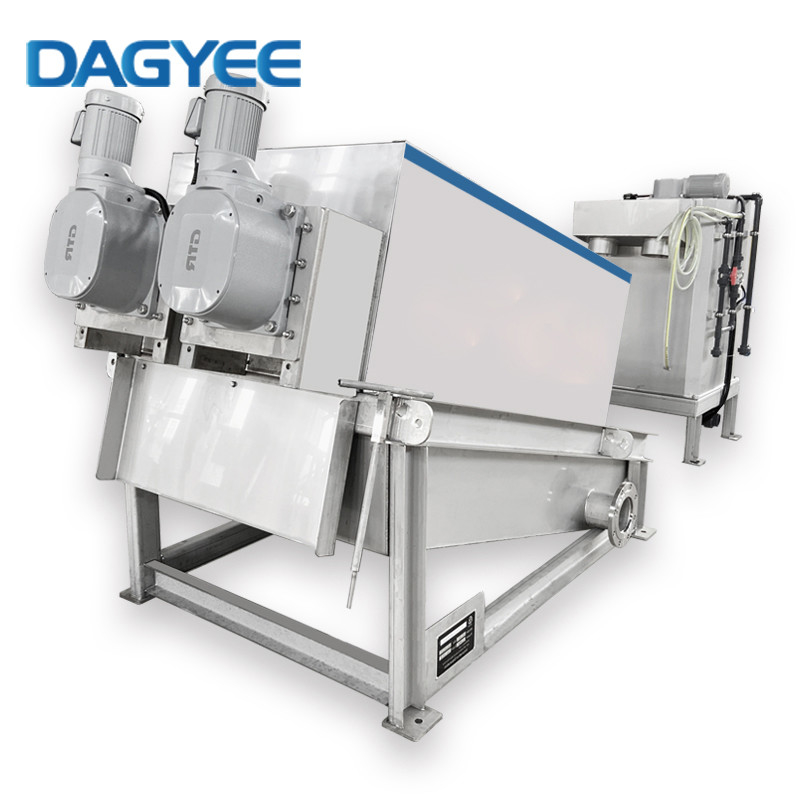

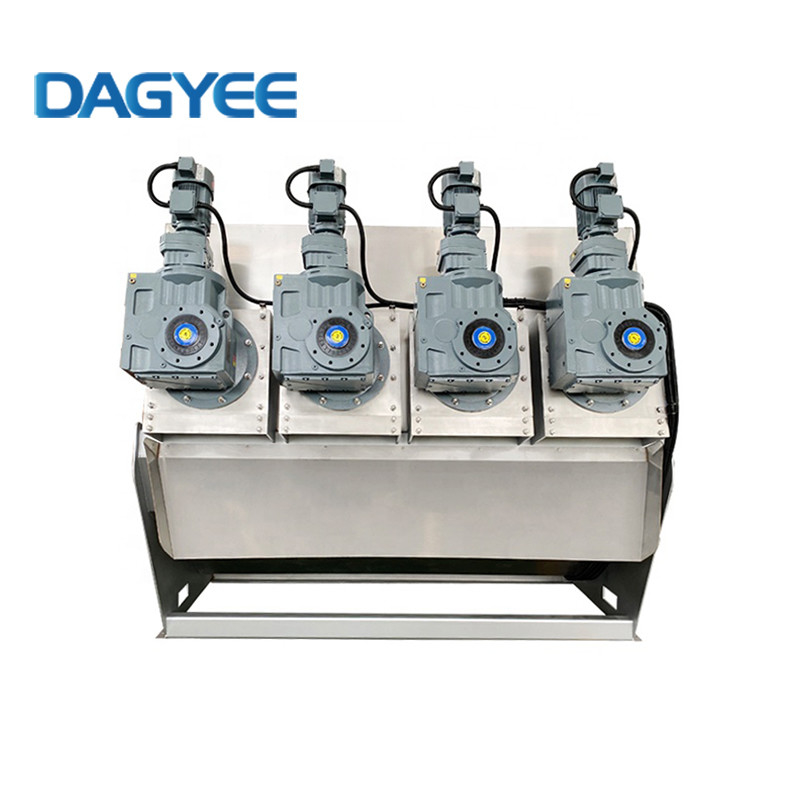

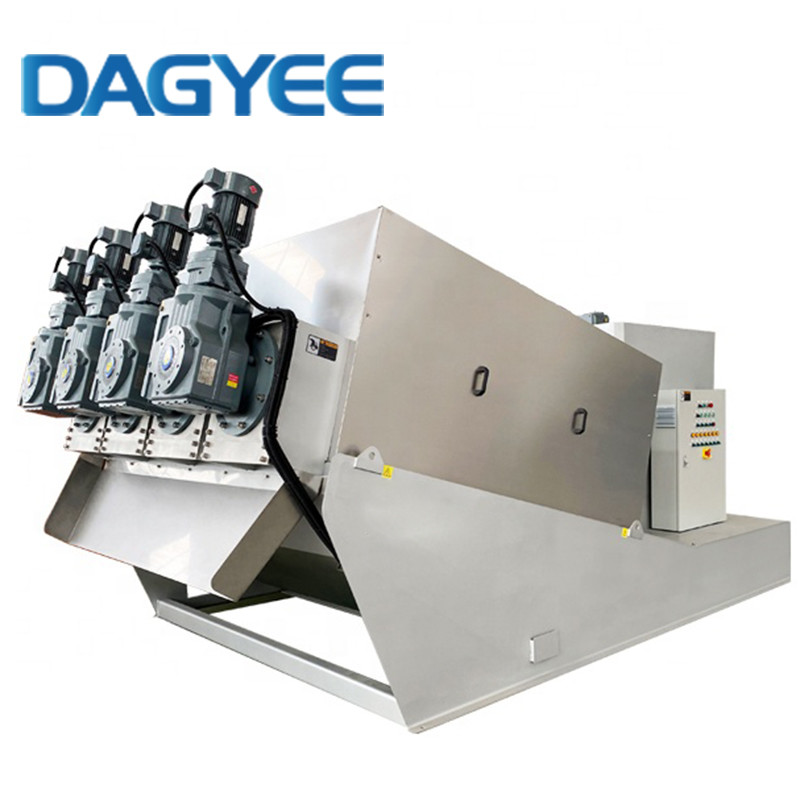

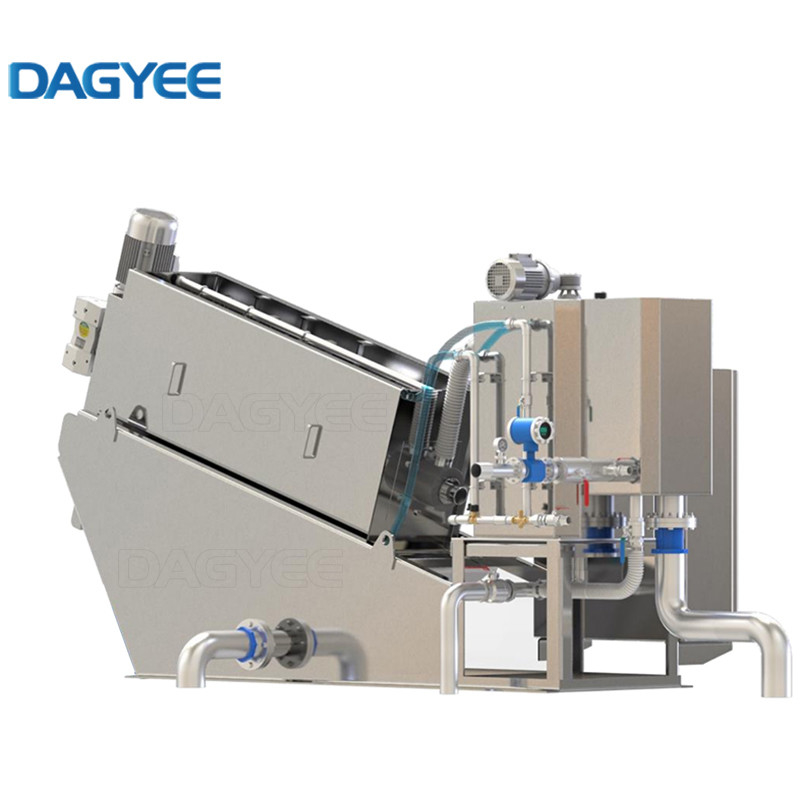

Polymer Filters Sludge Dewatering Press Wastewater Sludge Screw Press
Sludge dewatering equipment is not intended to treat the sludge or liquid but; it only separates the liquid components & solid components so it will get easier & cost effective to handle the separate phases of the disposal. Once the final sludge has been dewatered, then liquid is treated in ETP/STP & solid sludge is disposed.
The main purpose of Sludge dewatering machine is to minimize the handling and disposal. Sludge dewatering press is the most cost effective method of dewatering, and hence helps to sustain the environmental objectives of company.
Screw Press Dehydrator Features
Screw Press Dehydrator Technical Table
|
Model |
DL303 |
|
DS capacity kg/h |
90-150 kg/h |
|
Sludge capacity m3/h(2-50g/L) |
3-45 |
|
Spiral diameter mm |
￠310*3 |
|
Discharge Distance mm |
495 |
|
Size L*W*H mm |
3605*1690*1600 |
|
Net.Kg |
1520 |
|
Run Kg |
3080 |
|
Power Kw |
1.86 |
|
Washing Q L/h |
120 |
Screw Press Dehydrator Application
All range of industries ETP & STP
Faecal Sludge management
Primary sludge and biological sludge dewatering
Wastewater treatment plants – New / Existing
