| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT200 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | Steel Bracket, 304 316 | Net Weight: | 250 Kg |
| Dosing Operation: | Automatic Delivery | Application: | Chemical Preparation |
| Feature: | Automatic Polymers Making | Package: | Plastic & Wood |

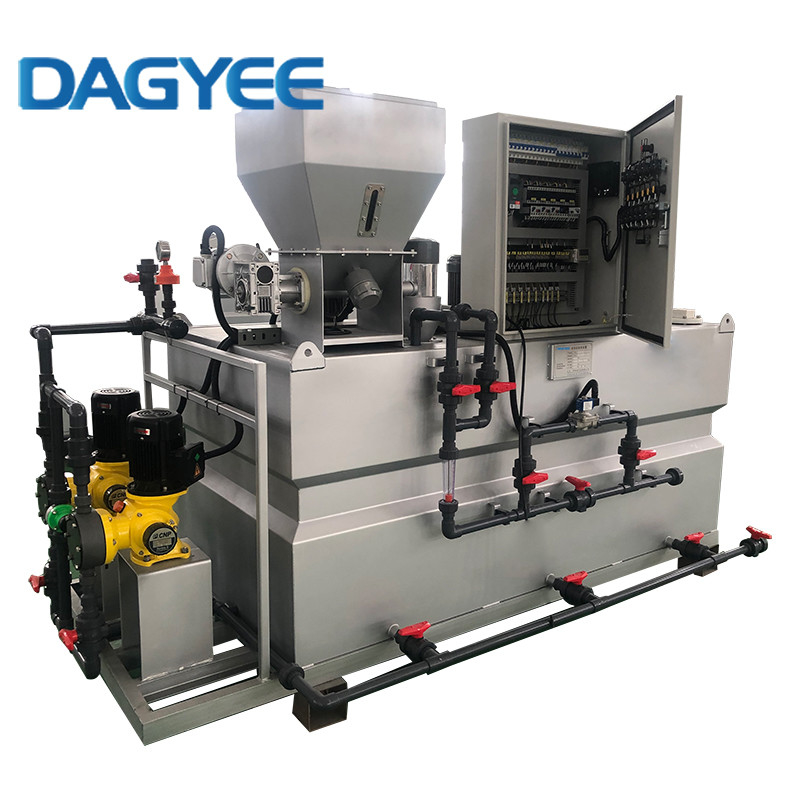

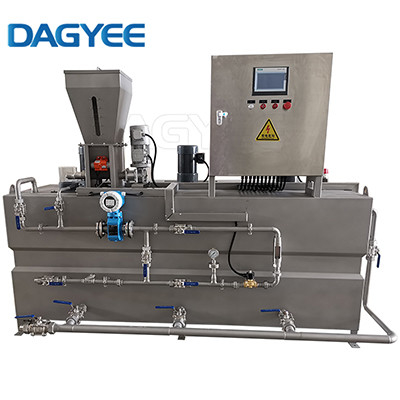

Dagyee DT200 SUS316 Chemical Dilution Control Systems Polymer Preparation Unit

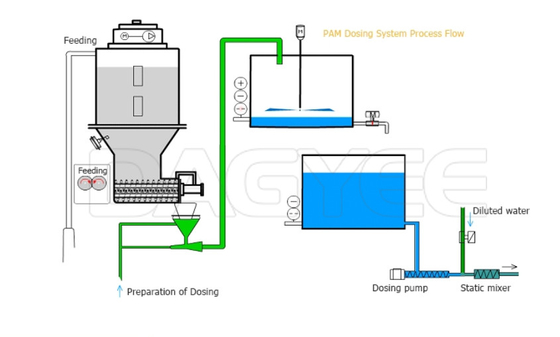

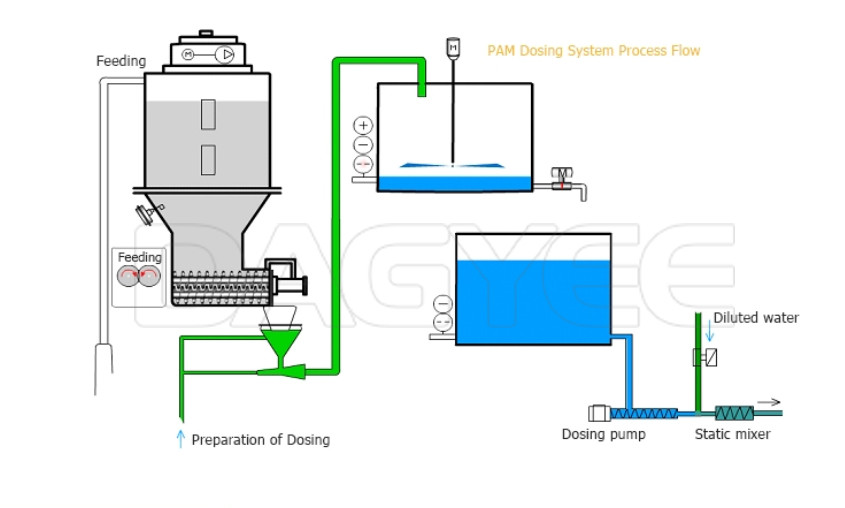

Polymer preparation with three tanks for mixing chemical with water. Dosing port at the top for filling chemical and water; the bottom has a sewage outlet for cleaning solution tank. This dosing device used for dosing PAM (polyacrylamide) which can realize integration of PAM powder feeding, dissolving and dosing. The device integrates both automatic and manual operation.
The Specification Of Dissolver Dosing Device
| Model | DT200 |
|
Capacity(L/h) |
200 |
|
Power(kw) |
0.54 |
|
Powder dosage(kg/h) |
0.20 |
|
Water inlet flow(m3/h) |
0-0.2 |
|
L(mm) |
940 |
|
B(mm) |
520 |
|
H(mm) |
1450 |
|
L1(mm) |
860 |
|
B1(mm) |
470 |
|
Net weight(kg) |
250 |
The Feature Of Dissolver Dosing Device

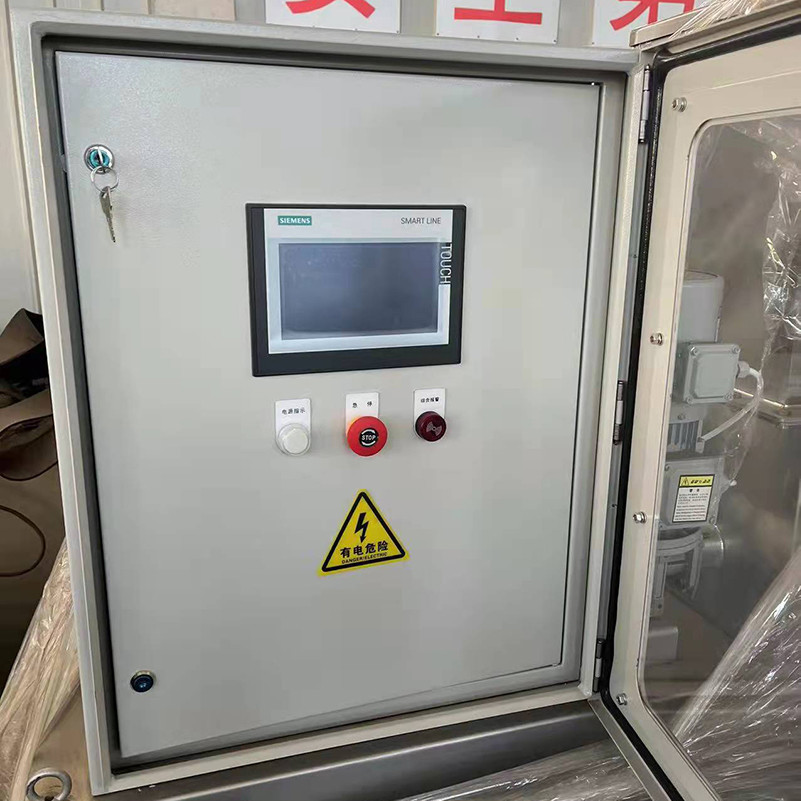

Highly automatic control , KPL control system , easy handle;
High stability, it will give alarm and stop working when it goes fault;
In condition of certain output and continuous working, the chemical ready time is about 1 hour,density about 0.1%-0.3%;
Material: 304 stainless steel;
Compact structure , less room occupied , simple installation;
Special design Multi blade mixer;
Equipped with pre-mixer to help chemical power dissolving, adjustable water flow;
Fixed liquid density, Inlet water matched along with chemical powder.
Complete PAM Batching Metering Systems
Municipal Sewage
Slaughter House
Metallurgical Industry Wastewater
Spraying Sewage
Printing & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage
