| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT430 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | Steel Bracket, 304 316 | Net Weight: | 250 Kg |
| Dosing Operation: | Automatic Delivery | Application: | Chemical Preparation |
| Feature: | Automatic Polymers Making | Package: | Plastic & Wood |

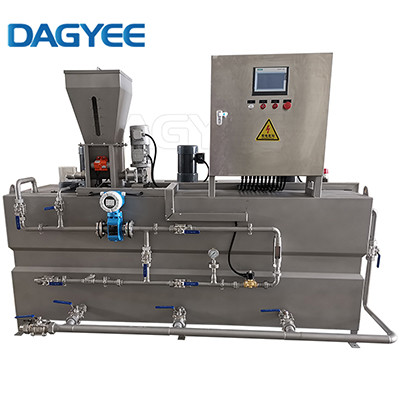

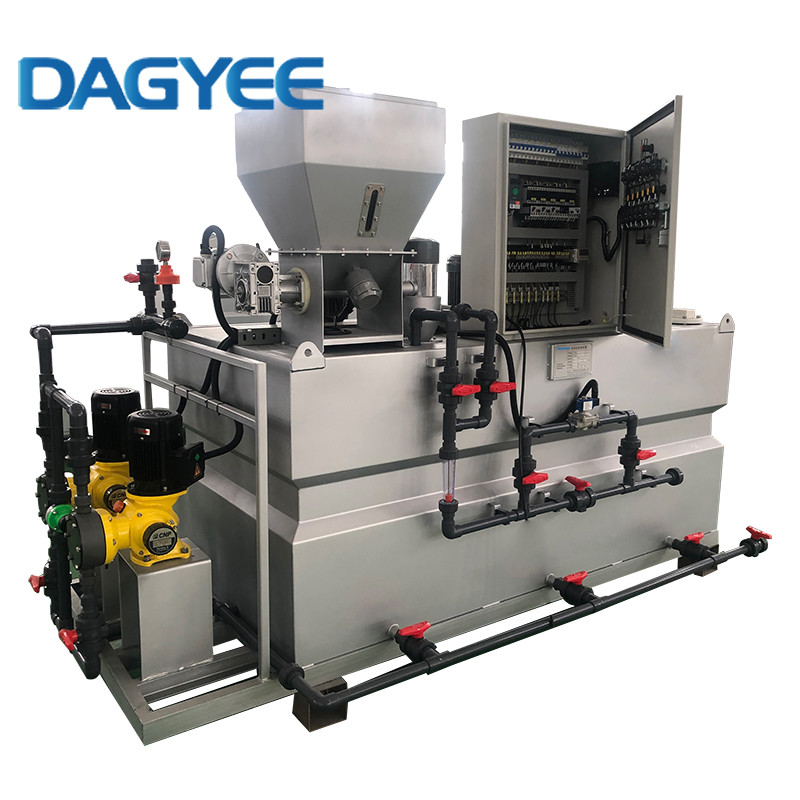

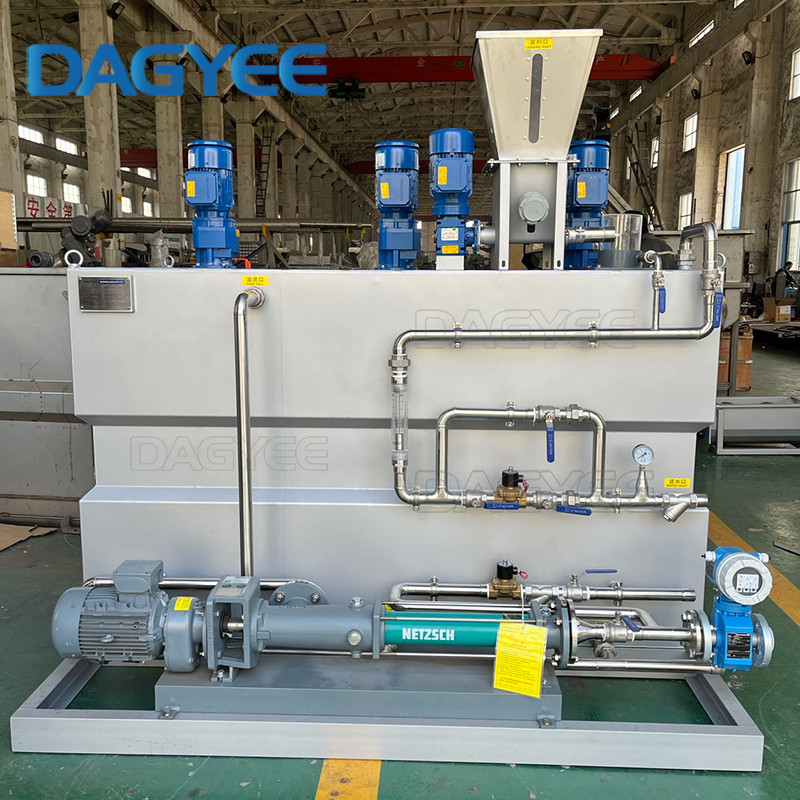

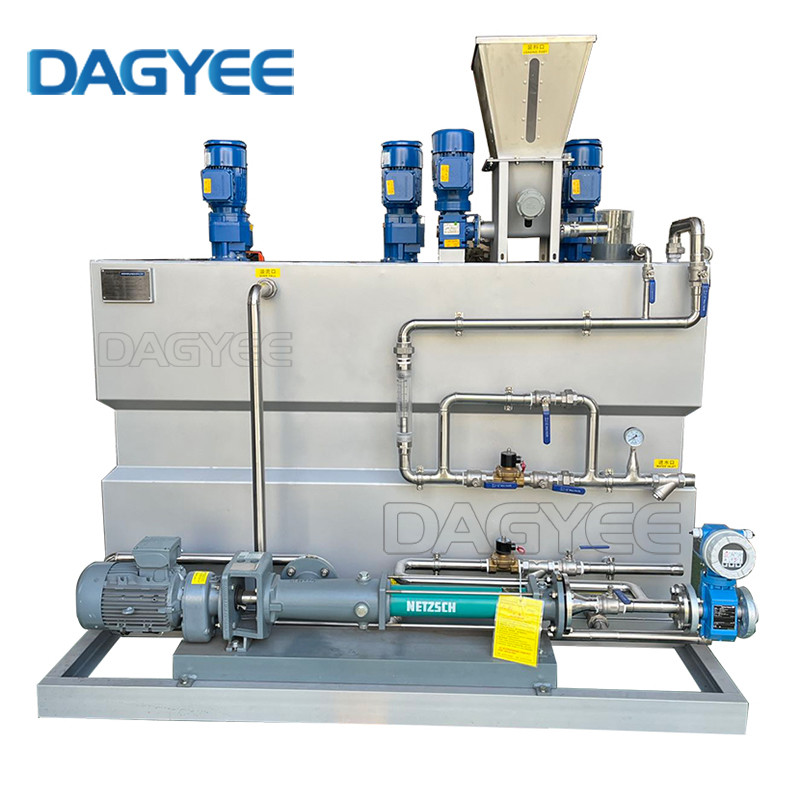

PAM Polymer Preparation Unit Description
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
This device is an automatic and continuous powder dispensing and dosing system.The dry powder enters the premix and water from the screw at the bottom of the hopper for premix, and the wet material enters the mixing tank for dilution and mixing, and is prepared according to the concentration required by the user.
The preparation solution goes from the preparation tank to the curing tank and then into the storage tank. When the liquid level of the storage tank is at a high level, the preparation process will automatically stop, and when the solution drops to a low level, the batching process will automatically start.Agitator is set in both preparation tank and curing tank to ensure the dilution and curing of reagents.The prepared flow rate and concentration can be determined by adjusting the inlet flow rate and the rotating speed of the screw shaft.
Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
PAM Polymer Preparation Unit Model
PAM Polymer Preparation Feature
Automatic batching, dissolving, with one integration design, fully automatic running.
Quantitative medicine dispensing device measured accurately,with stepless transmission drive,It is convenient to adjust the feeding amount,The concentration range of the dispensing medicine is large.
With the functions of liquid level detection, flow control, auxiliary vibration feeding and so on,high level automation.
PAM Polymer Preparation Application
It is especially suitable for municipal sewage treatment plants, industrial waste water treatment and other industries which need to add flocculant solution.
It is widely used in sludge dewatering machine, wastewater treatment and various processes (food, chemical industry, dyeing and finishing, papermaking etc.) When the powder is dissolved and added.
It is suitable for dissolving and adding all kinds of dry powder, granule, flocculant and concentrated liquid powder.
