| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT430 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | Steel Bracket, 304 316 | Net Weight: | 250 Kg |
| Dosing Operation: | Automatic Delivery | Application: | Chemical Preparation |
| Feature: | Automatic Polymers Making | Package: | Plastic & Wood |

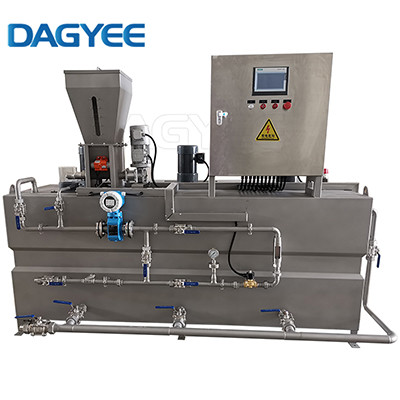

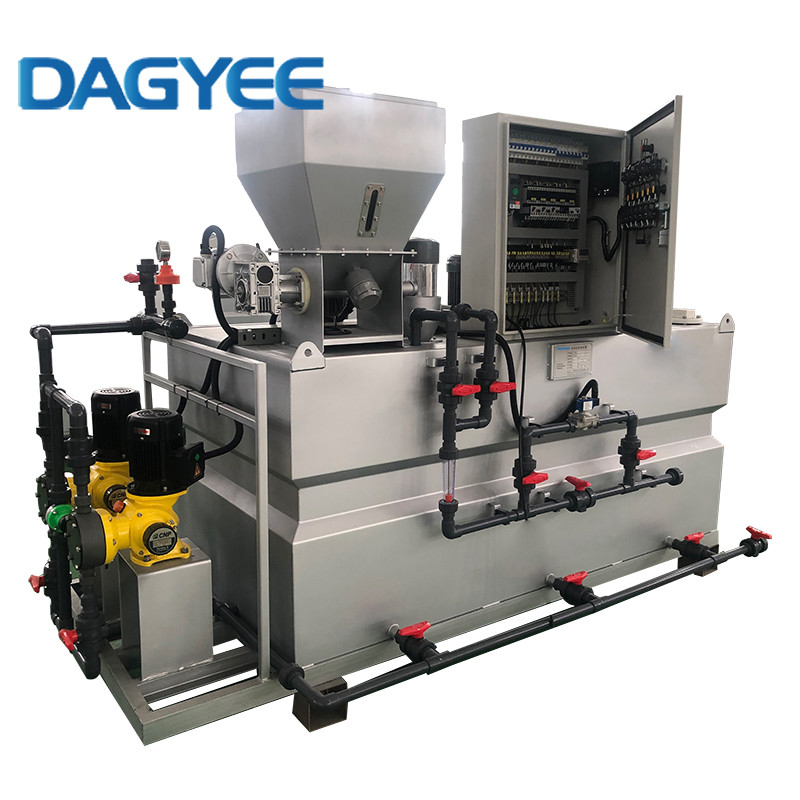

PAM Polymer Preparation Unit Description
This device is flocculating agent automatic continuous preparation and addition system. Dry powder flocculating agent from spiral propeller to instant device premix with clean water, the wet agentia goes into mixing tank for mixing and diluting,prepare it with the concentration requirement; if it is a liquid flocculant, it is directly injected into the preparation tank by the screw pump. If it is a liquid flocculant agent, it is directly injected into the preparation tank by the screw pump. In the preparation process,The water inflow must be relatively stable under the observation of the flowmeter, to ensure that the concentration is no change in whole working process.
Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
PAM Polymer Preparation Unit Model
PAM Polymer Preparation Feature
Optional equipment
Automatic powder hopper loading.
Minimum level probe in the powder hopper.
Stirrer in the batching tank.
Vibrator for hopper.
Prefabricated post-dilution systems.
PAM Polymer Preparation Application
It is especially suitable for municipal sewage treatment plants, industrial waste water treatment and other industries which need to add flocculant solution.
It is widely used in sludge dewatering machine, wastewater treatment and various processes (food, chemical industry, dyeing and finishing, papermaking etc.) When the powder is dissolved and added.
It is suitable for dissolving and adding all kinds of dry powder, granule, flocculant and concentrated liquid powder.
