| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO |
| Model Number: | LW450-1800 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate with buyers |
| Packaging Details: | Decanter Centrifuge 2300*700*1300 Standard wooden box, container |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 set per month |
| Keywords: | Alumina Decanter Centrifuge | Material: | 304 316L |
|---|---|---|---|
| Capacity:: | 5-20 M3/h | Application: | Processing Sludge Dewatering WWTP |

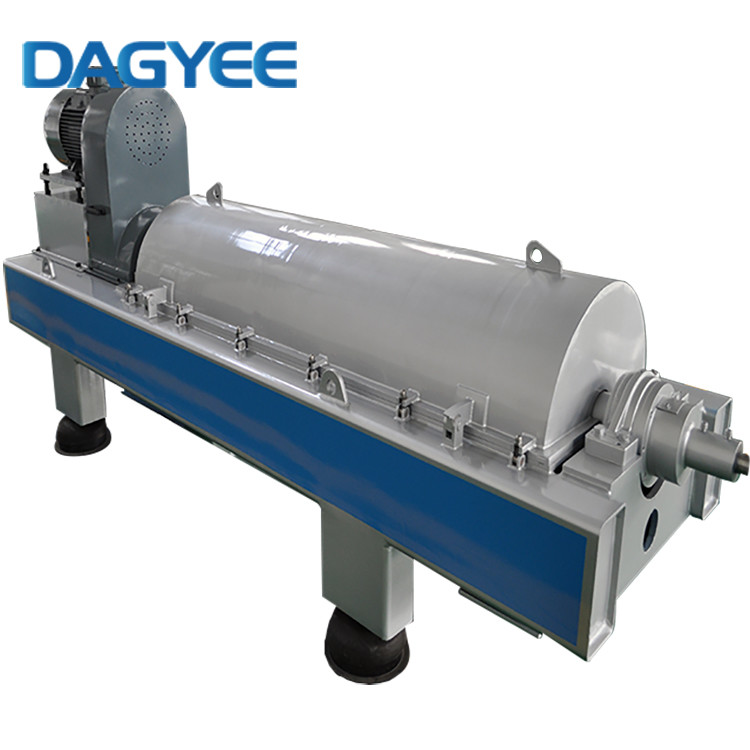

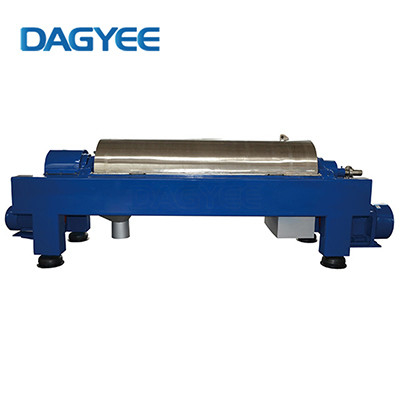

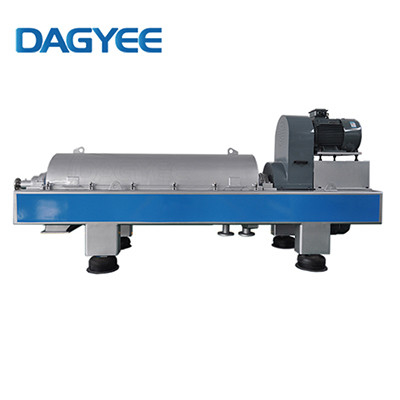

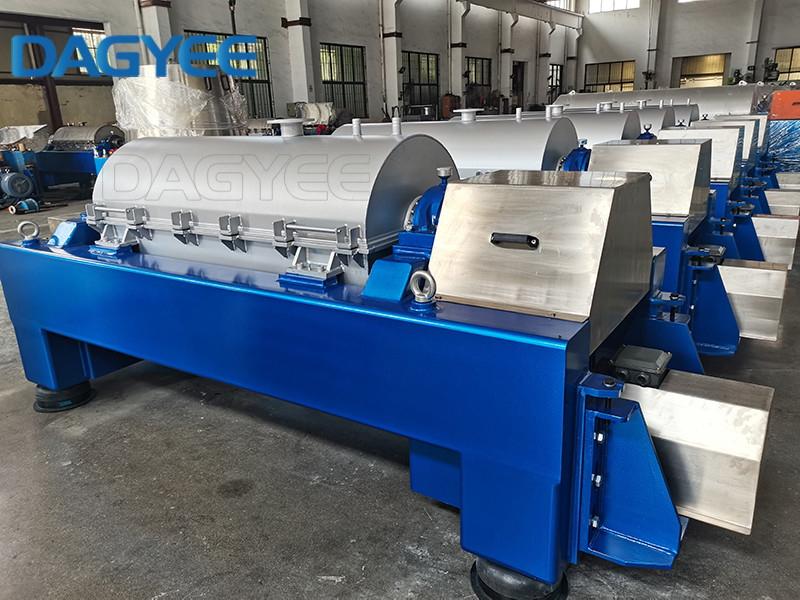

2 Phase Decanter Centrifuges Description
Decanters with slow rotation speed are normally based on horizontal separation technology. Decanters ensure optimum separation efficiency in the case of suspensions with a very high proportion of solids. They are also used for the extraction of constituents from liquids and for concentrating, dewatering and classifying solids.
2 Phase Decanter Centrifuges Model
|
Model |
Drum diameter mm |
Length mm |
Maximum speed rpm |
Hightest separation factor g |
Mixture capacity m3/h |
Motor Power Kw |
|
LW250-900 |
250 |
900 |
5000 |
3500 |
0.5-3 |
11/5.5 |
|
LW350-1500 |
350 |
1500 |
3800 |
2850 |
1-5 |
18.5/5.5 |
|
LW400-1200 |
400 |
1200 |
3400 |
2581 |
1-8 |
22/7.5 |
|
LW400-1600 |
400 |
1600 |
3400 |
2581 |
2-10 |
22/7.5 |
|
LW400-1800 |
400 |
1800 |
3400 |
2581 |
2-12 |
22/7.5 |
|
LW450-1800 |
450 |
1800 |
3200 |
2572 |
5-20 |
30/7.5 |
|
LW450-2000 |
450 |
2000 |
3200 |
2572 |
5-25 |
30/7.5 |
|
LW530-2280 |
530 |
2280 |
2800 |
2350 |
10-50 |
45/15 |
|
LW600-2400 |
600 |
2400 |
2600 |
2265 |
15-65 |
55/18.5 |
|
LW650-2600 |
650 |
2600 |
2400 |
2100 |
20-80 |
55/90 |
|
LW720-2500 |
720 |
2500 |
2200 |
1950 |
25-90 |
75/90 |
|
LW800-2560 |
800 |
2560 |
2000 |
1800 |
30-100 |
90/132 |
|
LW800-3200 |
800 |
3200 |
2000 |
1800 |
30-110 |
90/132 |
|
LW900-3200 |
800 |
3200 |
1800 |
1650 |
30-150 |
132/200 |
2 Phase Decanter Centrifuges Technical
All contact parts can be made by SS304/SS316L/Duplex Steel 2205 Automatic adjustment of differential speed via VFD,Siemens PLC Spiral : Surfacing welding tungsten carbide grinding
Two motor drive
Approximately 80 to 90% of the oil is recovered
Low labor costs due to continuous and automatic operation
Highest g-force for higher solids output
Belts for both primary motor and secondary
NSK/SKF Bearing
2 Phase Decanter Centrifuges Features
Continuous working,spiral discharging,high capacity.
Controlled by two motors,rovolving drum can be adjustable two stage separately.
Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.
Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains.
2 Phase Decanter Centrifuges Application
Vegetable oil
Citric acid
Waste oil purification
Washing water purification
Distiller's grains
Animal fat
Blood meal
Power plant sludge
Printing and dyeing sludge
