| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DLS200 |
| Minimum Order Quantity: | 1 set |
| Price: | 999-9999 |
| Packaging Details: | Wooden packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
| Material: | Q345/SS304/SS316L | Keywords: | Customized Shaftless Screw Conveyor |
|---|---|---|---|
| Drive: | 0.55 KW | Capacities: | 0.9-2m³/h |
Shaftless Screw Conveyor Description
Since there is no center pipe to transmit torque, the shaftless spiral is designed to handle the full-motor torque load of the drive unit. Additionally, since the shaftless spiral has no center pipe for support, replaceable trough-conforming liners are used to evenly support the entire length of the rotating spiral.
Shaftless Screw Conveyor Structure

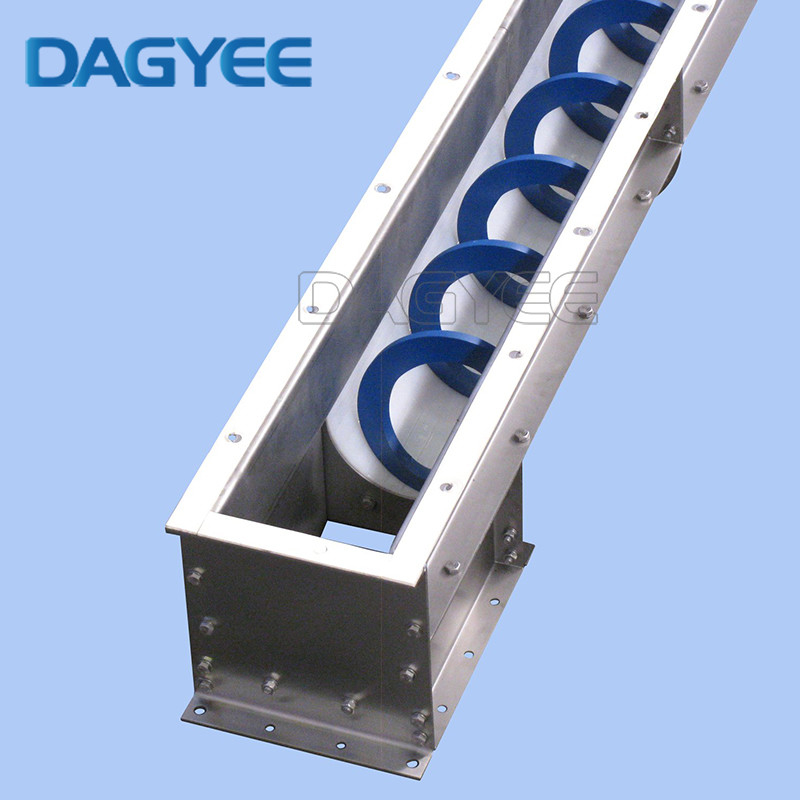

Shaftless screw conveyor is mainly composed of shaftless screw, U-shaped spiral groove, cover plate, lining plate, inlet and outlet, discharge outlet and driving device.
Shaftless Screw Conveyor Type

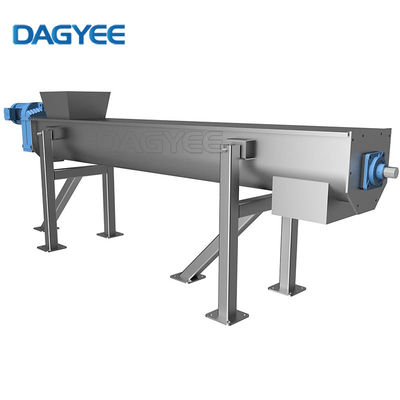

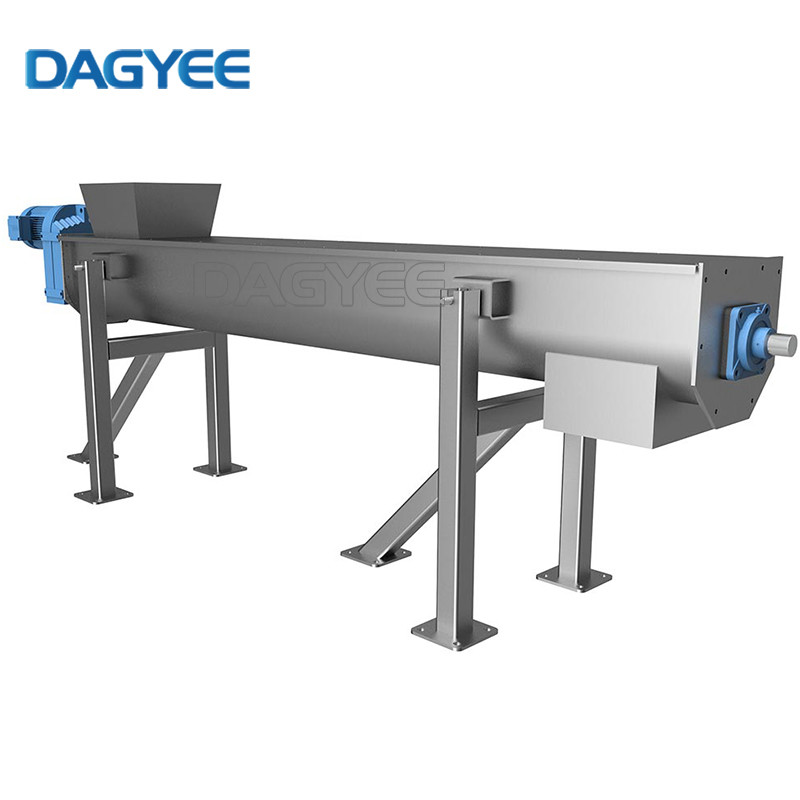

Single shaftless screw conveyor screw shaft, without mixing and stirring functions.
Twin shaftless screw conveyor It adopts double screw blades with mixing and stirring functions. The two screw blades rotate in opposite directions to avoid material blocking. The conveying capacity is 1.5-2 times that of a single shaft.

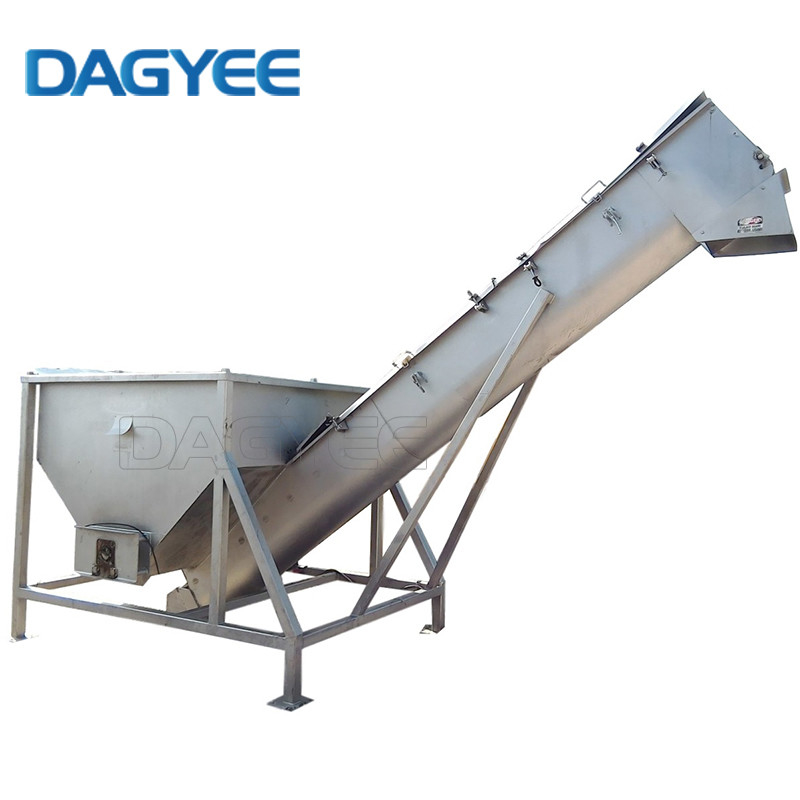

Inclined shaftless screw conveyor mainly used for conveying materials at a small angle of 25°.
Shaftless Screw Conveyor Technical
|
DLS |
Capacities |
Length |
Speed |
Size |
||||
|
00 |
150 |
300 |
(m) |
(r/min) |
A(mm) |
B(mm) |
B0(mm) |
|
|
DLS200 |
2 |
1.4 |
0.9 |
10 |
20 |
200 |
310 |
270 |
|
DLS260 |
3.5 |
2.5 |
1.5 |
10 |
20 |
260 |
370 |
340 |
|
DLS320 |
9 |
6.5 |
4.1 |
15 |
20 |
320 |
430 |
400 |
|
DLS355 |
11.5 |
7.8 |
5.5 |
20 |
20 |
355 |
465 |
435 |
|
DLS420 |
15 |
11 |
7.5 |
20 |
20 |
420 |
530 |
500 |
|
DLS500 |
30 |
25 |
21 |
20 |
20 |
500 |
560 |
680 |
Shaftless Screw Conveyor Benefits
Shaft-less structure, less contact with the residue, low friction, the extrusion efficiency can be improved. No clogging and no winding.
Made of stainless steel with high strength, good corrosion resistance and long service life.
Driving device adopts axle direct drive mode, which is stable, reliable, and energy saving.
Outlet is assembled with a spring baffle to increase the extrusion pressure and increase the dehydration rate.
Except for the inlet and outlet, the rest structure is closed, and the environment is clean and sanitary.
Shaftless Screw Conveyors VS Shafted Screw Conveyors
Conveying materials
Shaftless is suitable for conveying sludge, household garbage, grid slag and other viscous, entangled materials and massive materials. It is precisely because the design of the shaftless screw conveyor without a central axis has great advantages for these materials.
The shaft screw conveyor is suitable for conveying materials: powder, small particle materials, etc. If you convey viscous
materials such as sludge, it will stick to the inner tube shaft and blades, and the conveying block materials are easy to jam.
Conveying form
Shaftless screw conveyor is suitable for: horizontal conveying, and the large inclination angle should not exceed 20°, according to the actual usage.
The shaft screw conveyor is suitable for: horizontal conveying, inclined conveying, and vertical conveying.
Conveying capacity
Due to the use of shaftless, the single-machine conveying length of the shaftless screw conveyor can reach 60 meters, and the conveying capacity is 1.5 times that of the traditional shafted screw conveyor with the same diameter.
Shaftless Screw Conveyors Application
Shaftless helical (screw) conveyors are designed for handling difficult and heterogeneous materials such as municipal solid waste, screening and floating matter substances, dehydration, thickening, conditioning sludge, packaged foods, creams or pastes, and waste from meat, fish, fruit and vegetable processing.
Main Application areas are: wastewater treatment, sugar mill waste, fish industry, solid waste treatment, fruit and vegetable processing, beverage industry, pulp and paper, chemicals, food industry, meat processing plants, slaughterhouses, restaurants, canteens, general catering.
