| Place of Origin: | China |
|---|---|
| Brand Name: | dagyee |
| Certification: | M.2020.206.C9739 |
| Model Number: | DLC-050 |
| Minimum Order Quantity: | 1 SET |
| Price: | CUSTOM |
| Packaging Details: | Wooden case, standard container, can be specified |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10 SET |
| Material: | Carbon Steel Or Stainless Steel 304/316 | MOQ: | 1 Set |
|---|---|---|---|
| Colour: | Customizable |

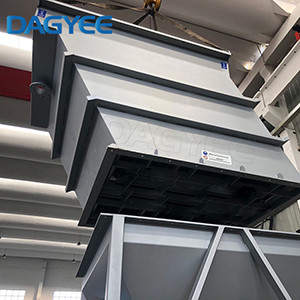

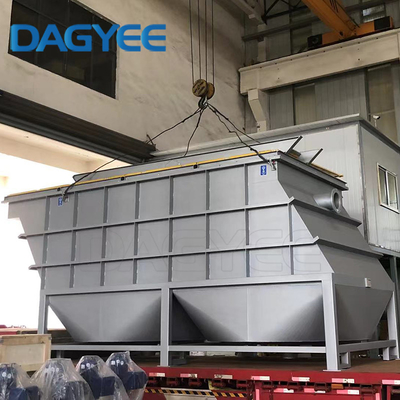

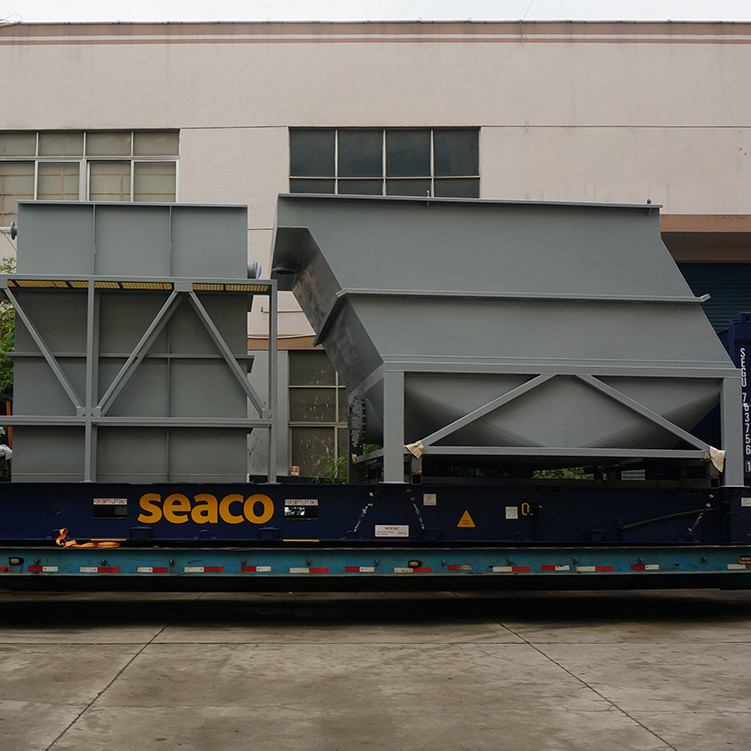

Lamella Separator Description
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
Available Options
Lamella Separator Model
DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper, Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
|
DLC |
Capacities |
Piping Connections() |
Physical Dimensions(m) |
|||||
|
Inlet(a) |
Effluent(b) |
Sludge(c) |
Backwash(d) |
L |
W |
H |
||
|
DLC- |
5 |
80 |
80 |
50 |
50 |
2.55 |
1.6 |
2.9 |
|
DLC- |
10 |
100 |
100 |
50 |
50 |
3.35 |
1.82 |
3 |
|
DLC- |
15 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
20 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
30 |
150 |
150 |
50 |
50 |
4.2 |
2.22 |
3 |
|
DLC- |
40 |
150 |
150 |
50 |
50 |
4 |
2.8 |
3 |
|
DLC- |
50 |
200 |
200 |
50 |
50 |
4.65 |
2.82 |
3 |
|
DLC- |
60 |
200 |
200 |
50 |
50 |
4.7 |
3 |
3 |
|
DLC- |
70 |
250 |
200 |
50 |
50 |
6.4 |
2.6 |
3 |
|
DLC- |
80 |
250 |
200 |
50 |
50 |
6.8 |
2.82 |
3 |
|
DLC- |
100 |
250 |
250 |
50 |
50 |
7.05 |
3.02 |
3 |
Lamella Separator Advantages
More compact size than the classic silo
Increased performance in terms of lt./min. and water clarity
No maintenance required thanks to the innovative self-cleaning system
Eliminates the expensive construction of settling pits
Reduces and optimizes the cost of mud disposal
Structure in galvanized Iron
Lamella Separator Applications
Fly Ash Waste
Flue Gas Desulfurization (FGD) Waste
Clarification
Solids Recovery
Cooling Tower Blowdown
Iron Removal
Municipal Water Treatment
Semiconductor Process Waste
Whitewater (Pulp & Paper)
Groundwater Remediation
Potable Water Clarification
Landfill Leachate
Boiler Waste Treatment
